Procab MCR109 9x0,22 Multicore Sinyal Kablosu
Procab MCR109 9x0,22 Multicore Sinyal Kablosu

Procab MCR109 9x0,22 Multicore Sinyal Kablosu

Marka : Procab
İndirim Oranı : %36 İndirim
Fiyat : $10.16(KDV Dahil)
İndirimli : $6.47(KDV Dahil)

Orijinal Ürün - Hızlı Kargo - Türkiye Distribütör Garantisi

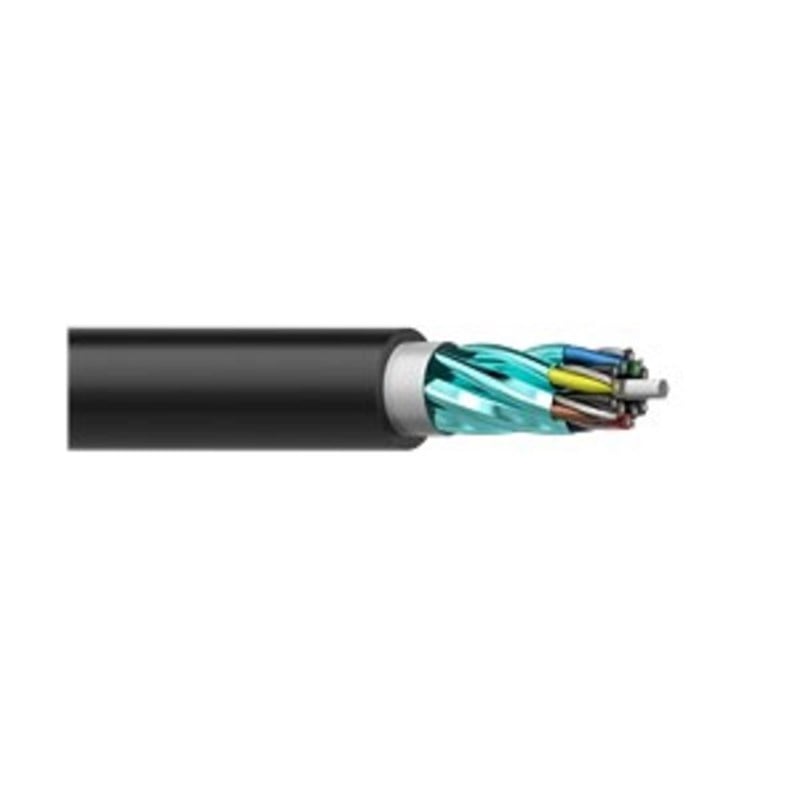

Procab MCR109 9x0,22 Multicore Sinyal Kablosu





PHYSICAL CHARACTERISTICS

Type of cable

: 24 AWG Stereo Signal Cable

Inner conductor



Material

: TC 7 x 0.20 mm (Ø) (OFC)

Section

: 0.22 mm²

Number of Conductors

: 2 (9 pairs) 9 x 2

Insulation Material

: HDPE 1.2 mm (Ø)

Conductor Twisting

: Yes

Shielding (Aluminium Foil)

: Al-mylar, 100% coverage - 25% Overlap

Drain Wire

: BC 7 x 0.20 mm (Ø) (OFC)

Filling

: Cotton Yarn

Separator

: Al-Mylar



: Cotton Paper

Outer Jacket



Material

: Durable PVC 12 mm (Ø)

Colours

: Black

ELECTRICAL CHARACTERISTICS

Lead Resistance

: 13.75 Ω / 100 m

Capacitance



Cond / Cond

: 25 pF / m @ 1 kHz

Cond / Shield

: 74 pF / m @ 1 kHz

Cable Crosstalk

: Min. 73.3 dB / 100 m
