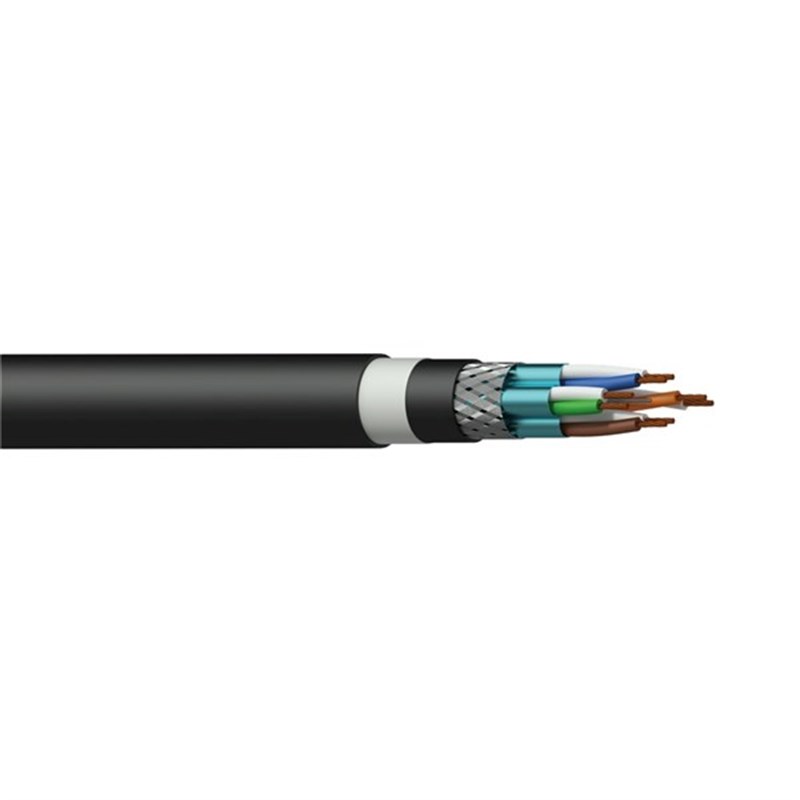

Procab BCT65S/1 HighFlex™ CAT6A U S/FTP Ağ Kablosu
Procab BCT65S/1 HighFlex™ CAT6A U S/FTP Ağ Kablosu

Procab BCT65S/1 HighFlex™ CAT6A U S/FTP Ağ Kablosu

Marka : Procab
İndirim Oranı : %36 İndirim
Fiyat : $666.73(KDV Dahil)
İndirimli : $424.88(KDV Dahil)

Orijinal Ürün - Hızlı Kargo - Türkiye Distribütör Garantisi

Procab BCT65S/1 HighFlex™ CAT6A U S/FTP Ağ Kablosu



PHYSICAL CHARACTERISTICS

Type of cable

: S/FTP CAT6 Networking Cable

Inner conductor



Material

: BC 7 x 0.2 mm (Ø) (OFC)

Section

: 0.22 mm²

American Wire Gauge

: 24 AWG

Number of Conductors

: 8 (4 pairs)

Insulation Material

: Foamed PE 1.32 mm Ø

Colours

: Green / White & Green ; Blue / White & Blue ; Orange / White & Orange ; Brown / White & Brown

Conductor Twisting

: Lay length ≤ 30 mm

Shielding Aluminium Foil

: Al-mylar, 100% coverage - 25% Overlap

Separator

: Non woven foil

Overall Shielding Braiding

: TC 10 x 12 x 0.08 mm (Ø) (OFC)

Inner Jacket Material

: Hard PVC

Outer Jacket



Material

: Soft PVC 8.7 mm (Ø)

Colours

: Black

ELECTRICAL CHARACTERISTICS

Dielectric Strength

: 1.5 (KV / 1 min. DC)

Max. Delay / Skew

: 25 (ns / 100 m)

Rated Voltage

: 72 V

Nom. Velocity of Propagation

: 74 %

Characteristic Impedance

: 100 Ω ± 15 Ω

Max. Conductor



DC Resistance

: 95 (Ω / Km)

Max. Conductor

: 2 %

Nom. Mutual Capacitance

: ≤ 5.6 (nF / 100 m)

Pair to Ground Capacitance Unbalance

: ≤ 160 (nF / 100 m)
