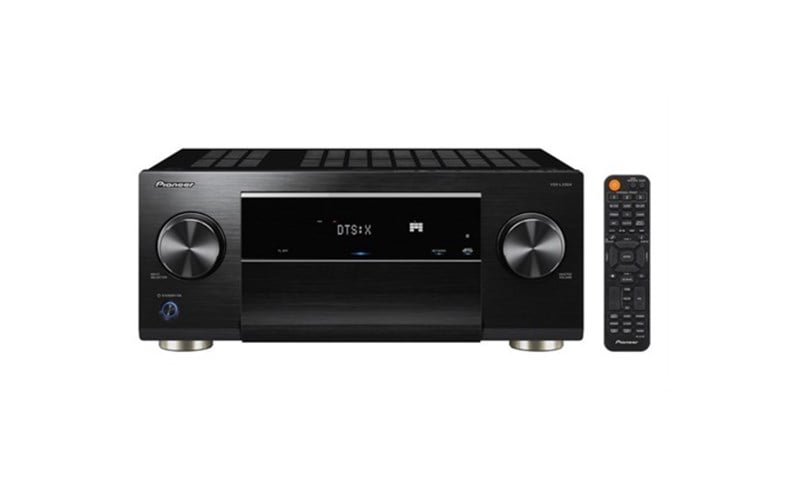

Pioneer VSX-LX504 9 Kanal 215W 4K A/V Video Anfisi
Pioneer VSX-LX504 9 Kanal 215W 4K A/V Video Anfisi
Pioneer VSX-LX504 9 Kanal 215W 4K A/V Video Anfisi
Pioneer VSX-LX504 9 Kanal 215W 4K A/V Video Anfisi
Pioneer VSX-LX504 9 Kanal 215W 4K A/V Video Anfisi
Pioneer VSX-LX504 9 Kanal 215W 4K A/V Video Anfisi

Pioneer VSX-LX504 9 Kanal 215W 4K A/V Video Anfisi

Fiyat : $0.00(KDV Dahil)

9.2-channel receiver with 9x215 Watt, 6 HDMI Inputs (4K), IMAX Enhanced, Dolby Atmos, DTS:X, Dolby Atmos Height Virtualizer, Works with Sonos, Zone 2/3, AirPlay 2, Bluetooth and Chromecast built-in


Pioneer VSX-LX504 9 Kanal 215W 4K A/V Video Anfisi



The VSX-LX504 creates the soundscape of IMAX® Enhanced*1 and Dolby Atmos®/DTS:X ideally calibrated with Advanced MCACC, and even provides similar sound effects with Dolby Atmos Height Virtualizer*1 without height or surround speakers. Enjoy spectacles from next generation video standards with support for HDCP 2.2, or stream songs across the house with SONOS system, FlareConnect™, Chromecast built-in, DTS Play-Fi®, and Apple AirPlay 2. Other features include Powered Zone 2/Zone 3 Audio, up to 11.2 MHz DSD direct playback, and 2 HDMI outputs.

Audio Features
Channels: 9
Amplification Type: Direct Energy
215 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
180 W/ch (8 ohms,1 kHz, THD 1 %, 1ch Driven IEC)
IMAX Enhanced*1
Dolby Atmos®, Dolby Surround Upmixer
DTS:X®, DTS Neural:X® Upmixer
Reflex Optimizer
Dolby Atmos Height Virtualizer*1
Dolby® TrueHD, Dolby Digital Plus
DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express
DSD Direct Playback via Network/USB (11.2, 5.6, 2.8 MHz/2 ch)
DSD Disc (SACD) Playback via HDMI (2.8 MHz/2 ch, 5.1 ch)
Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureus™ floating-point DSP (TI)
384 kHz/32-bit D/A Conversion with AK4458 (AKM) & PCM5101A (TI)
Enhanced Audio Return Channel (eARC) on HDMI
Advanced MCACC Auto Room Tuning
• Auto Phase Control Plus
• Subwoofer EQ
• Multi-point Standing Wave Control
Advanced Sound Retriever (2ch)
Advanced Surround Modes
• Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance

Video Features
Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)*2
HDR10, HLG and BT.2020 Compliant Wide Colour Gamut Signal Pass-through
Dolby Vision™ Compatible
Ultra HD Upscaling (1080p to 4K)
3D Ready (Blu-ray Disc™, Broadcast, and Games)
Deep Colour (36-bit), “x.v. Colour”

Network Features
FlareConnect™ for Multi-room Audio
Chromecast built-in*3 and Works with the Google Assistant
DTS Play-Fi with Pioneer Music Control App
Apple AirPlay 2
Works with SONOS
Amazon Music, Spotify, TIDAL, and Deezer Hi-Fi Music-Streaming Services Ready*4
Internet Radio with TuneIn
Hi-Res Audio File Playback via USB/Network
• Up to 192 kHz/24-bit ALAC*5, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSD*6

Operating Features
Personal Preset
Dialog Enhancement
Dual Band (5 GHz/2.4 GHz) 802.11ac Compliant Wi-Fi® Built-in
Bluetooth® Wireless Technology (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in
Pioneer Remote App*7 Ready for Multi-room Entertainment Control and Network Streaming
User-Friendly GUI with System Setup Menu
On-Screen Information for Audio/Video Status
PC Setup
Auto Power Off in HDMI Standby Through
AM/FM Tuner 40 Presets
Sleep Timer
User-Friendly Simple Remote Control

Connections Front Terminals
HDMI 1 In
USB 1 In for USB Drive
MCACC Setup MIC In
Phones 1 Out

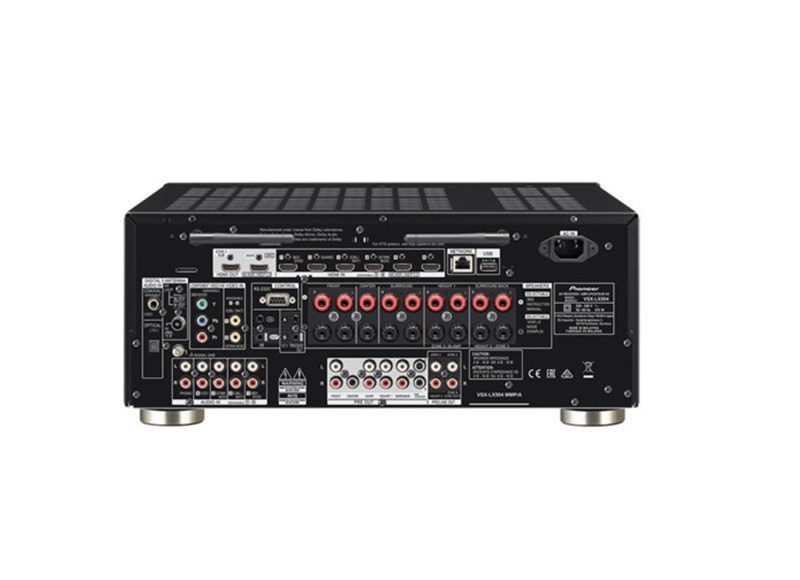

Rear Terminals
HDMI 6 In (4 Assignable)
HDMI 2 Out (1 for MAIN, 1 for SUB)
Ethernet 1 In
USB 1 In for USB Drive
AV (Component) 1 In (Assignable)
AV (Composite) 2 In (Assignable)
Audio 1 In (Assignable)
Phono (MM) 1 In
Digital Coaxial 1 In (Assignable)
Digital Optical 1 In (Assignable)
FRONT, CENTER, SURROUND, HEIGHT 1, SURROUND BACK, SUBWOOFER x 2 Pre Out
ZONE B Line Out for Wireless Headphones
ZONE 2 Pre/Line Out, ZONE 3/HEIGHT 2 Pre/Line Out
Speaker 11ch Out (FRONT, CENTER, SURROUND, HEIGHT 1/Bi-AMP, SURROUND BACK/HEIGHT 2/ZONE 3, ZONE 2)
IR 1 In/1 Out
12 V Trigger 2 Out
RS-232C
FM/AM Antenna

Dimensions
Dimensions (W x H x D): 435 x 185 x 386 mm
Weight: 13 kg
