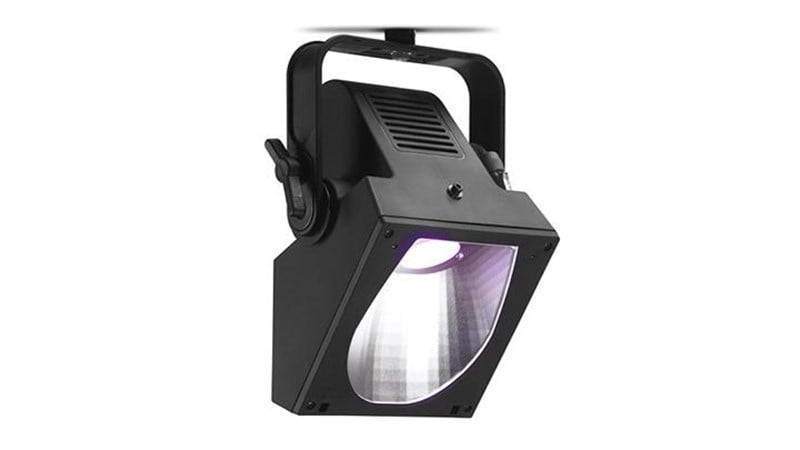

Philips PLcyc1 Asimetrik Led 42°-38° 140 W RGBW Profil Spot
DownloadsPLCYC1 MKII LED Luminaire
A breakthrough in cyclorama lighting the PLCYC1 MKII LED Luminaire delivers smooth even cyclorama lighting in a compact lightweight design. Using just 140 watts of power to illuminate drops up to 5 meters high each unit can replace the equivalent of a traditional 4 color 500 watt luminaire. A typical cyc can be powered from a single circuit using our convenient PowerCON cabling system for power along with standard DMX cables.
Delivers the performance of a 500 watt cyclight with a maximum power consumption of 140 watts with a smooth even field for cycloramas up to 5m – 16ft high
Simple spacing system 1.2m - 4ft from cyc surface 1.2m – 4ft on center spacing
Designed for top or floor mounting with kick stand yoke
Infinite color choice from the RGBW engine and supporting color temperature in white
Homogenized fully mixed color output light, no multiple color shadows
50,000 hour life before degradation in light output and quality is expected
Quick selection of Warm White, Cool White, and Daylight
Color presets simplifies matching existing light sources
User defined on board presets states available to record your color composition
Constant color balance down to very low light levels irrespective of intensity setting
DMX512 Input/Output with 8 or 16-bit resolution and a simple 5-channel control
RDM controls and setup of fixture allows device settings to be configured remotely
On-board LCD menu is updated for ease of luminaire set up and addressing
No ultra-violet (wavelengths of less than 400nm) – for UVA, B or C or the Infrared spectrum (wavelengths of more than 775nm)
Luminaire color: black
Electronic universal power supply 100-240VAC
PowerCON In and Through connectors
cETLus listed, C-Tick, and CE marked (IP20 Rated)
