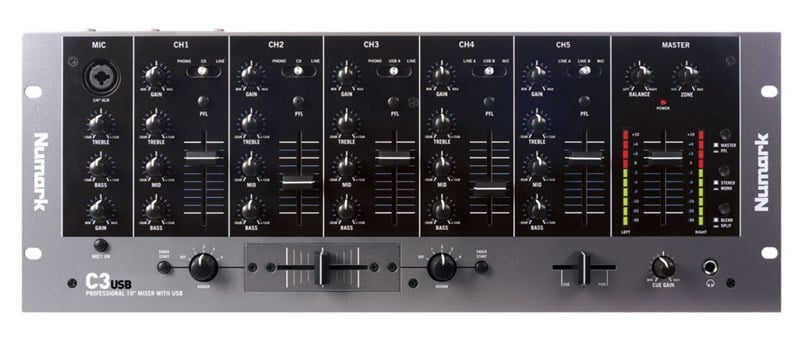

Numark C3USB 5 Kanal Dj Mikser
Five-channel rack DJ mixer
Inputs: three phono (RCA), eight line (RCA), three mic (1/4")

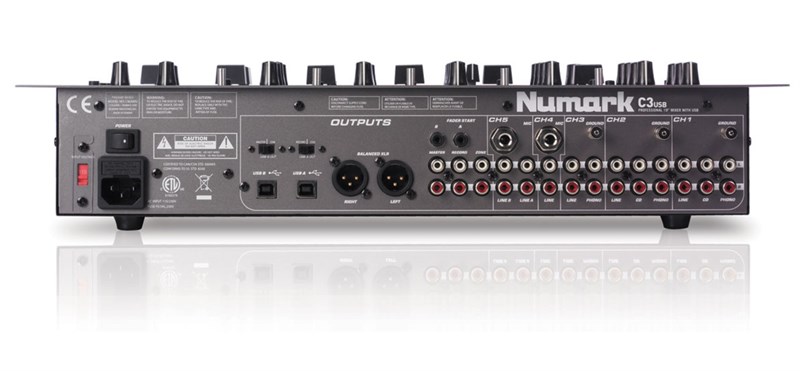

Outputs: Balanced (XLR), Master (RCA), Record (RCA), Zone (RCA), Headphone (1/4" stereo)
Two USB jacks, each assignable to input or output
USB input for connecting computers for audio input
USB output for recording gigs to computer
Three-band EQ each channel
Microphone channel with EQ
Replaceable, assignable crossfader
No software drivers needed for use with Windows XP/Vista or Mac OS X
Works with almost any audio recording software
Class Compliant: this product is immediately compatible with every current and future version of Mac OS X and iOS and with Windows (98SE and up) operating systems.
Inputs:
Line: 10Kohm input impedance; 77mV rms sensitivity for 1.22V output
Mic: 600 ohm input impedance unbalanced; 1mv rms sensitivity for 1.22V output; 70mV rms max input
Phono: 47Kohm input impedance; 1.2mV rms sensitivity @1KHz for 1.22V output
Outputs:
Line: 9V rms max
Headphone: 0.5W into 47 ohm
Distortion: less than 0.01%
Signal to Noise Ratio (maximum output JIS-A weighted):
Line: Better than 98dB
Mic: Better than 86dB
Phono: Better than 81dB
Frequency response:
Line: 20Hz-20KHz
Mic: 20Hz-15KHz
Phono:
EQ (Channel):
Bass: +12/-32dB @60Hz
Middle: +12/-32dB @1.2KHz
Treble: +10/-28dB @15KH
EQ (Mic):
Bass:
Treble:
Power consumption: 11 Watt typical; 14.7 Watt with full headphone output
System requirements for USB functionality:
PC: Windows XP (32-bit) or Vista (32-bit)
Mac: OS X
USB port
