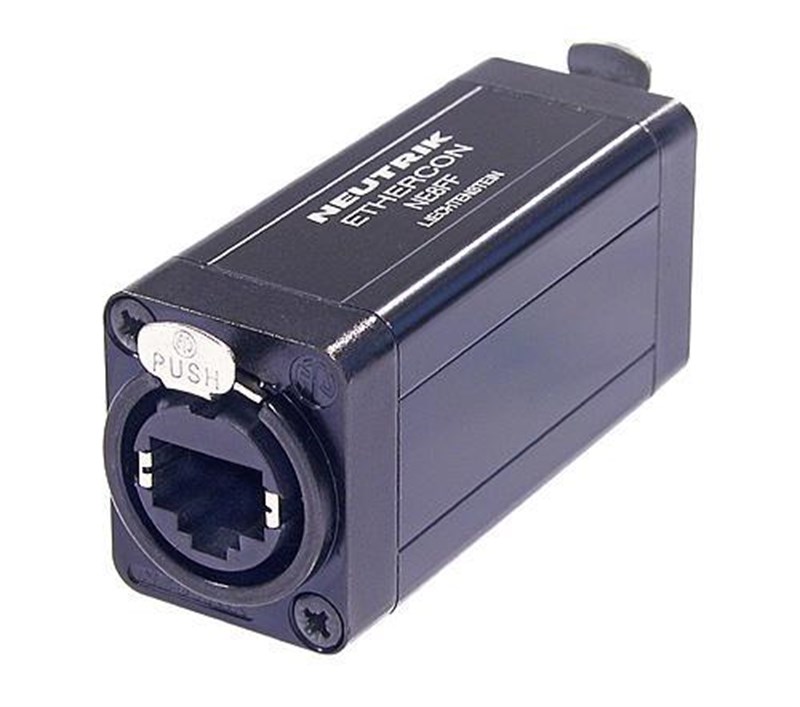

Neutrik NE8FF EtherCON RJ45 Feedthrough Coupler For Cable Extensions
Neutrik NE8FF EtherCON RJ45 Feedthrough Coupler For Cable Extensions
Neutrik NE8FF EtherCON RJ45 Feedthrough Coupler For Cable Extensions

Neutrik NE8FF EtherCON RJ45 Feedthrough Coupler For Cable Extensions

Marka : Neutrik
İndirim Oranı : %36 İndirim
Fiyat : $57.00(KDV Dahil)
İndirimli : $36.48(KDV Dahil)



Neutrik NE8FF EtherCON RJ45 Feedthrough Coupler For Cable Extensions





Product
Title NE8FF
Connection Type Adapter
Gender female
Electrical
Contact resistance < 10 mΩ
Dielectric strength 1 kVdc
Frequencyrange 1 - 100 MHz
Insulation resistance > 0.5 GΩ
Rated current per contact 1,5 A
Rated voltage < 50 V
Standard compliance TIA/EIA 586B, IEC11801
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize
Locking device Latch lock
Material
Contact plating 0.2 µm Au over Ni plating
Contacts Bronze (CuSn8)
Insert PBTP 15 % GR
Shell AlMgSi 0.5, black plated
Strain relief CuZn35Pb2, Tin plated
Environmental
Flammability UL 94 HB
Temperature range -30 °C to +80 °C
