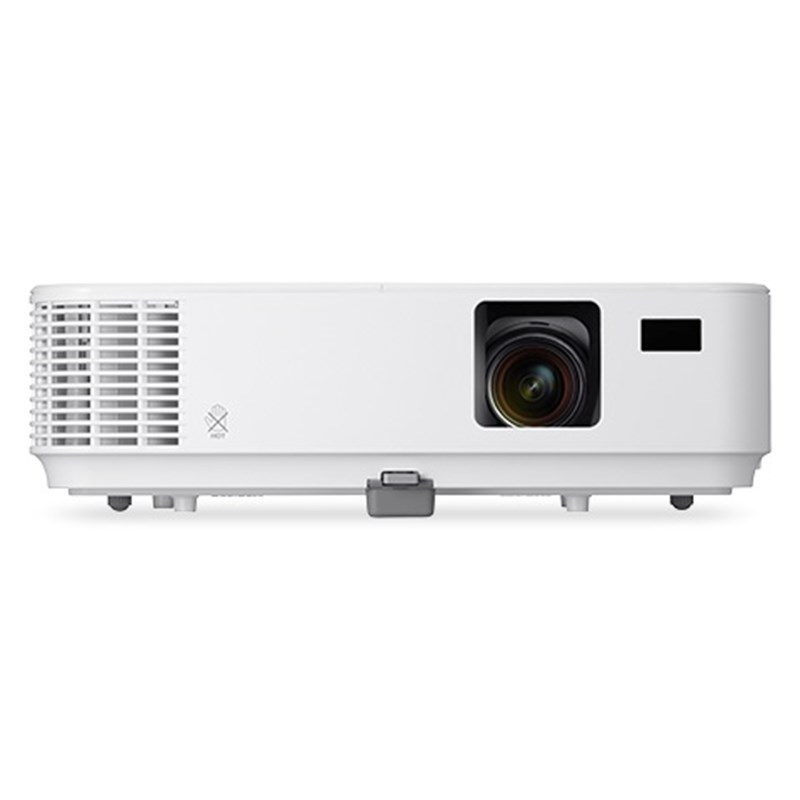

NEC V332W 3300 Lümen Mobile 1280x800 HDMI DLP Projeksiyon
Display
Aspect Ratio 16x10
Native Resolution WXGA 1280x800
Maximum Resolution 1080p 1920 x 1080
Contrast Ratio (typical) 10,000:1 with Dynamic Contrast
Synchronization Range
Horizontal (Analog/Digital) 15-100 kHz
Vertical 50-120 Hz
Signal Compatibility/Connectivity
Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, 1080p
Macintosh Signal Compatibility Yes
Sync Compatibility Separate Sync / Composite Sync / Sync on G
Power Consumption (typical)
On 277W / 215W / 3.0W / 0.5W
Input Current 2.8A
Power Requirements 100-240V AC, 50/60 Hz AC, 50/60 Hz
Physical Specifications
Dimensions (WxHxD)
Product:12.6 x 9.8 x 4.0 in. / 324 x 250 x 101mm
Weight
Net Weight:6.2 lbs. / 2.8 kg
Environmental Conditions
Operating Temperature 41-104°F / 5-40°C
Storage -14-122°F / -10-50°C
Optical
Display Technology DLP (0.65" DMD)
Light Output(Lumens) 3300 normal
Lamp Type 218W AC
Lamp Life (up to) 3500 hours normal / 6000 hours eco
Screen Size (diagonal) 30 to 300 in. / .762 to 7.62m
Throw Ratio 1.55 to 1.7
Projection Distance 3.28 to 32.8 ft. / 1.0 to 10.0m
Projector Angle 13.0° tele / 14.2° wide
Lens - Zoom:1 to 1.1 Focus:Manual F number, fnumber:F=2.55 - 2.85, f=22.41 to 28.82mm
Keystone Correction /- 30° horizontal, +/- 30° vertical
Mechanical
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Fan Noise 35 dB normal / 32 dB eco
