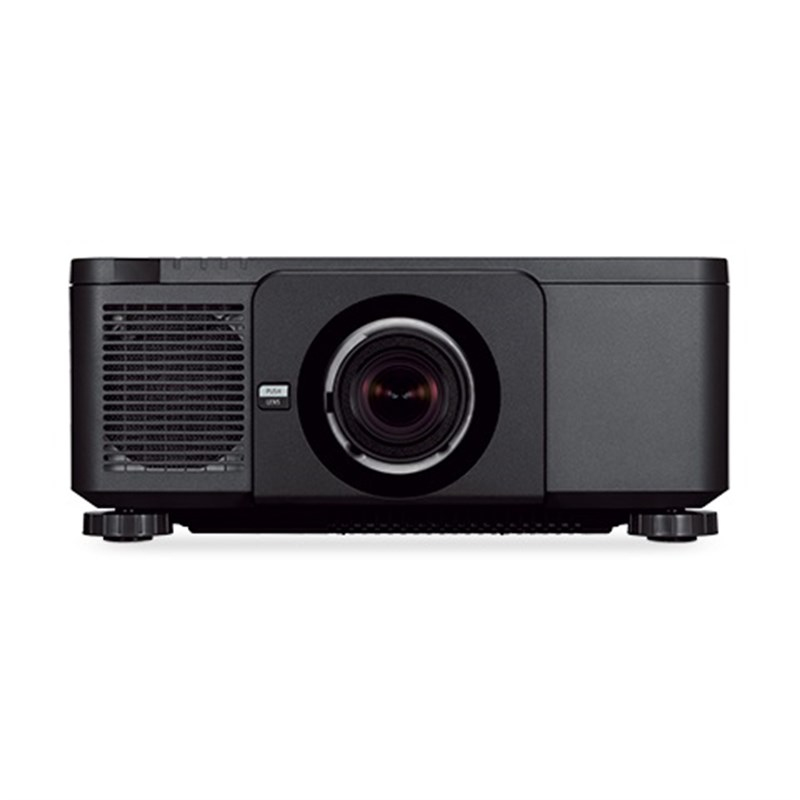

NEC PX803UL-BK 8000 Lümen 1280x800 HDMI DLP Lazer Kurulum Projeksiyon
Display
Native Resolution WUXGA 1920x1200
Maximum Resolution 4K 4096 x 2160
Contrast Ratio (typical) 10,000:1 with dynamic contrast
Synchronization Range
Horizontal (Analog/Digital) Analog: 15-100kHz, Digital: 15-153kHz
Vertical Analog: 48-120Hz, Digital: 24-120Hz
Signal Compatibility/Connectivity
Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, WXGA, UXGA, FHD, WUXGA, 2K, QXGA, WQXGA, 4k
Macintosh Signal Compatibility Yes
Sync Compatibility Separate Sync / Composite Sync / Sync on G
External Control RS-232, IR, HDBaseT, Stereo Mini, PJ-45
Power Consumption (typical)
On 874W / 456W / 4.3W / 0.18W
Input Current 9.4-3.8A
Power Requirements 100-240V AC, 50/60 Hz
Physical Specifications
Dimensions (WxHxD)
Product:19.7 x 22.9 x 8.5 in. / 500 x 583 x 216mm
Weight - Net Weight:61.7 lbs. / 28.0 kg
Environmental Conditions
Operating Temperature 41-104°F / 5-40°C
Storage -14-122°F / -10-50°C
Optical
Display Technology DLP (0.67" DMD)
Light Output(Lumens) 8000 normal
Lamp Type Laser/Phosphor
Lamp Life (up to) 20,000 hours
Screen Size (diagonal) 30 to 350 in. / 0.76 to 8.89m
Projection Distance 1.5 to 179.8 ft. / 0.5 to 54.8m
Projector Angle 2.1 to 19.1° tele / 3.3 to 24.0° wide
Lens - Focus:Power
Mechanical
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Fan Noise 40 dB normal / 35 dB eco
