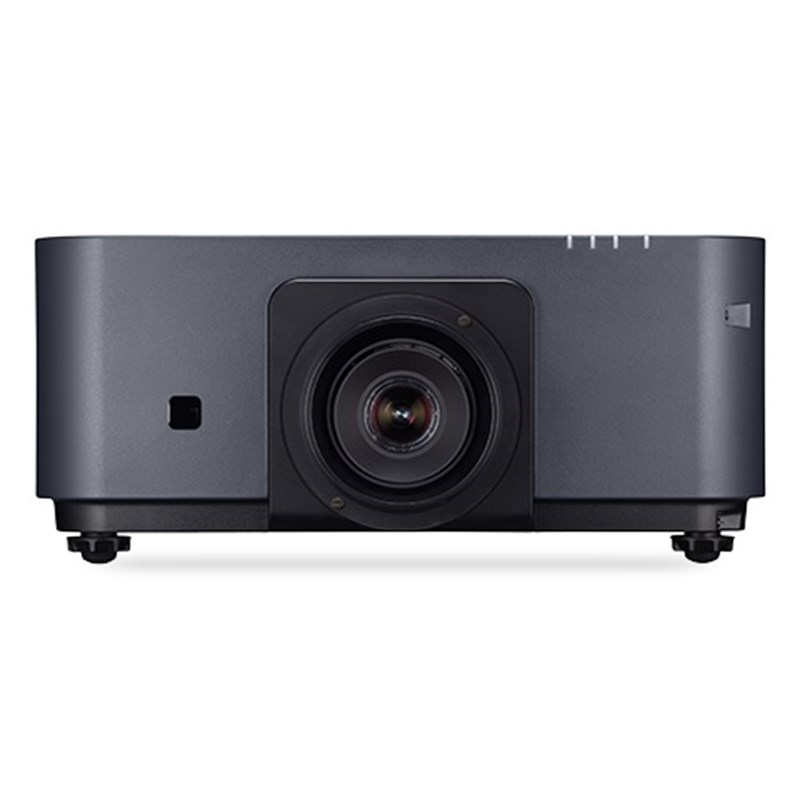

NEC PX602WL 6000 Lümen 1280x800 HDMI DLP Lazer Kurulum Projeksiyon
Display
Native Resolution WXGA 1280x800
Maximum Resolution 4K 4096 x 2160
Contrast Ratio (typical) 10,000:1 with auto iris
Synchronization Range
Horizontal (Analog/Digital) Analog: 15-100kHz, Digital: 15-153kHz
Vertical Analog: 48-120Hz, Digital: 24-120Hz
Signal Compatibility/Connectivity
Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, WXGA, UXGA, FHD, WUXGA, 2K, QXGA, WQXGA, 4k
Macintosh Signal Compatibility Yes
Sync Compatibility Separate Sync / Composite Sync / Sync on G
External Control RS-232, IR, HDBaseT, Wired LAN, DDC/CI, USB
Power Consumption (typical)
On 590W / 460W / 4.15W / 0.28W
Input Current 6.8-2.5A
Power Requirements 100-240V AC, 50/60 Hz
Physical Specifications
Dimensions (WxHxD)
Product:19.1 x 22.6 x 8.5 in. / 484 x 575 x 217mm
Weight - Net Weight:40.8 lbs. / 18.5 kg
Environmental Conditions
Operating Temperature 41-104°F / 5-40°C
Storage -14-122°F / -10-50°C
Optical
Display Technology DLP (0.65" DMD)
Light Output(Lumens) 6000 normal
Lamp Type Laser/Phosphor
Lamp Life (up to) 20,000 hours
Screen Size (diagonal) 50 to 300 in. / 1.27 to 7.62m
Projection Distance 2.8 to 120.8 ft. / 0.9 to 36.8m
Projector Angle 3.1 to 17.5° tele / 5.7 to 22.0° wide
Lens - Focus:Power
Mechanical
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Fan Noise 39 dB normal / 34 dB eco
