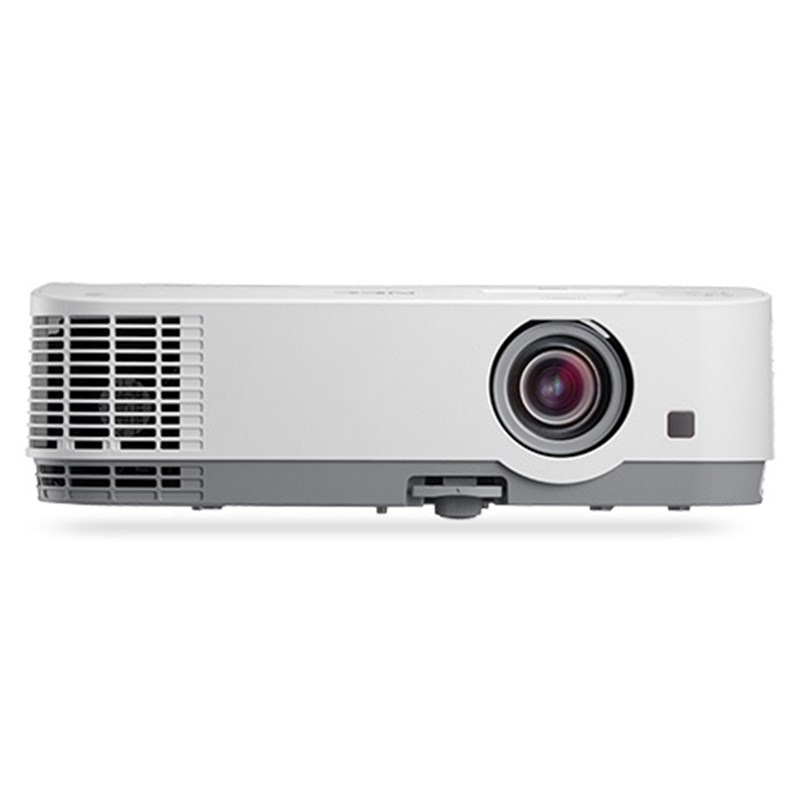

NEC ME331W 3300 Lümen Destop 1280x800 HDMI LCD Projeksiyon
Display
Aspect Ratio 16x10
Native Resolution WXGA 1280x800
Maximum Resolution WUXGA 1920 x 1200
Contrast Ratio (typical) 6000:1
Synchronization Range
Horizontal (Analog/Digital) Analog: 15-100kHz, Digital: 15-153kHz
Vertical Analog: 48-120Hz, Digital: 24-120Hz
Signal Compatibility/Connectivity
Supported Video Standards NTSC, NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility Y/CB/Cr component (with optional adaptor ADP-CV1E) 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Macintosh Signal Compatibility Yes
Sync Compatibility Separate Sync / Composite Sync / Sync on G
External Control RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
Power Consumption (typical)
On 309W / 201W / 1.9W / 0.23W
Input Current 3.4A/1.4A
Power Requirements 100-240V AC, 50/60 Hz
Physical Specifications
Dimensions (WxHxD)
Product:13.4 x 10.2 x 4.2 in. / 339 x 259 x 109mm
Weight - Net Weight:6.4 lbs. / 2.9 kg
Environmental Conditions
Operating Temperature 41-104°F / 5-40°C
Storage -14-122°F / -10-50°C
Optical
Display Technology 0.59" LCD w/ MLA
Light Output(Lumens) 3300 normal
Lamp Type 240W AC
Lamp Life (up to) 4000 hours normal / 9000 hours eco
Screen Size (diagonal) 30 to 300 in. / 0.76 to 7.62m
Throw Ratio 1.3 - 2.2:1
Projection Distance 2.3 to 47.9 ft. / 0.7 to 14.6m
Projector Angle 6.5 to 6.8° tele / 10.7 to 11.4° wide
Lens - Zoom:1.7 Focus:Manual F number, fnumber:F=1.7 to 2.1, f=17.5 to 29.0mm
Keystone Correction +/- 30° horizontal, +/- 30° vertical
Mechanical
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Fan Noise 36 dB normal / 29 dB eco
