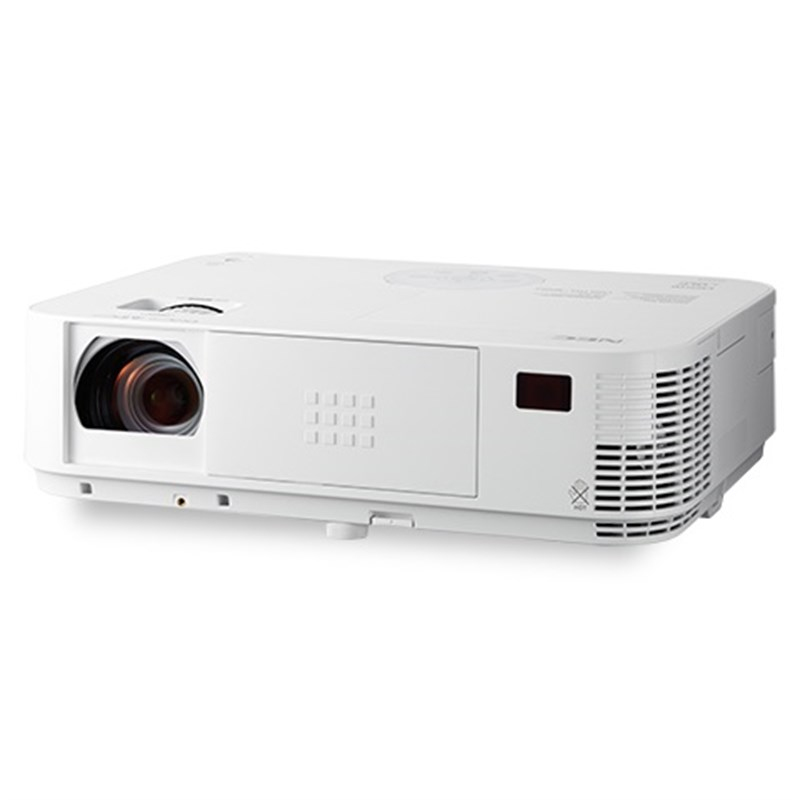

NEC M403H 4000 Lümen Destop 1920x1080 HDMI DLP Projeksiyon
Display
Aspect Ratio 16x9
Native Resolution 1080p 1920x1080
Maximum Resolution WUXGA 1920 x 1200
Contrast Ratio (typical) 10,000:1 with auto iris
Synchronization Range
Horizontal (Analog/Digital) 15-100 kHz
Vertical 50-120 Hz
Signal Compatibility/Connectivity
Supported Video Standards NTSC, NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility Y/CB/Cr component (with optional adaptor ADP-CV1E) 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Macintosh Signal Compatibility Yes
Sync Compatibility Separate Sync / Composite Sync / Sync on G
External Control RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
Power Consumption (typical)
On 336W / 221W / 2.5W / 0.2W
Input Current 3.9A/1.2A
Power Requirements 100-240V AC, 50/60 Hz
Physical Specifications
Dimensions (WxHxD)
Product:14.5 x 11.5 x 4.3 in. / 368 x 292 x 108mm
Weight
Net Weight:7.7 lbs. / 3.5 kg
Environmental Conditions
Operating Temperature 41-104°F / 5-40°C
Storage -14-122°F / -10-50°C
Optical
Display Technology DLP (0.65" DMD)
Light Output(Lumens) 4000 normal
Lamp Type 270W AC / 162W eco
Lamp Life (up to) 3500 hours normal / 8000 hours eco
Screen Size (diagonal) 30 to 300 in. / 0.76 to 7.6m
Throw Ratio 1.2 – 2.04:1
Projection Distance 2.4 to 46.3 ft. / 0.74 to 14.1m
Projector Angle 9.9 to 10.5° tele / 16.9 to 18.3° wide
Lens - Zoom:1 to 2.01 Focus:Manual F number, fnumber:F=2.4 to 3.2, f=18.0 to 30.6mm
Mechanical
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Fan Noise 36 dB normal / 30 dB eco
Regulations USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM
