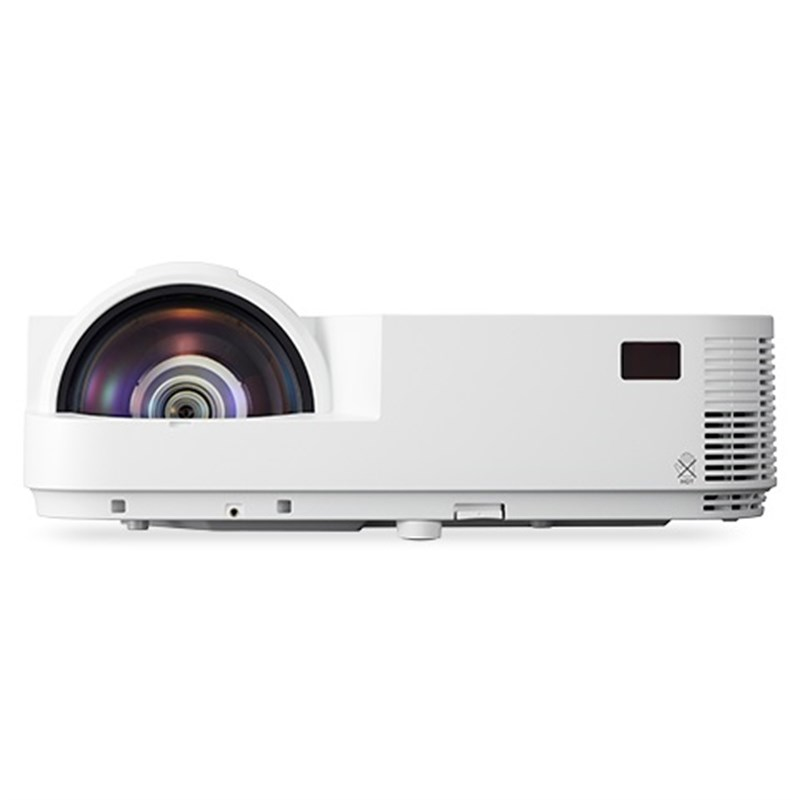

NEC M333XS 3300 Lümen Kısa Mesafeli 1024x768 HDMI LCD Projeksiyon
Display
Aspect Ratio 4x3
Native Resolution XGA 1024x768
Maximum Resolution WUXGA 1920 x 1200
Contrast Ratio (typical) 10000:1
Synchronization Range
Horizontal (Analog/Digital) 15-100 kHz
Vertical 50-120 Hz
Signal Compatibility/Connectivity
Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, Y/Cb/Cr component (with optional adapter – ADP-CV1E)
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Macintosh Signal Compatibility Yes
Sync Compatibility Separate Sync / Composite Sync / Sync on G
External Control RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
Power Consumption (typical)
On 335W / 246W / 2.5W / 0.2W
Input Current 3.9A/1.9A
Power Requirements 100-240V AC, 50/60 Hz
Physical Specifications
Dimensions (WxHxD)
Product:14.5 x 11.5 x 5.3 in. / 368 x 286 x 134mm
Weight - Net Weight:8.2lbs / 3.7kgs
Environmental Conditions
Operating Temperature 41-104°F / 5-40°C
Storage -14-122°F / -10-50°C
Optical
Display Technology DLP (0.55" DMD)
Light Output(Lumens) 3300 normal / Eco = approx. 75% of normal mode
Lamp Type 200W AC
Lamp Life (up to) 3500 hours normal / 8000 hours eco
Screen Size (diagonal) 60 to 150 in. / 1.5 to 3.1m
Throw Ratio 0.56:1
Projection Distance 2.21 to 5.76 ft. / 0.67 to 1.757m
Projector Angle 40.7° to 40.9°
Lens - Zoom:1.2 Focus:Manual F number, fnumber:F=2.4, f=6.5mm
Keystone Correction +/- 30% Vertical (Automatic/Manual)
Mechanical
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Fan Noise 38 dB normal / 33 dB eco
