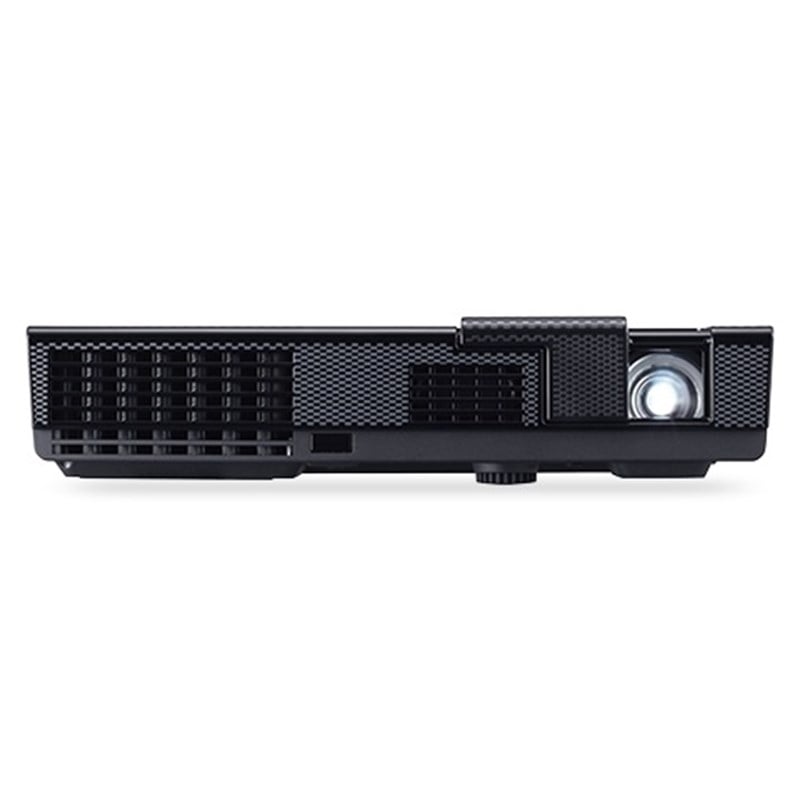

NEC L102W 1000 Lümen LED Mobile 1280x800 HDMI DLP Projeksiyon
Display
Aspect Ratio 16x10
Native Resolution WXGA 1280x800
Maximum Resolution UXGA 1600 x 1200
Contrast Ratio (typical) 10,000:1
Synchronization Range
Horizontal (Analog/Digital) 15-100 kHz
Vertical 50-85 Hz
Signal Compatibility/Connectivity
Supported Video Standards NTSC, NTSC4.43, PAL-M, N, B, D, G, H, I, SECAM
SD/HD Video Signal Compatibility 480i, 576i, 480p, 576p, 720p, 1080i
PC Signal Compatibility VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA
Macintosh Signal Compatibility Yes
Power Consumption (typical)
On 110W / 72W / NA/ 0.5W
Input Current 1.2A
Power Requirements 100-240V AC, 50/60 Hz
Physical Specifications
Dimensions (WxHxD)
Product:9.4 x 1.7 x 7.0 in. / 238 x 44 x 177mm Weight
Net Weight:3.1 lbs. / 1.4 kg
Environmental Conditions
Operating Temperature 41-95°F / 5-35°C
Storage -4-140°F / -20-60°C
Optical
Display Technology DLP (0.45" DMD)
Light Output(Lumens) 1000 normal
Lamp Life (up to) 20,000 hours
Screen Size (diagonal) 17 to 100 in. / 0.4 to 2.5m
Throw Ratio 1.4
Projection Distance 1.7 to 9.8 ft. / 0.5 to 3m
Projector Angle 13.8°
Lens - Zoom:1:1 Focus:Manual
Keystone Correction Automatic +/- 40°
Mechanical
Installation Orientation Table/Front, Table/Rear
