Mipro MR-823+CV100CS Kablosuz Keman Ve Saksafon Enstruman Mikrofonu

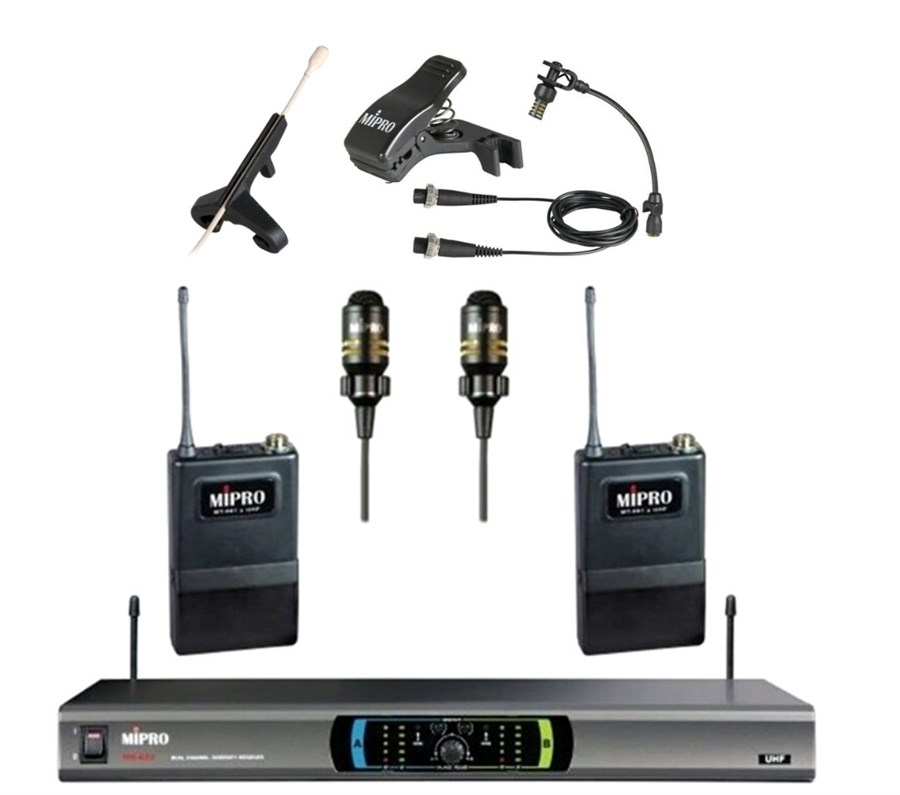

Set İçeriği
1 Adet Mipro MR-823 Yaka UHF Çift Yaka Tipi Telsiz Mikrofon
2 Adet MT-801 Bodypack Transmitter
1 Adet Mipro CV-100 Keman ve Viola için Klipsli Kondenser Mikrofon
1 Adet Mipro CS-100 Saksafon için Klipsli Kondenser Mikrofon

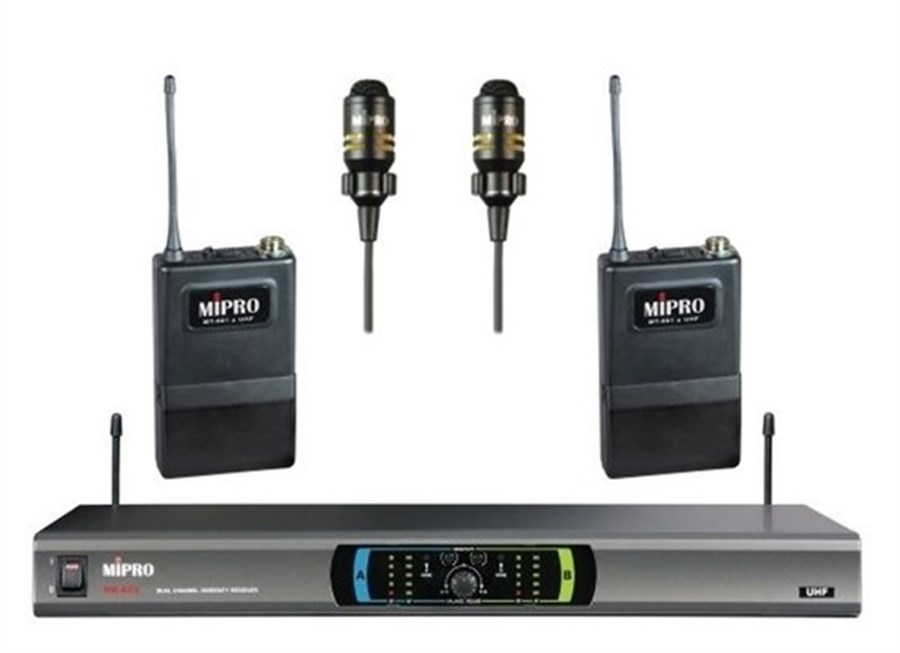

Mipro MR-823 Yaka UHF Çift Yaka Tipi Telsiz Mikrofon
MR-823 Dual-Channel Diversity Receiver
CPU diversity technology ensures stable signal quality and avoids signal drop-out.
PLL synthesized fixed frequency circuit for stability and effortless frequency setup.
RF and audio level LED indicators.
Adjustable ‘SQ’ for increased or decreased sensitivity level for increased reception range or interference management.
Output level is accurately pre-adjusted to equal the microphone capsule sensitivity and ensures optimal performance.
Chassis EIA Standard 19 " 1U metal chassis
Frequency Range UHF 480 ~ 934 MHz
Oscillation Mode PLL Synthesized fixed-frequency.
Receiving Mode Diversity receiving
Deviation < ± 40 kHz
S/N Ratio > 106 dB(A)
T.H.D. < 0.5% @ 1 kHz
Frequency Response 50 Hz ~ 18 kHz
Max. Output Level 3-Level Switch: +10 dBV / 0 dBV / -6 dBV
Sensitivity 10 dBμV at S/N > 80 dB
Squelch “PiloTone & NoiseLock” dual-squelch circuit
Power Supply 12 ~ 15V DC, 1A
Dimensions (W × H × D) 420 × 44 × 204 mm / 17 × 1.7 × 8.0 "
Net Weight Approx. 1.7 kg / 3.7 lbs
Note Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.
MT-801 Bodypack Transmitter
Lightweight, compact size with sturdy plastic housing.
Fixed frequency with PLL synthesized technology ensures no need for frequency setup.
High dynamic range modulation circuit sustains high SPL without distortion.
Mini-XLR input with secure screw lock connector for lavaliere / headworn mics and guitar.
High-efficiency circuitry design provides more than 17 hours of operation from 2 AA batteries (depending on the battery quality).
Housing Rugged plastic housing
Frequency Range UHF 480 ~ 934 MHz (country dependent)
Oscillation Mode PLL Synthesized fixed-frequency
RF Output Power 10 ~ 30 mW (country dependent)
Spurious Emissions < -55 dBc
Deviation < ±40 kHz
Display LED indicator for power on/off and low battery status.
Max. Input Level 0 dBV
Mute Manual
Battery Type 2 × AA alkaline
Operating Time Min. 17 hours
Mic Capsule Module Lavalier, Headworn mic
Dimensions (W × H × D) 63 × 105 × 21 mm / 2.5 × 4.1 × 0.8 "
Net Weight Approx. 75 g / 2.6 oz
Note Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.

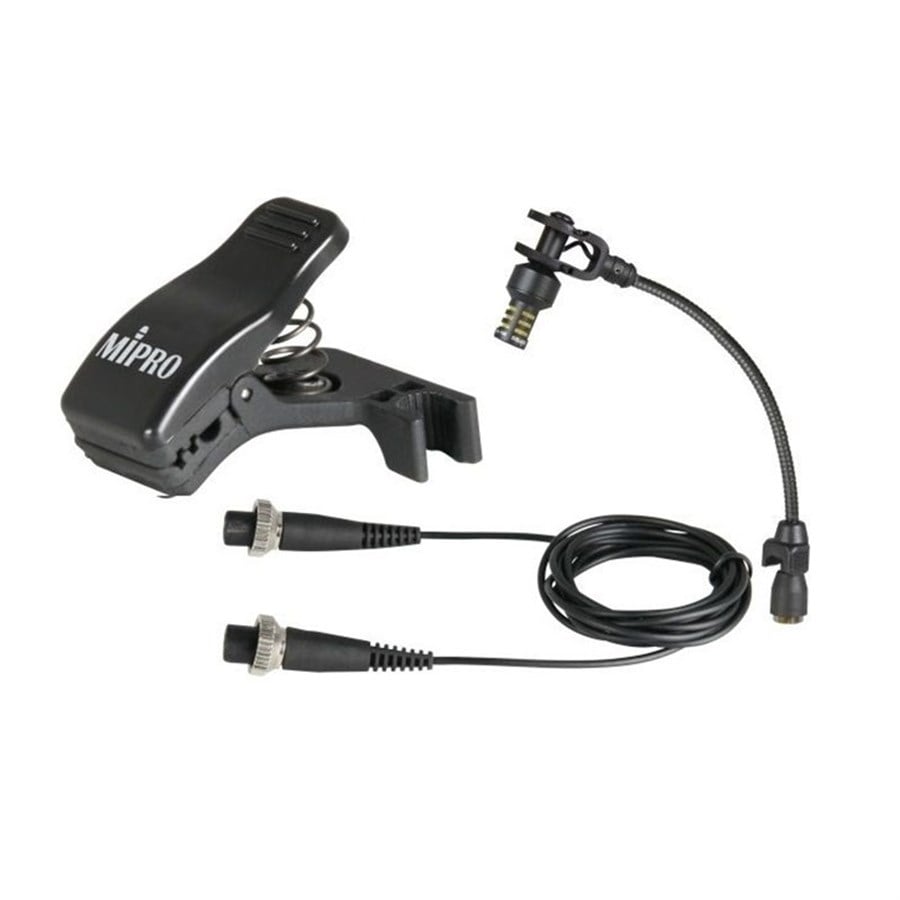

Mipro CV-100 Keman ve Viola için Klipsli Kondenser Mikrofon
Each MIPRO proprietary instrument microphone set consists of a MIPRO self-produced miniature condenser microphone capsule, particularly designed for each instrument according to its acoustic characteristics, and has collaborated with professional musicians and musical instrument manufacturers.
Each microphone set is assembled on a specific anti-shock holder to prevent from touch noise and strategically placed in the position that picks up the accurate sound of the instrument. It is easy to install and remove and protects these expensive instruments from surface scratches.
The wide dynamic range of digital transmission technique allows it to ideally pick up the sound under great SPL and completely exhibit the sound details for natural sound reproduction.
MIPRO scientifically analyzes the structure and the resonance characteristics of the instrument body to design the microphone sets that can completely pick up the natural sound of the instrument, which is different from the electronic sound by a pickup. The signal output can be transmitted by cables or directly connected to a transmitter for wireless transmission.
Capsule Module MU-55V
Directionality Omni-directional
Max. SPL 135 dB
Color Black
Cable VC-10L
Holder VH-10L
Note Refer to actual product in the event of product discrepancy.
Mipro CS-100 Saksafon için Klipsli Kondenser Mikrofon
Each MIPRO proprietary instrument microphone set consists of a MIPRO self-produced miniature condenser microphone capsule, particularly designed for each instrument according to its acoustic characteristics, and has collaborated with professional musicians and musical instrument manufacturers.
Each microphone set is assembled on a specific anti-shock holder to prevent from touch noise and strategically placed in the position that picks up the accurate sound of the instrument. It is easy to install and remove and protects these expensive instruments from surface scratches.
The wide dynamic range of digital transmission technique allows it to ideally pick up the sound under great SPL and completely exhibit the sound details for natural sound reproduction.
MIPRO scientifically analyzes the structure and the resonance characteristics of the instrument body to design the microphone sets that can completely pick up the natural sound of the instrument, which is different from the electronic sound by a pickup. The signal output can be transmitted by cables or directly connected to a transmitter for wireless transmission.
Capsule Module MU-16
Directionality Semi-supercardiod
Max. SPL 142 dB
Color Black
Cable SG-10S
Holder SH-10S
Note Refer to actual product in the event of product discrepancy.
