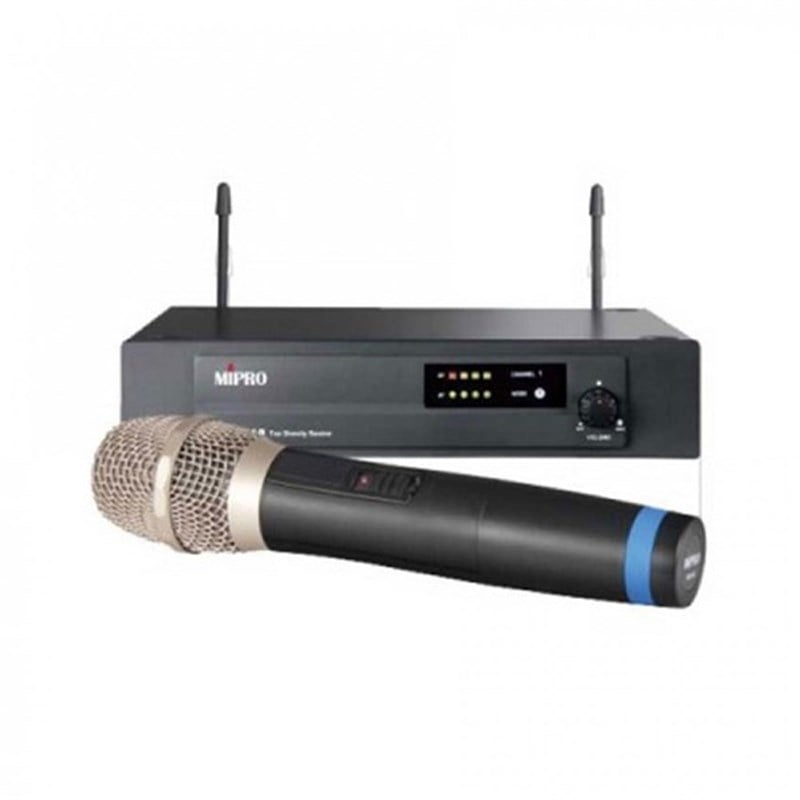

MR-818 Single-Channel True Diversity Receiver
EIA standard 1/2U metal rack-mountable receiver.
PLL synthesized fixed frequency circuit for stability and effortless frequency setup.
Advanced true diversity technology ensures optimal reception range and eliminates signal drop-outs.
RF and audio level indicators.
Output level is accurately pre-adjusted to equal the microphone capsule sensitivity and ensures optimal performance.
Adjustable ‘SQ’ for increasing or decreasing sensitivity level for increased reception range or interference management.
Industry’s only RF interference warning indicator for SQ adjustment.
Up to 24 compatible channels can be used simultaneously at the same venue (country dependent).
New MH-80 handheld transmitter features sturdy housing, high-efficiency transmitting circuit, and brilliant sound quality.
Quick to install and easy to operate with high reliability and affordability.
Ideal for entry-level stage and PA applications.
| Frequency Range |
UHF 480 ~ 934 MHz (country dependent) |
| Receiving Mode |
True Diversity |
| Receiving Antenna |
Rear Panel. Detachable. |
| Oscillation Mode |
PLL Synthesized |
| Stability |
≦ ±0.005% (-10 ~+60℃) |
| Sensitivity |
8 dB μ V at S/N > 80 dB |
| S/N Ratio |
> 106 dB (A) |
| T.H.D. |
< 0.5% @ 1 kHz |
| Frequency Response |
50 Hz ~ 18 kHz |
| Squelch |
“PiloTone & NoiseLock” dual-squelch circuit |
| Max. Output Level |
2-level Switch: Line & Mic |
| Power Supply |
12 ~ 15V DC, 1A |
| Dimensions (W × H × D) |
210 × 44 × 180 mm / 8.3 x 1.7 x 7.1 " |
| Weight |
Approx. 0.9 kg / 2.0 lbs |
MH-80 Handheld Transmitter
Fixed frequency with PLL synthesized technology ensures no need for frequency setup.
Innovatively designed housing combines aesthetics and ergonomic style.
Unique sturdy multi-layered steel grilles protect the capsule against impact, anti-roll and pop noise. Interior grille with fine metal mesh instead of sponge foam minimizes pop & breath noises and ensures transparent sound clarity.
Patented, integrated grille and battery housing design enable fast and easy 2 AA battery installation and replacement.
Sturdy housing with color-coded channel identification rings.
Low-battery warning indicator also determines battery freshness.
Patented lockable, silent on/off switch.
Proprietary quality condenser capsule exhibits high fidelity, wide dynamic range, transparent sound quality, and withstands maximum SPL.
Up to 24 hours of continuous operation with 2 AA alkaline batteries
| Housing |
Rugged plastic housing |
|
|
|
|
|
| Frequency Range |
UHF 480 ~ 934 MHz (country dependent) |
|
|
|
|
|
| Oscillation Mode |
PLL Synthesized fixed-frequency |
|
|
|
|
|
| RF Output Power |
10 ~ 30 mW (country dependent) |
|
|
|
|
|
| Spurious Emissions |
< -55 dBc |
|
|
|
|
|
| Max. Input Level |
140 dB SPL |
|
|
|
|
|
| Display |
LED indicator for power on/off and low battery status |
|
|
|
| Battery Type |
2 × AA alkaline |
|
|
|
|
|
| Max. Input Level |
140 SPL |
|
|
|
|
|
| Operating Time |
Min. 17 hours |
|
|
|
|
|
| Mic Capsule Module |
Condenser or Dynamic options |
|
|
|
|
|
| Dimensions (Ø × L) |
51 × 234 mm / 2 × 9.2 " |
|
|
|
|
|
| Net Weight |
Approx. 199 g / 7 oz |
|
|
|
|
|
| Note |
Refer to actual product in the event of product discrepancy. |
|
|
|
| |
Frequency range and maximum deviation comply with the regulations of different countries. |
