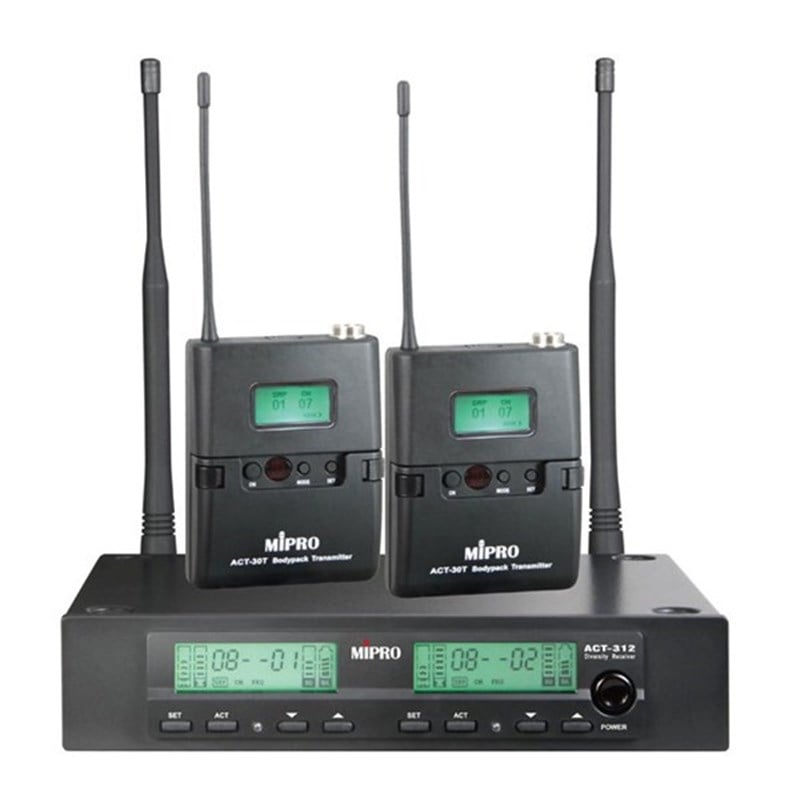

Mipro ACT 312 Yaka Kablosuz Mikrofon Seti - Çift Yaka
ACT-312 Dual-Channel Diversity Receiver
EIA standard 1/2U metal receiver.
Receiver provides bias for booster where MIPRO antenna systems can be added for extended receiving range and stability.
Backlit LCD displays group, channel, frequency, RF level, antenna selection, AF level, battery level indicator, interference warning indicator, and panel lock indicator.
A lit green light indicates a working mode when receiver detects an incoming signal or buttons touched. Light dims automatically when receiver is idle for about 10 seconds.
Balanced XLR / unbalanced 1/4 " audio output jack, output level switch and DC input are on the rear panel. One mixed-output switch is available for dual-channel receivers.
High efficiency and low spurious PLL circuitry with Auto Scan functioin. Each receiver is presets with 11 groups, Groups 1~6, 7~10 have 8 &16 compatible channels respectively. Up to 8 channels in group 11 can be saved and recalled within 961 user-defined frequencies. A total of 112 preset channels per band.
World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
Advanced diversity technology for optimum reception range and reduces signal dropouts and the “PiloTone & NoiseLock” dual-squelch circuits prevent noise interference.
Adjustable ‘SQ’ for higher sensitivity to increase receiving distance and lower sensitivity to reduce interference.
Industry’s only RF interference warning indicator for ideal SQ level adjustment.
DC input socket accepts 12~15V power supply.
Matching ACT-30H handheld and ACT-30T bodypack transmitters.
| Channel |
Dual |
| Chassis |
EIA-Standard 19" 1/2U |
| Receiving Mode |
Diversity |
| Frequency Range |
UHF480~934MHz |
| Antenna |
Rear Panel. Detachable. |
| Preset Channels |
112 preset channels. |
| |
Group 1-6: 8 compatible channels in each group. |
| |
Group 7-10: 16 compatible channels in each group. |
| |
Group 11: Up to 8 channels can be saved & recalled. |
| |
961 user-defined frequencies in group 11. |
| Oscillation Mode |
PLL Synthesized, Frequency Stability≦±0.005% (-10~+60℃) |
| Sensitivity |
10dBμV, at S/N>80dB |
| S/N Ratio |
>106dB(A) |
| T.H.D. |
<0.5% @ 1kHz |
| Frequency Response |
50Hz~18kHz, with high pass filter. |
| Squelch |
"PiloTone & NoiseLock" dual-squelch circuit. |
| Audio Output Adjustment |
Output level accurately pre-adjusted to equal to the microphone capsule sensitivity. |
| Maximum Output Level |
2-level Switch:Line & Mic |
| Power Supply |
External AC Adapter, 12~15V DC, 1A |
| Dimensions |
210(W)×44(H)×180(D)mm / 8.3(W)x1.7(H)x7.1(D)" |
| Weight |
Approx. 0.95kg / 2.1lbs |
| Note |
Refer to actual product in the event of product discrepancy. |
| |
Frequency range and maximum deviation comply with the regulations of different countries. |
ACT-30T Bodypack Transmitter
Miniature, compact design.
Top features mute switch, mini-XLR connector and antenna.
Backlit LCD displays various parameters and indicators.
Unique battery cover design provides easy access to operational controls and protects against accidental change of settings.
Connector for optional MJ-70 remote mute switch cable.
Low spurious PLL-synthesized technology enhances frequency stability and reliability. One-touch ACT syncs the transmitter and receiver frequency automatically.
Selectable impedance for microphone or guitar/line inputs.
4-pin mini XLR connector is compatible with all MIPRO lavalier, headworn microphones and instrument cable.
Highly efficient power consumption circuitry ensures long operating hours from 2 AA batteries.
Adjustable belt clip allows wearing transmitter in up or down position.
