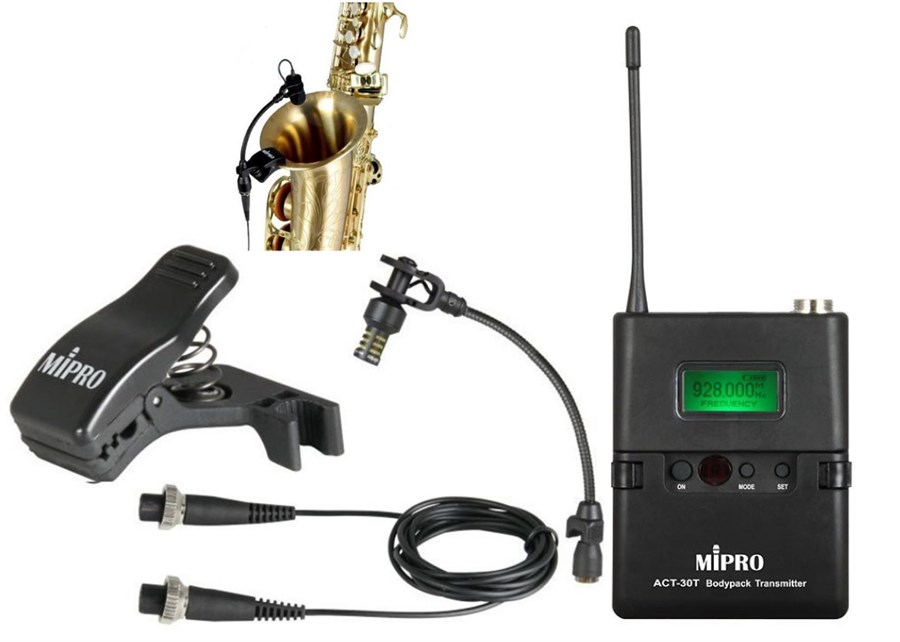

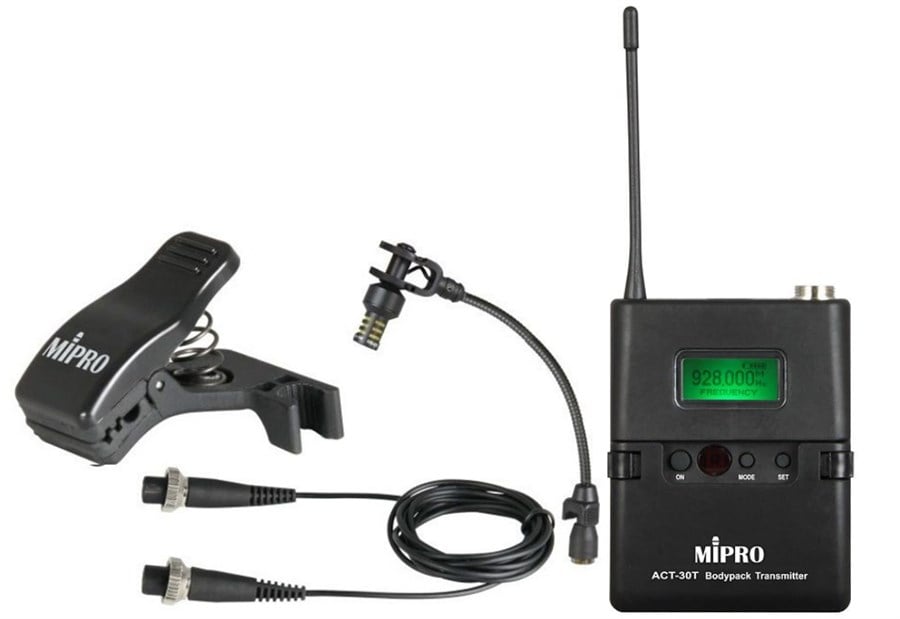

Mipro ACT-30T + CS-100 Saksafon İçin Kondenser Mikrofon Telsiz Seti
Set İçeriği
1 Adet Mipro CS-100 Saksafon için Klipsli Kondenser Mikrofon
1 Adet Mipro ACT-30 T Kablosuz Transmitter Bodypack

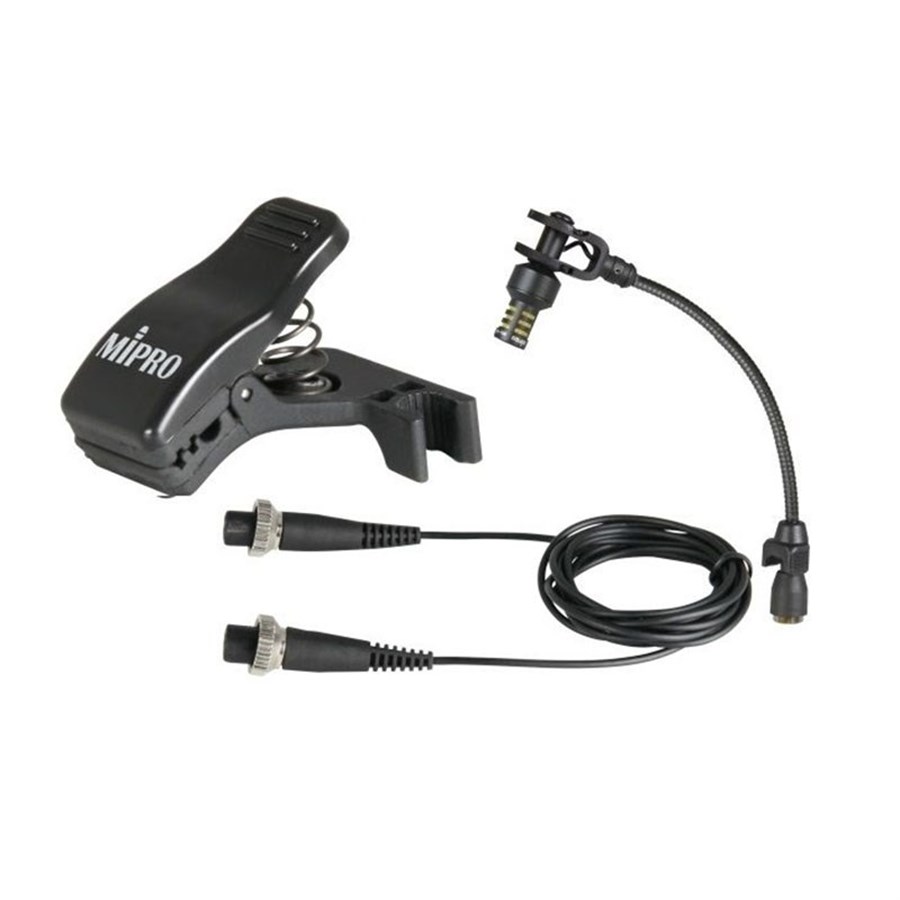

Mipro CS-100 Saksafon için Klipsli Kondenser Mikrofon
Each MIPRO proprietary instrument microphone set consists of a MIPRO self-produced miniature condenser microphone capsule, particularly designed for each instrument according to its acoustic characteristics, and has collaborated with professional musicians and musical instrument manufacturers.
Each microphone set is assembled on a specific anti-shock holder to prevent from touch noise and strategically placed in the position that picks up the accurate sound of the instrument. It is easy to install and remove and protects these expensive instruments from surface scratches.
The wide dynamic range of digital transmission technique allows it to ideally pick up the sound under great SPL and completely exhibit the sound details for natural sound reproduction.
MIPRO scientifically analyzes the structure and the resonance characteristics of the instrument body to design the microphone sets that can completely pick up the natural sound of the instrument, which is different from the electronic sound by a pickup. The signal output can be transmitted by cables or directly connected to a transmitter for wireless transmission.
Capsule Module MU-16
Directionality Semi-supercardiod
Max. SPL 142 dB
Color Black
Cable SG-10S
Holder SH-10S
Note Refer to actual product in the event of produ

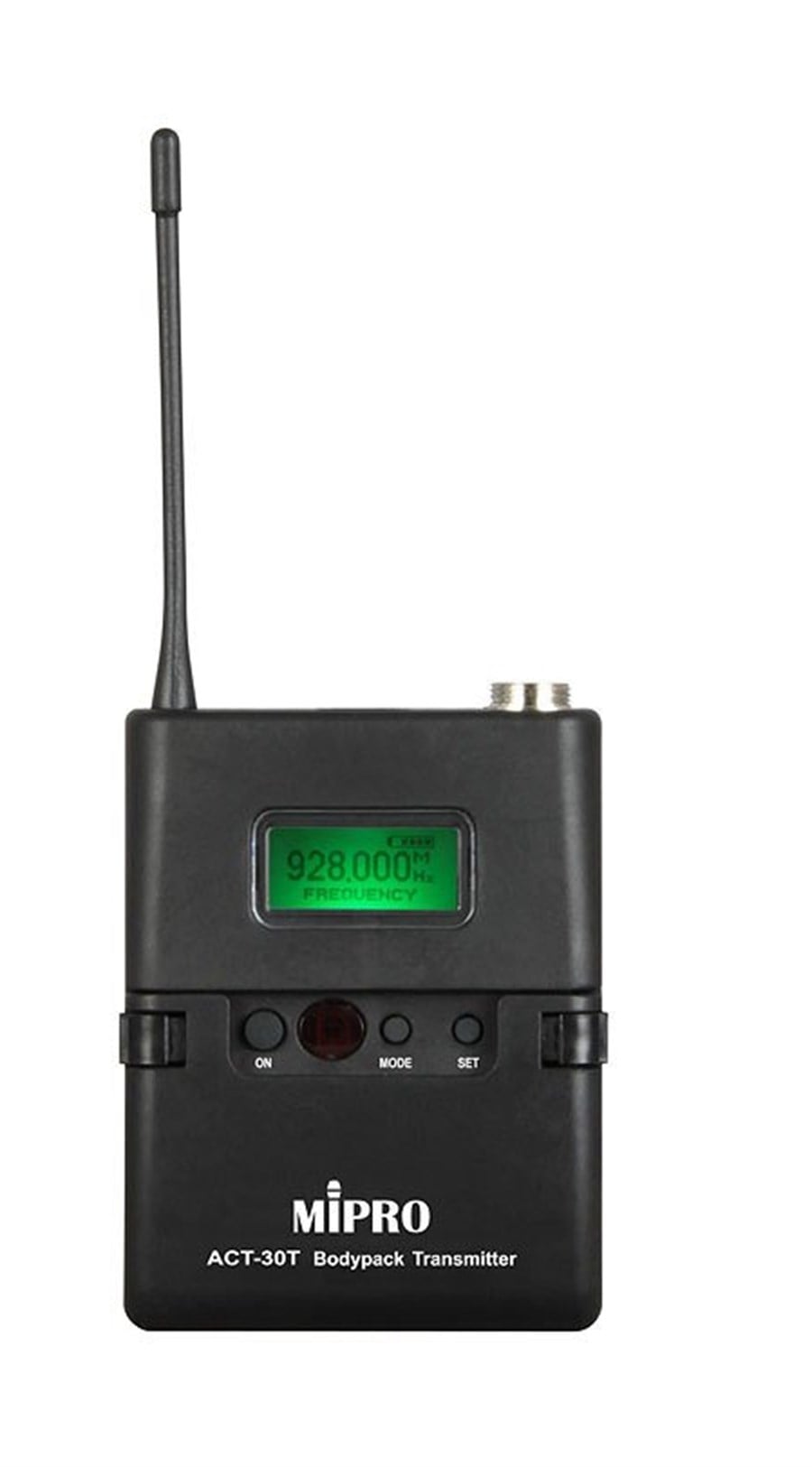

Mipro ACT-30 T Kablosuz Transmitter Bodypack
Miniature, compact design.
Top features mute switch, mini-XLR connector and antenna.
Backlit LCD displays various parameters and indicators.
Unique battery cover design provides easy access to operational controls and protects against accidental change of settings.
Connector for optional MJ-70 remote mute switch cable.
Low spurious PLL-synthesized technology enhances frequency stability and reliability. One-touch ACT syncs the transmitter and receiver frequency automatically.
Selectable impedance for microphone or guitar/line inputs.
4-pin mini XLR connector is compatible with all MIPRO lavalier, headworn microphones and instrument cable.
Highly efficient power consumption circuitry ensures long operating hours from 2 AA batteries.
Adjustable belt clip allows wearing transmitter in up or down position.
Housing Rugged Plastic
Frequency Range UHF480 ~ 934 MHz
Bandwidth 24 MHz
Oscillation Mode PLL Synthesized
Channel Set-Up ACT Sync
LCD Display LCD displays working band-code, group, channel, frequency, AF input gain, RF output power, mute & lock status, battery status and error codes.
RF Output Power 10 mW / 50 mW (switchable)
Spurious Emissions <-55 dBc
Max. Input Level 0 dBV
Mute Connector Optional MJ-70 remote mute switch
Battery 2 AA alkaline
Dimensions (W × H × D) 63 × 82 × 22 mm / 2.5 × 3.2 × 0.9 "
Weight Approx. 81 g / 2.9 oz (excluding batteries)
Patents & Approvals Patented. Telecom and safety regulations approved.
Note Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.
