VC Strip Led Video Şeridi

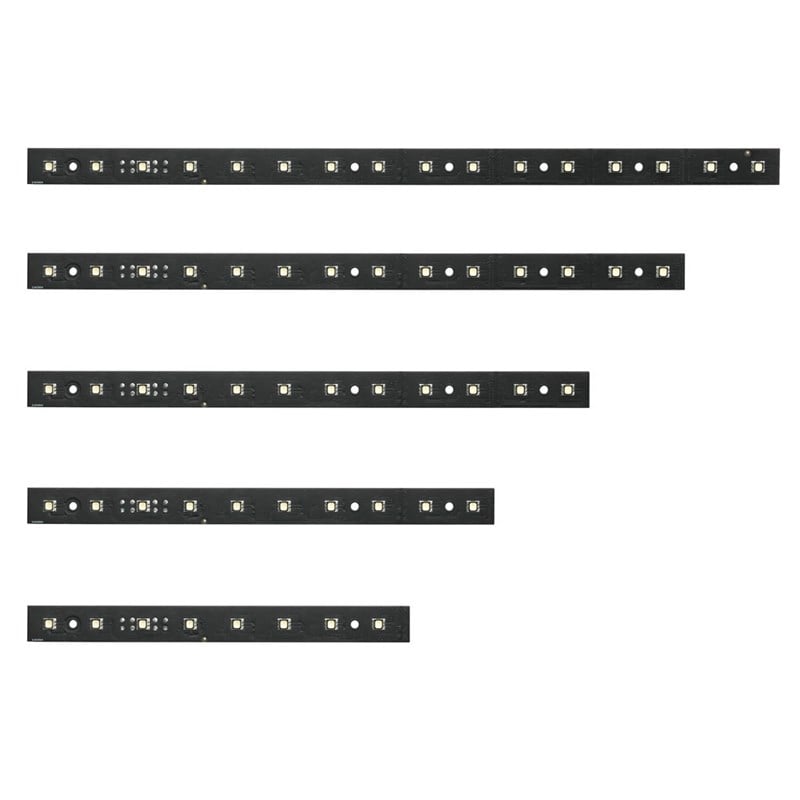

The VC-Strip family of narrow LED video strips is ideal for integration of video into stage and set designs, interiors, custom set elements and more. VC-Strips are fully pixel-level calibrated on brightness and colors for optimal uniformity and quality and are driven by Martin’s award-winning P3 System Controller family for smooth playback that outperforms any DMX-based system. VC-Strips are available in various lengths and can even be cut to required length on-site.
Wide range of pixel pitches to suit every application Easy cabling, mapping and configuration Bright and fully calibrated for optimal consistency
Özellikler
16/8 individually controllable pixels 4000 nits of brightness High-quality, 16-bit per color image processing technology Pixel-level brightness and color calibration for optimal image quality P3/DMX controllable (automatic protocol detection) Intuitive mapping and addressing via P3 System Controller Combined power/data input (single cable for power and data input) Combined power/data thru (to daisy-chain up to 45 VC-Strips) Available in RGB, cool white, medium white and warm white Supported by integrated power and data processor (P3 PowerPort 1500) and simple cabling system Length of VC-Strip can be customized on-site (simple cutting) to fit integration needs Compatible with VC-Grid
Specifications
Physical
VC-Strip 16x1 25™: Length: 400 mm (15.8 in.)* Width: 20 mm (0.8 in.) Height: 18 mm (0.7 in.) Weight: 43 g (0.1 lbs.) VC-Strip 8x1 25™: Length: 200 mm (7.9 in.)* Width: 20 mm (0.8 in.) Height: 18 mm (0.7 in.) Weight: 26 g (0.06 lbs.) *Including 1 mm board-to-board gap
Control/Programming/User
Control options: Martin P3 System Controller™ via Martin P3 PowerPort 1500™ and/or DMX Control modes: Pixel and module Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color Protocol detection: Automatic Setting and addressing: P3 System Controller or RDM-compliant controller DMX channels: Pixel mode 16x1 model = 48, 8x1 model = 24; Module mode (all models) = 3 Color and intensity calibration: Pixel-level Firmware update: Via P3 System Controller DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Device status: Multi-color visual indication Device test and reset: Pushbutton to call up local test patterns and reset device
Installation
Mounting: Mounting holes in module Orientation: Any Maximum number of VC-Strip™ 16x1 25 modules per daisy-chain: 45 Maximum number of VC-Strip™ 8x1 25 modules per daisy-chain: 63
Video Processing / Photometric Data
Brightness control Gamma correction and control Color temperature control Color gamut control Calibration processing Synchronization Pixels: 16/8 per module Luminous intensity, calibrated mode: 4000 Nit Viewing angle: 120° x 120°
Optics
Minimum LED lifetime: 50,000 hours (to >70% luminous output)* *Figure obtained under manufacturer´s test conditions
Electrical
ONominal input voltage: 48 VDC from Martin P3 PowerPort 1500™ or external PSU Peak power consumption (at full intensity, full white): 16x1 model 8 W; 8x1 model 4 W Typical power consumption (with typical video content): 16x1 model 3 W; 8x1 model 1.5 W Figures for typical video content are indicative only and will vary. Power consumption figures include cable and assume a 50 m chain
Thermal
Cooling: Convection Maximum ambient temperature (Ta max.): 45° C Minimum ambient temperature (Ta min.): -20° C Peak heat dissipation (calculated, at full intensity, full white): 16x1 model 28 BTU/hr.; 8x1 model 14 BTU/hr. Typical heat dissipation (calculated, with typical video content): 16x1 model 11 BTU/hr.; 8x1 model 5.5 BTU/hr. Figures for typical video content are indicative only and will vary.
Accessories
VC-Grid™/Strip™ 25 Mounting Frames, set of 10: P/N 91611370 VC-Grid™/Strip™ 25 Lens Arrays, Narrow, set of 8: P/N 91611540
Ordering Information
VC-Strip™ 16x1 25 RGB: P/N 90357290 VC-Strip™ 8x1 25 RGB: P/N 90357320
