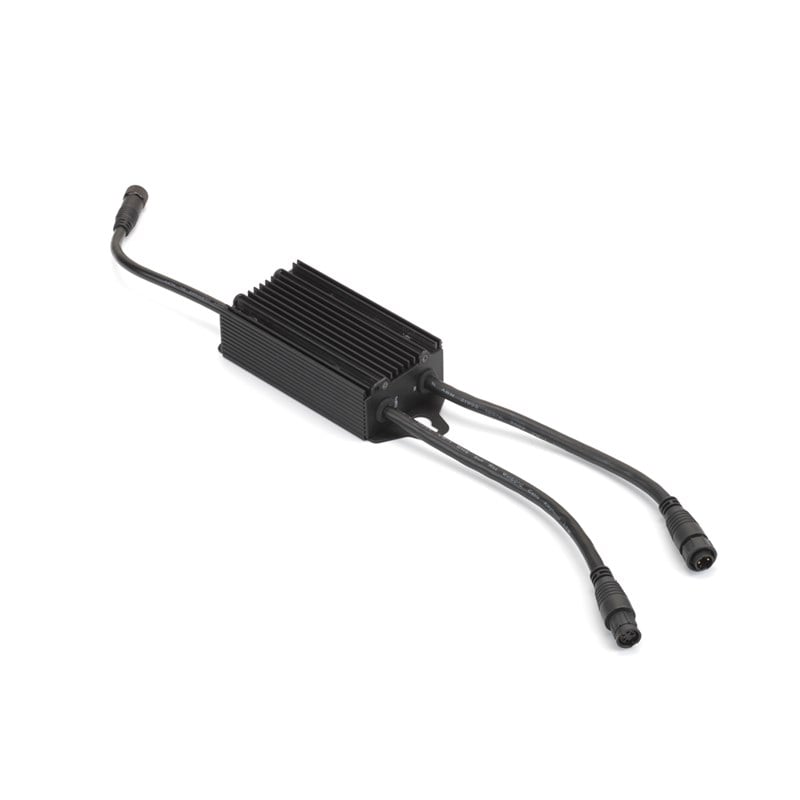

Martin VC Feeder VC-DOT Driver Box
The VC-Feeder is a smart, multi-protocol driver box for the VC-Dot series. A compact design and IP65 rating make it perfectly suited for installation close to a string of VC-Dots. The VC-Feeder provides the string with clean, regulated power, even if the power supply is located far away. Compatibility with the P3 System Controller™ (via the P3 PowerPort 1500™ or PowerPort 1000 IP™) gives it high-quality image processing capabilities with extremely easy setup and configuration.
Driver unit for VC-Dot products Compatible with P3 and DMX Easy cabling and configuration
Özellikler
High-quality, 16-bit-per-color image processing technology IP65 rated for permanent outdoor or indoor use P3/DMX controllable (automatic protocol detection) Intuitive mapping and addressing via P3 System Controller family Hybrid power + data input (single cable for power and data input) Hybrid power + data thru (to daisy-chain multiple VC-Feeders) Hybrid power + data output (to a string of VC-Dots) Surface- and truss-mountable
Specifications
Physical
LLength: 164 mm (6.5 in.) including mounting ears Width: 68 mm (2.7 in.) Height: 36 mm (1.5 in.) Weight: 590 g (1.3 lbs.)
Control/Programming/User
Control options: Martin P3 System Controller™ via Martin P3 PowerPort 1500™ / Martin P3 PowerPort 1000 IP™ and/or DMX Control modes: Adapts to detected product Protocol detection: Automatic Product detection: Automatic Setting and addressing: P3 System Controller or RDM-compliant controller DMX channels: Adapts to detected product Firmware update: Via P3 System Controller DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Device status: Multicolor status LED Device test and reset: Pushbutton to call up local test patterns and reset device
Video Processing / Photometric Data
Brightness control Gamma correction and control Color temperature control Color gamut control Calibration processing Synchronization
Electrical
Nominal input voltage: 48 VDC from Martin P3 PowerPort 1500™ / P3 PowerPort 1000 IP™ / IP66 PSU 240W or external PSU Output voltage : 15 VDC Maximum total power consumption: 135 W
Thermal
Cooling: Convection Maximum ambient temperature (Ta max.): 55° C Minimum ambient temperature (Ta min.): -20° C Total heat dissipation (calculated, +/- 10%): 46 BTU/hr. Thermal monitoring: Integrated temperature sensor allowing thermal protection shutdown
Accessories
M16 Connector Models BBD Connector Models
Ordering Information
VC-Feeder with BBD Connectors: P/N 90357041 VC-Feeder with M16 Connectors: P/N 90357040
