Physical
Length: 455 mm (17.9 in.)
Width: 311 mm (12.5 in.)
Height: 199 mm (7.8 in.)
Height with hanging bracket: 351 mm (13.8 in.)
Weight, dry: 9.5 kg (20.9 lb.)
Weight, filled: 12 kg (26.5 lb.)
Dynamic Effects
Color mixing: RGB
Color selection: 36 color presets
Electronic dimming: 0 - 100%
Strobe and pulse effects: Variable speed and action, random strobe
Electronic 'shutter' effect: Instant open and blackout
Fog: On/Off
Performance
Coverage volume: 480 m3 (17,000 ft3) per minute
Maximum fluid consumption: 60 ml per minute
Maximum operating time at full output: 30 seconds
Ready time: 8 minutes
Control and Programming
Control options: DMX, 4-channel wireless remote control, pushbutton on/off
Control parameters with wireless remote: On/off operation
Control parameters with DMX: Full-featured
DMX channels: 7
User interface: Control panel with LED display
DMX compliance: ANSI E1.11 - USITT DMX512-A
Optics

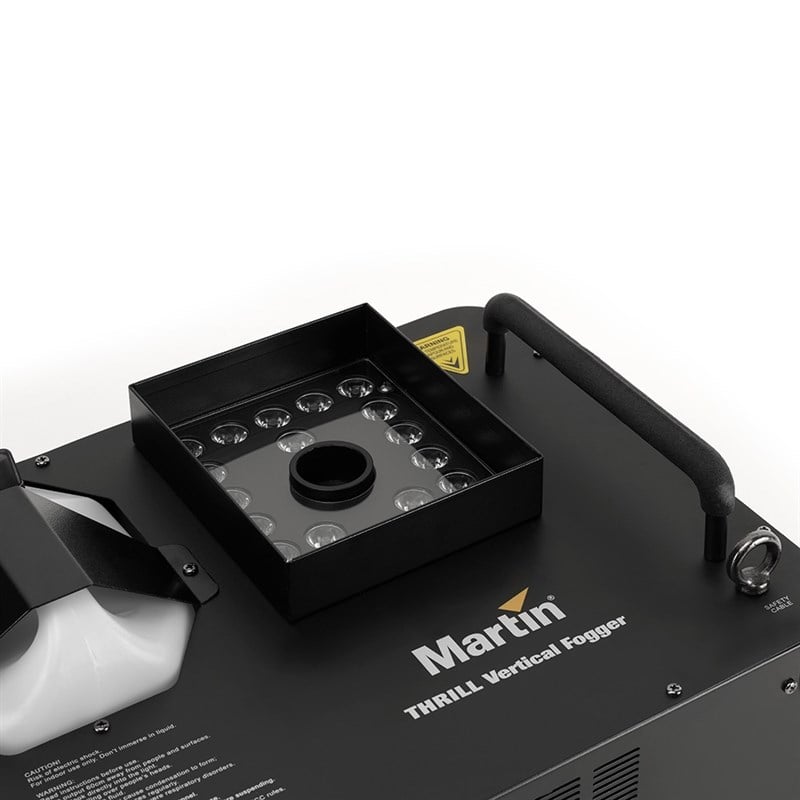

Light source: 21 x 3 W LEDs (7 each R, G, B)
Minimum LED lifetime: 30 000 hours (to >70% luminous output)*
*Figure obtained under manufacturer's test conditions
Construction
Housing: Steel
Color: Black
Heat exchanger: 1400 W, thermally protected
Fluid pump: Oscillating piston, high pressure
Fluid management: Fluid out sensing, sight glass

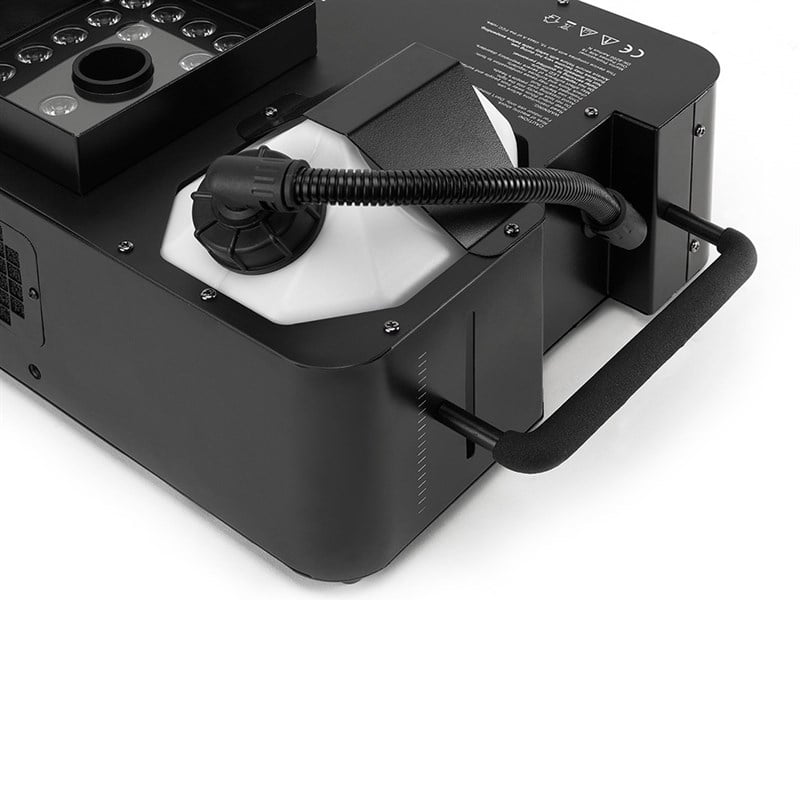

Fluid reservoir: 2.5 liter, removable

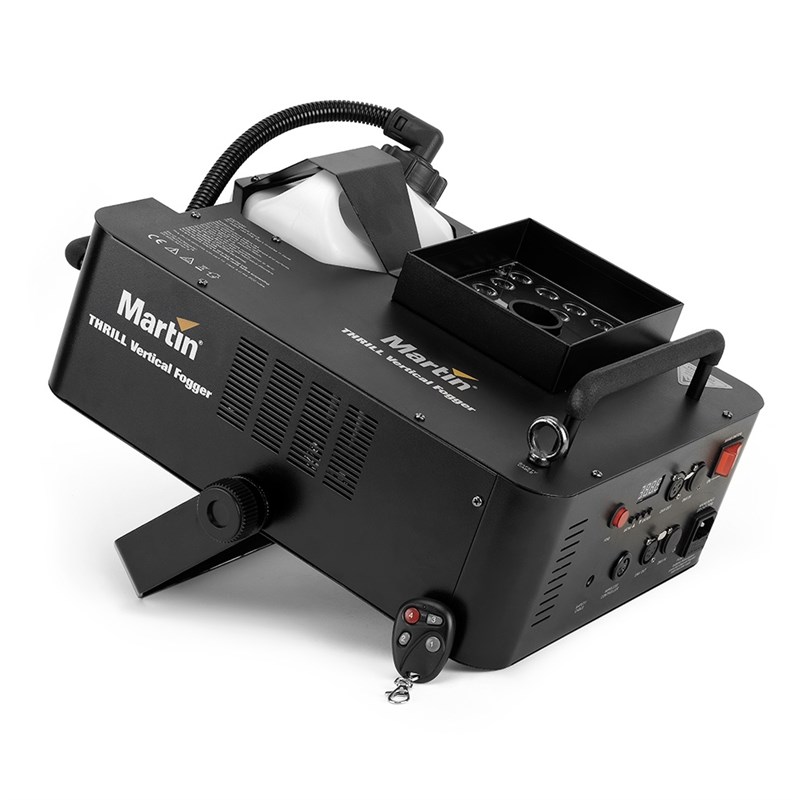

Hanging bracket: Integrated adjustable yoke
Safety attachment points: 2-threaded inserts, front/side (M8 eye-bolt included)
Wireless remote control unit (included): 4-channel, 30 m (100 ft.) range

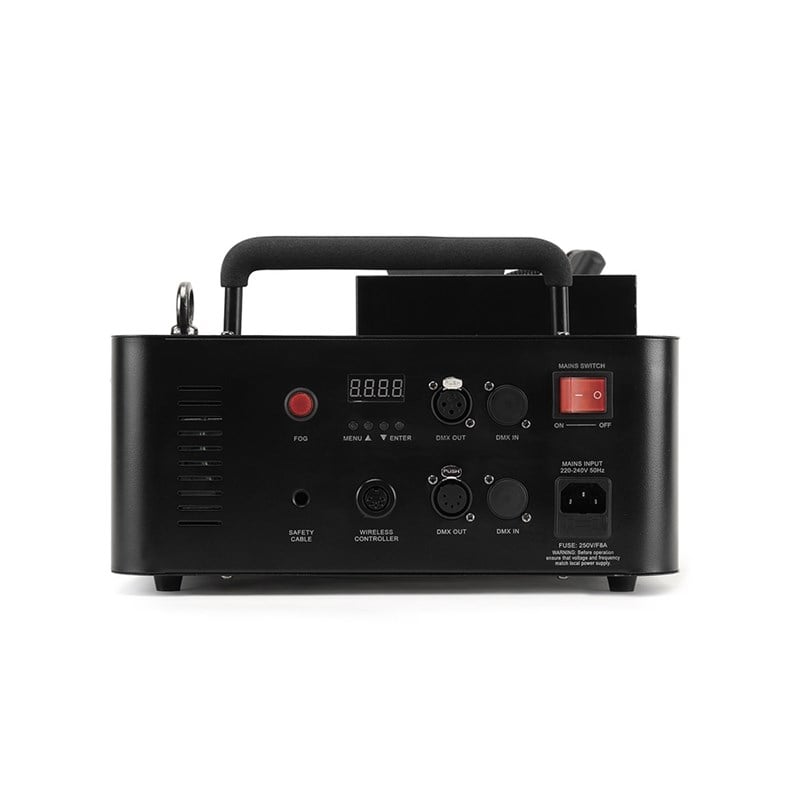

Connections
AC power: IEC male inlet, C14
DMX: 3- and 5-pin locking XLR
Wireless remote receiver: DIN 41524, 5-pin, 45°, 180° inlet
|
Electrical
AC power: 220-240 V nominal, 50/60 Hz
Main fuse: F 8 AL, 250 V
Typical power and current at 220 V: 1280 W, 5.8 A*
Typical power and current at 240 V: 1520 W, 6.3 A*
Thermal
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5°C (41°F)
Exterior surface temperature, steady state: 50°C (122°F)
Maximum nozzle temperature: 300° C (572°F)
Approvals
EU RED: EN 60335, EN 60598-2-17,
EN 62471, EN 62479, EN 62493,
EN 300220-1, EN 300220-2,
EN301489-1, EN 301489-3
US EMC: CFR Title 47, Part 15, Class B
Canadian EMC: ICES-003,Class B
Australia/NZ (pending): RCM
Included Items
Fluid reservoir, 2.5 l
Hanging bracket and hardware
M8 x 15 mm safety eye-bolt
Power cable, EU, 10 A, IEC C13 female, molded Schuko plug, 1.2 m (4 ft.)
Power cable, US, 10 A, IEC C13 female, molded NEMA 5-15P, 1.2 m (4 ft.)
Wireless transmitter, 4-channel: P/N 50480853
Wireless receiver, black, Vertical Fogger
Battery for wireless transmitter, 12 V, A23
Accessories
Approved fluids
RUSH® Fog Fluid
JEM® Pro Clean Supreme
*Various sizes available - contact your dealer or see 'Fluids' product pages for details
Installation hardware
Half-coupler clamp: P/N 91602005
Safety cable, SWL 60 kg (132 lb.), BGV C1/ DGUV 17, black: P/N 91604006
Ordering Information
THRILL Vertical Fogger, EU model: P/N 92215402
THRILL Vertical Fogger, US model: P/N 92215403
Installation
Mounting: Standing or hanging
Orientation: Up to +/- 45° from horizontal
Mounting points: Bracket for single/double rigging clamp, M12 or ½”
Clearance around machine: 600 mm (24 in.)
|
