Physical
Length: 258 mm (10.2 in.)
Width: 156 mm (6.2 in.)
Height: 305 mm (12.0 in.)
Weight: 5.7 kg (12.6 lbs.)
Dynamic Effects
Color mixing: RGBW
Electronic 'color wheel' effect: 33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random color
Electronic 'shutter' effect: Strobe effect, pulse effects, instant open and blackout
Electronic dimming: 0 - 100%, four dimming curve options
Pan: 540°
Tilt: 180°
Control and Programming
Control options: DMX, stand-alone
DMX channels: 12
Stand-alone trigger options: Music trig, auto trig
Stand-alone options: 4 pre-programmed shows
Stand-alone memory: 20 scenes
White balance control: RGB adjustment
Setting and addressing: Control panel with LCD display
Protocol: USITT DMX512/1990
Optics
Light source: 7 x 10 W RGBW Cree MC-E LEDs
Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
*Figure obtained under manufacturer's test conditions
Construction
Color: Black
Housing: High-impact flame-retardant thermoplastic
Protection rating: IP20
Installation
Mounting points: Hex bolts
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Connections
AC power in/thru: Neutrik PowerCon
DMX data in/out: 3-pin and 5-pin locking XLR
|
Electrical
AC power: 100-240 V nominal, 50/60 Hz
Typical total power consumption: 125 W
Power consumption figures are typical, not maximum. Allow for +/-10% variation.
Typical Power and Current
110 V, 60 Hz: 1.9 A, 125 W
230 V, 50 Hz: 1.0 A, 121 W
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
Thermal
Cooling: Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 430 BTU/hr.
Approvals
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: UL 1573
US EMC: 47 CFR Part 15 Class A
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class A
Australia/NZ: C-TICK N4241
Included Items
Power cable 1.5 m
Bracket for rigging clamp attachment: P/N 50480564
Related Items
RUSH™ Software Uploader 1: P/N 91611399
Ordering Information

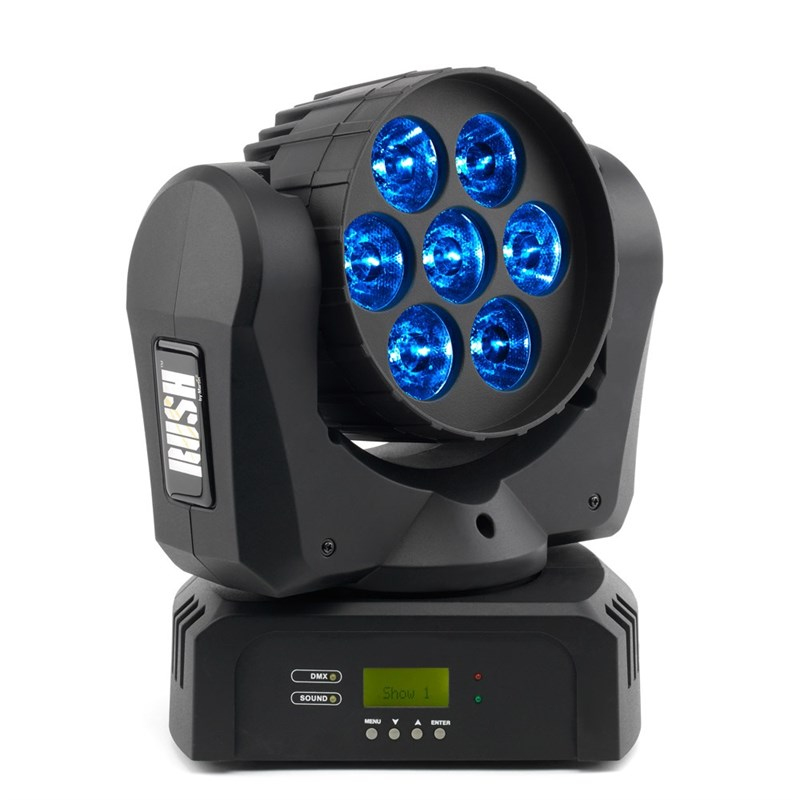

RUSH MH 2 Wash™ in cardboard box: P/N 90280020
|
