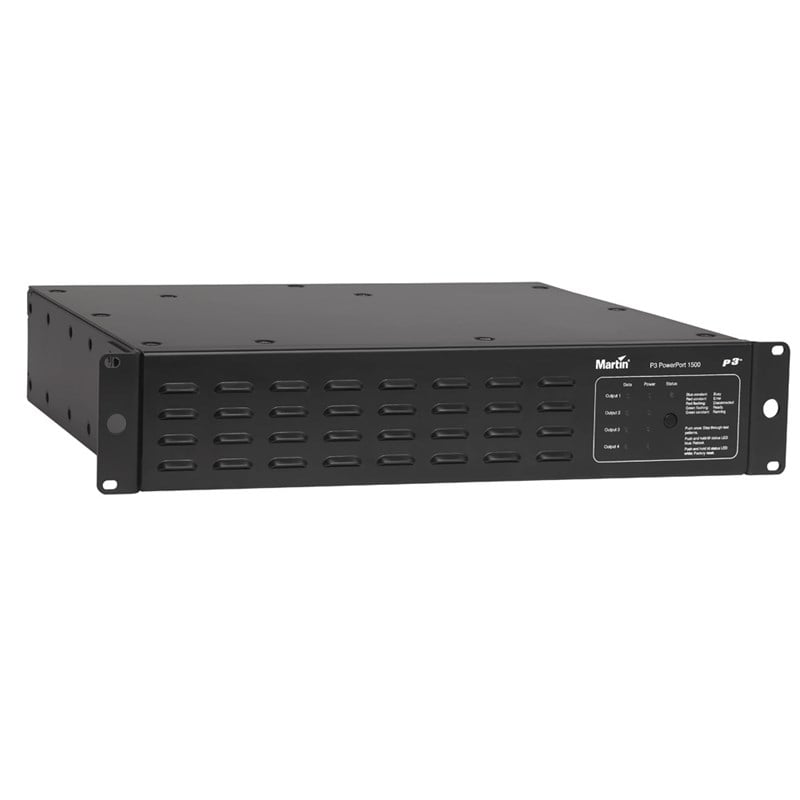

Martin P3 PowerPort 1500 Led Video Power Supply
The P3 PowerPort 1500 is an integrated power supply and data processor for the Martin™ range of creative LED video products, including the VDO Sceptron™, Exterior PixLines™, VC-Grids™, VC-Strips™ and VC-Dots™. When driven by one of Martin’s award-winning P3™ System Controllers, it combines stable power delivery with high-speed, high-capacity video processing. Setup and configuration are easy and intuitive.
Indoor power and data processor for all Martin™ creative LED video products Flexible integration: can be located remotely from video display products Easy cabling and configuration
Özellikler
P3 image processing technology Set-up and addressing via P3 System Controller family P3 input and thru to allow daisy-chaining 4 hybrid power/data output ports Wall-, truss- and rack-mountable Can be located up to 50 m away from the creative LED video products
Specifications
Physical
Depth: 335 mm (13.2 in.) Width: 482 mm (19.0 in.) Height (rackmount 2U): 88 mm (3.5 in.) Weight: 10 kg (22.1 lbs.)
Control/Programming/User
Addressing and status: Via P3 System Controller Mapping: Via P3 System Controller Firmware update: Via P3 System Controller Device status: Multicolor status LED Power output status: Four LEDs Data output status: Four LEDs Device test and reset: Pushbutton to call up local test patterns and reset device
P3 Signal Protocol
Signal type: Gigabit Ethernet Protocol: Proprietary Martin P3 Hot pluggable: Yes, electrically isolated at all connections Cable type: Ethernet, CAT 5e or better Cable length: Up to 100 m between any 2 devices, extendable with Ethernet switch
System integration
VC-Dot™ family via VC-Feeder™ Exterior PixLine™ family VDO Sceptron™ family VC-Grid™ family VC-Strip™ family Exterior Dot-HP™ family
Electrical
AC power: 100-240 V nominal, 50/60 Hz Power supply units: Auto-ranging electronic switch-mode Main fuses: 10 AT (slow blow) x 4 Typical total power consumption: 1540 W (including full load of connected display devices, all at full intensity)
Thermal
Cooling: Filtered forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 45° C Minimum ambient temperature (Ta min.): -20° C Total heat dissipation (calculated, +/- 10%): 530 BTU/hr. (not including display devices but with system at full load)
Accessories
Power Connector, Neutrik PowerCON NAC3MCA Power Connector, Neutrik PowerCON NAC3FCA G-clamp: P/N 91602003 Half-coupler clamp: P/N 91602005 Quick trigger clamp: P/N 91602007
Ordering Information
Martin P3 PowerPort 1500™: P/N 90721040
