Physical
Length: 566 mm (22.3 in.) head
Width: 472 mm (18.6 in.) 335 mm (13.2 in.) base
Height:731 mm (28.8 in.) head straight up 748 mm (29.5 in.) maximum
Weight: 37.2 kg (82.0 lbs.)
Dynamic Effects
Color mixing: CMY, independently variable 0 - 100%
Color temperature control: CTO, variable 6000 - 3200 K
Color wheel: 8 interchangeable dichroic filters + open, indexing, continuous rotation, random color
Aerial wheel: 5 interchangeable aerial effects + open, indexing, continuous rotation and shake
Breakup wheel: 5 interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake
FX wheel: Interchangeable static gobo and gobo animation effects
Prism: Interchangeable 4-facet rotating prism
Iris: 0 - 100%, pulse effects
Frost: Frost filter
Mechanical dimmer/shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout
Dimming options: Choice of four dimming curves
Zoom-focus linking system: 3-zone
Zoom: Motorized
Focus: Range varies with zoom angle, from 2 m / 6 m to infinity (approx.)
Pan: 540°
Tilt: 268°
Position correction system: Absolute position monitoring
Control and Programming
16-bit control: Aerial, breakup and texture effect rotation and indexing, focus, zoom, pan and tilt
Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
DMX channels: 26/34
Receiver: Opto-isolated RS-485
Firmware update: USB memory device or USB/DMX hardware interface over DMX link
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Optics
Zoom range: 10-44° (1:4)
Color temperature: 6000 K
Output: 26,000 lumens
Lamp
Type: 1000 W short-arc discharge
CRI (Color rendering index): >85
Average lifetime: 750 hours
Socket: PGJX36
Ballast: Electronic
Approved lamps: Osram Lok-it! 1000/PS Brilliant, Osram Lok-it! 1000W/PS VS1, Philips MSR Gold MiniFastFit 1000W
Service Utilities
Fixture identification: User-settable fixture ID number
Construction
Housing: UV-resistant fiber-reinforced composite
Color: Black
Reflector: Glass, cold light
Protection rating: IP20
Gobos
Size: E27 (Size E, max. image diameter 27 mm)
Approved material: Borosilicate 3.3 or better with dichroic or heavy matted aluminum coating (metal gobos not approved)
Outside diameter: 37.5 mm +0/- 0.2 mm (1.5 in. +0/- 0.01 in.)
Maximum image diameter: 27 mm (1.1 in.)
Maximum thickness: 1.1 mm +/- 0.1 mm (0.1 in. +/- 0.01 in.)
Installation
Mounting points: Eight quarter-turn locking points
Orientation: Any
Minimum distance to combustible materials: 0.3 m (1.0 ft.)
Minimum distance to illuminated surfaces: 3.4 m (11.2 ft.)
Connections
AC power input: Neutrik PowerCon
DMX and RDM data in/out: 5-pin locking XLR
USB memory devices: USB host socket
|
Electrical
AC power: 120-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Typical half-cycle RMS inrush current: 16.2 A
Typical Power and Current
120 V, 60 Hz: 1225 W, 10.3 A, PF 0.999
208 V, 60 Hz: 1190 W, 5.8 A, PF 0.996
230 V, 50 Hz: 1186 W, 5.2 A, PF 0.994
240 V, 50 Hz: 1194 W, 5.0 A, PF 0.993
Measurements made at nominal voltage. Allow for a deviation of +/- 10%. PF = power factor.
Thermal
Cooling: Filtered forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Maximum surface temperature, steady state, at 40° C ambient: 150° C (302° F)
Total heat dissipation (calculated, +/- 10% at 120 V, 60 Hz): 4180 BTU/hr
Approvals
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471
EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class A
Canadian safety: CSA E598-2-17 (CSA E60598-1)
Canadian EMC: ICES-003 Class A
Australia/NZ: C-TICK N4241
Included Items
Lamp (installed): P/N 97010346
Two Omega clamp attachment brackets with 1/4-turn fasteners: P/N 91602001
Safety and installation manual: P/N 35000258
Accessories
Power cable, 12 AWG, SJT, with Neutrik PowerCon NAC3FCA input connector, 3 m (9.9 ft.): P/N 11541503
Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804
Omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602001
T-shaped omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602008
Half-coupler (tube) clamp: P/N 91602005
G-clamp (suspension with yoke vertically downwards only): P/N 91602003
Quick-trigger clamp (suspension with yoke vertically downwards only): P/N 91602007
Safety cable, safe working load 70 kg (154 lbs.): P/N 91604004
Flightcase for 2 x MAC Viper: P/N 91510180
Related Items
Martin USB Duo™ DMX Interface Box: P/N 90703010
Martin™ RDM 5.5 Splitter: P/N 90758150
Spare Parts
Osram HTI 1000/PS Lok-it lamp: P/N 97010346
Air filter, head, MAC Viper (sold in multiples of 12): P/N 20800270
Ordering Information

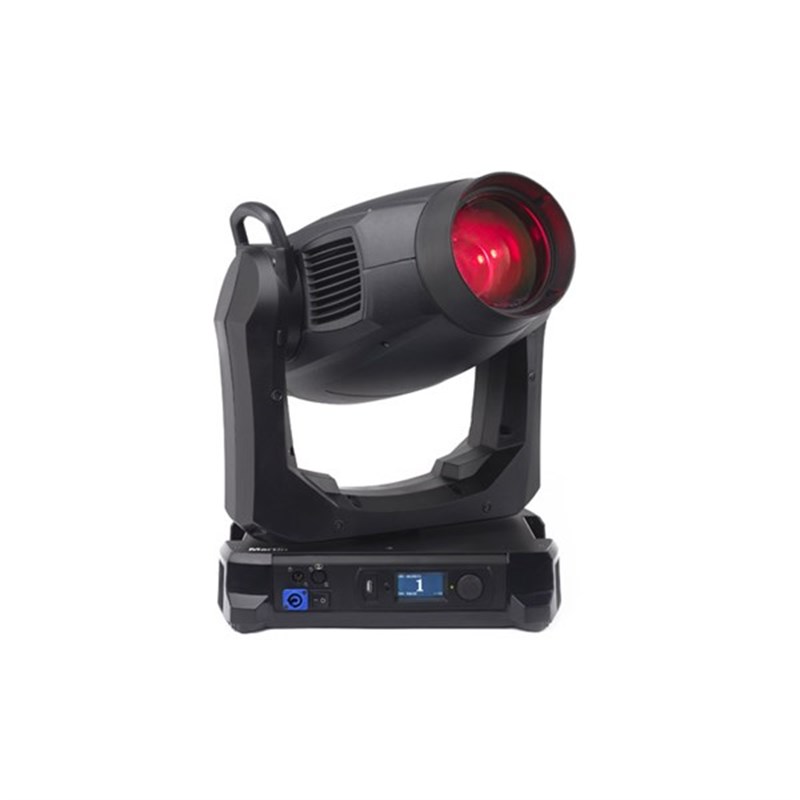

MAC Viper™ Profile in cardboard box: P/N 90233000
MAC Viper™ Profile in double flightcase: P/N 90233010
Shipping Information
In cardboard carton:
Shipping dimensions (LxWxH): 580 x 450 x 870 mm (22.9 x 17.8 x 34.3 in.)
Shipping weight: 41 kg (90.4 lbs.)
Quantity on pallet: 8 fixtures
Pallet dimensions (LxWxH): 1200 x 1000 x 1860 mm (47.3 x 39.4 x 73.3 in.)
Pallet weight (incl. pallet): 350 kg (771.7 lbs.)
|
