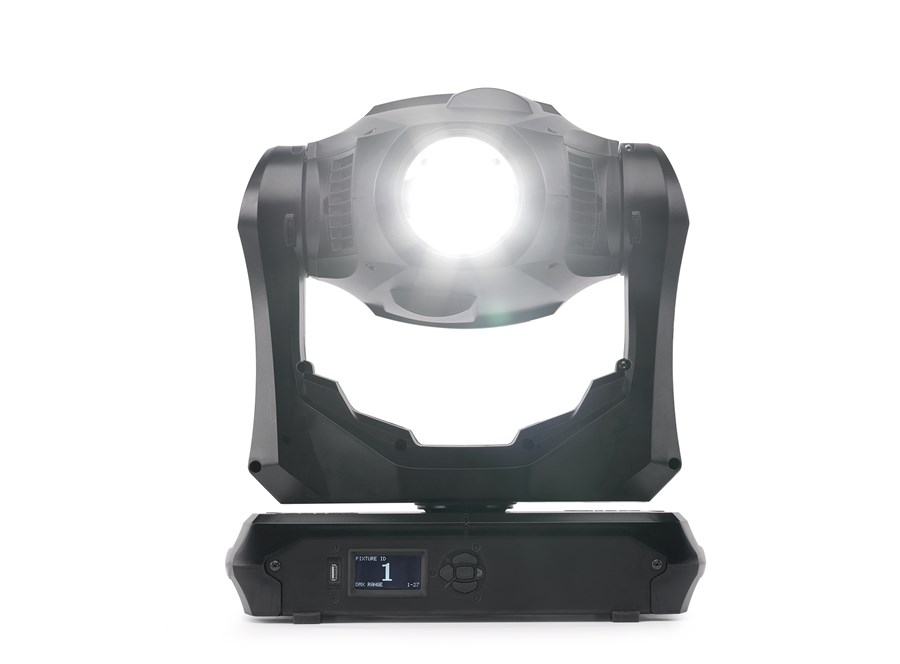

Martin MAC Quantum Profile Beyaz Led Spot
Bu son derece parlak LED profil armatürü, yüksek kaliteli beyaz ışığı hızlı,
pürüzsüz bir şekilde hem yüzeylerde hem de havada canlı gobo projeksiyonu ile yansıtır.
Bu ürünü hızlı kargo avantajı ile medumuzikmarket.com adresi üzerinden satın alabilirsiniz.
Teknik Özellikler
PHYSICAL
Length: 452 mm (17.8 in.)
Width: 431 mm (17.0 in.) across yoke
Height:
642 mm (25.3 in.) head straight up
648 mm (25.5 in.) maximum
Weight: 23.2 kg (51.1 lbs.)
DYNAMIC EFFECTS
Electronic dimming: Four dimming curve options
Color mixing: CMY, independently variable 0 - 100%
Color wheel: 6 color filters plus open
Beam effects: Rotating three-facet prism
Rotating gobo wheel: 6 interchangeable gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel: 10 gobos plus open, wheel indexing, rotation and shake
Iris: 0 - 100%, pulse effects
Zoom: Motorized
Shutter effect: Electronic, with variable speed regular and random strobe
Pan: 540°
Tilt: 268°
Pan and tilt speed: Adjustable via onboard control panel and DMX
Focus: Motorized, with zoom-focus tracking
CONTROL AND PROGRAMMING
Control systems: DMX
RDM: Implemented
Control resolution: 8-bit, with 16-bit control of dimming, gobo indexing, zoom, focus, pan and tilt
Setting and addressing: Control panel with backlit graphic display
DMX channels: 19/27
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: RS-485
Fixture software update: Direct using USB memory stick or via DMX link using Martin USB Duo™ DMX Interface Box
OPTICS
Zoom range: 12° - 36° (1:3)
Light source: 475 W LED engine
LED refresh rate: 3000 Hz
Default color temperature: 6000 K
Output: 12,700 lumens
Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
*Figure obtained under manufacturer´s test conditions
CONSTRUCTION
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP20
INSTALLATION
Mounting points: 4 pairs of quarter-turn locks
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m
Minimum distance to illuminated surfaces: 2.0 m
CONNECTIONS
AC power input: Neutrik PowerCon
DMX and RDM data in/out: 5-pin locking XLR
ELECTRICAL
AC power: 120-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current: 10.3 A
Typical power consumption, all effects static, zero light output: Approx. 50 W
Maximum total power consumption: 750 W
