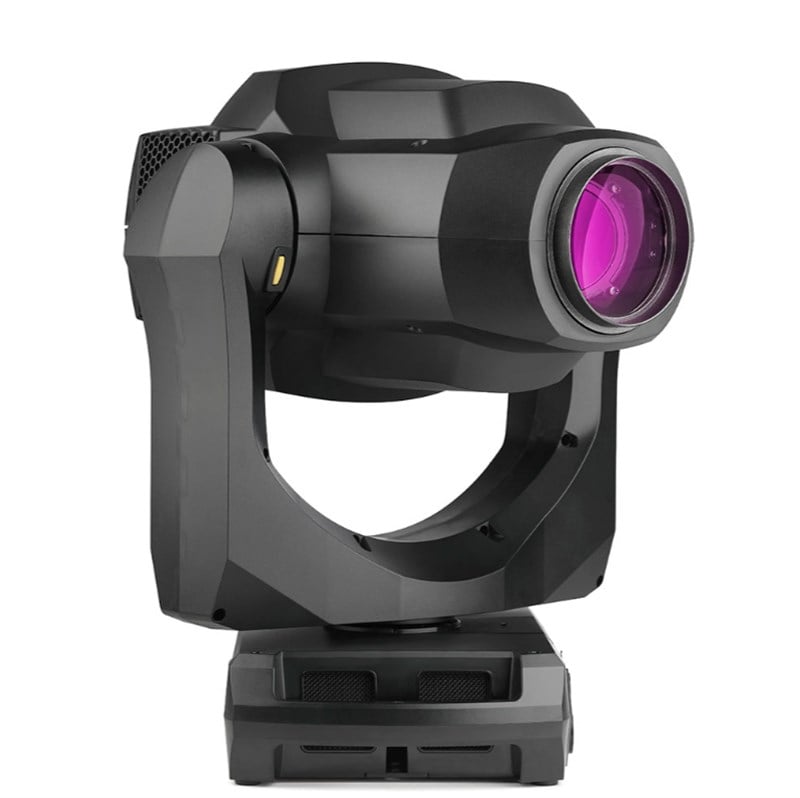

Martin MAC Allure 420W RGBW LED Moving Head Profile
Yüksek kalitesi ve en uygun fiyatıyla MAC Allure, medumuzikmarket.com'da
The MAC Allure™ Profile features a novel RGBW light engine with unique 7-segmented beam control. With instant color control and pixelated beam, the MAC Allure Profile enables dynamic projection and mid-air effects, previously not possible. The proprietary light engine sets new standards in compactness and efficiency, previously associated with larger, costlier fixtures. To ease programming and content creation, this is also the first lighting fixture to incorporate Martin's P3 control. The pixelated beam can still be controlled or pixel-mapped via DMX and Art-Net protocols, however, switching or cross-fading to P3 or vice versa is now instantly possible. Designed to support rental and install clients, the MAC Allure Profile is ideal for concert/touring, TV, corporate, houses of worship, concert venues, nightclubs, and cruise ships.
Özellikleri
First pixelated spot with light and color engine divided into seven full color pixels
Truly sustainable workhorse moving head
Integrated Martin P3 visual control as well as DMX, Art-Net and sACN incorporated onboard
Built for pixel mapping with an all solid state color mixing system, instant color and intensity response, and seven pixel beam technology
High and precise refresh rates ensure no flicker or banding on any broadcast application
Color calibrated system excels on subtle pastels and white tones to ensure consistent colors across fixtures
Boasts an extremely compact footprint in spite of its powerful performance features
SPECIFICATIONS
PHYSICAL
Length: 385 mm (15.2 in.)
Width: 410 mm (16.2 in.) across yoke
Height: 609 mm (24.0 in.) maximum 603 mm (23.8 in.) head straight up
Weight: 17.6 kg (38.8 lbs.)
Minimum center-to-center distance in side-by-side installation: 510 mm (20.1 in.)
DYNAMIC EFFECTS
Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
Color mixing: RGB(W), independently variable 0 - 100%
Color temperature control: Variable 2000 - 8000 K
Color wheel: Virtual, multiple colors, split colors and open, indexing, continuous rotation, random color
Rotating gobo wheel: 6 x interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake
Iris: Variable 0 - 100% including pulse effects
Zoom: Motorized
Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
Prism: 4 facet, fully indexed
Dimmer/shutter: 0 - 100% continuous electronic dimming, regular and random strobe and pulse effects, instant open and blackout
Dimming options: Choice of four dimming curves
Pan: 540°
Tilt: 268°
Position correction system: Absolute position monitoring
CONTROL AND PROGRAMMING
16-bit control: Dimming, color, rotating gobos, zoom, focus, pan and tilt
Setting and addressing: Control panel with backlit graphic display and 4 buttons or via DMX
DMX channels: 32/68
Fixture Identification: User-settable ID number
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485
Fixture software update: USB memory device or over DMX link
OPTICS
Zoom range: 12° - 36° one-tenth peak (1:3)
Light source: 7 x 60W RGBW LEDs
Total LED engine power: ~420 W
Minimum LED lifetime: 50,000 hours (to >80% luminous output)*
*Figure obtained under manufacturer's test conditions
PHOTOMETRIC DATA
Light engine luminous output: 14,000 lumens
Fixture luminous output: 6500 lumens
Calibrated default white: 6500 K
CRI (Color Rendering Index) : >80
CQS (Color Quality Scale): 88
TM-30 Rf (IES TM-30-15 Fidelity Index): 82
TM-30 Rg (IES TM-30-15 Gamut Index): 109
TLCI (Television Lighting Consistency Index): 82
CONSTRUCTION
Housing: High-impact flame-retardant thermo-plastic
Color: Black (white housing option available, made to order)
Protection rating: IP20
INSTALLATION
Mounting Parts: 2 pairs of 1/4-turn locks
Location: Dry location only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m (8 in.)
Minimum distance to illuminated surfaces: 1.0 m (3.3 ft.)
CONNECTIONS
AC power input/output: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector or NAC3FX-M connector)
DMX and RDM data in/out: 5-pin locking XLR
Ethernet data: Neutrik EtherCon in/out
ELECTRICAL
AC power: 120-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Power Consumption: 73 W (all effects static, zero light output)
Half-cycle RMS inrush current at 230 V, 50 Hz: 16.6 A
TYPICAL POWER AND CURRENT
Typical power data, extended color mode, all LEDs at 100% intensity:
100 V, 60 Hz: 4.8 A, 480 W, PF 0.99
120 V, 60 Hz: 4.0 A, 480 W, PF 0.99
208 V, 60 Hz: 2.4 A, 480 W, PF 0.97
230 V, 50 Hz: 2.1 A, 480 W, PF 0.97
240 V, 50 Hz: 2.0 A, 480 W, PF 0.97
Typical power data, calibrated mode, full intensity at 6500 K:
100 V, 60 Hz: 3.7 A, 370 W, PF 0.99
120 V, 60 Hz: 3.1 A, 370 W, PF 0.99
208 V, 60 Hz: 1.9 A, 370 W, PF 0.96
230 V, 50 Hz: 1.7 A, 370 W, PF 0.96
240 V, 50 Hz: 1.6 A, 370 W, PF 0.95
Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor
THERMAL
Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels) Maximum surface temperature, steady state, Ta=40° C: 75° C (167° F)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
APPROVALS
EU safety: EN 60598-2-17, EN 62471, EN62493
EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. E598-2-17
Canadian EMC: CAN ICES-003(B)/NMB-003(B); CAN ICES-005 (B) / NMB-005 (B)
Australia/NZ: RCM
