Physical
Length: 590 mm (23.3 in.)
Width: 395 mm (15.6 in.)
Height: 264 mm (10.4 in.)
Height including hanging bracket: 333 mm (13.9 in.)
Weight, dry: 15.1 kg (33.3 lbs.)
Weight, filled: 19.1 kg (42.1 lbs.)
Performance
Continuous effect output
Coverage volume: 800 m3 (28,252 ft3) per minute
Fluid consumption (max.): 140 ml per minute
Maximum operating time, maximum output, 4 l of fluid: 1.25 hours
Ready time: 9-minutes
Control and Programming
Control options: Integrated digital remote control, DMX, master/slave link mode
Control parameters: Continuous or timer-controlled output
Fog: Variable output control, 0-100%
DMX channels: 1
DMX compliance: ANSI E1.11 - USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM
Construction
Housing: Steel and aluminum
Hanging bracket: Integrated yoke with safety attachment point
Color: Black
Heat exchanger: 1500 W, thermally protected
Fluid pump: Oscillating piston, high pressure
Fluid management: Fluid out sensing, sealed for transportation
Fluid reservoir: 4 or 5 l drop-in reservoir with quick-connect fitting
External fluid control: Fluid sensing
Remote control: Integrated Digital Remote with 3 m (9.84 ft.) cable, 3-pin XLR
Installation
Mounting: Standing or hanging
Orientation: Up to +/- 40° from horizontal
Clearance around machine: 100 mm (4 in.)
Connections
AC Power: Neutrik powerCON TRUE1
DMX and link mode in/out: 5-pin locking XLR
Remote control: 3-pin locking XLR
Firmware: AVR socket
Ordering Information

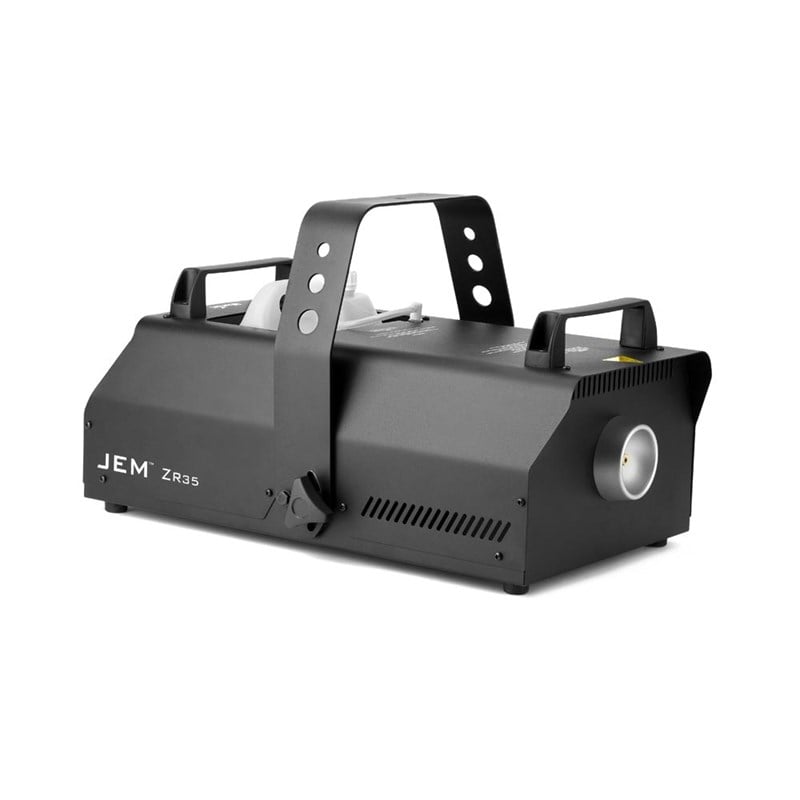

JEM ZR35, EU: P/N 92215340
JEM ZR35, US: P/N 92215350
Thermal
Minimum ambient temperature (Ta min.): 5° C (41° F)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Exterior surface temperature, steady state: 30° C (86° F)
Maximum nozzle temperature: 290° C (554° F)
|
Electrical
EU model:
AC power: 220-240 V nominal, 50/60 Hz
Main fuse: 10 AT (slow blow), 250 V
Typical power consumption: 1500 W, 6.8 A*
US model:
AC power: 100-130 V nominal, 50/60 Hz
Main fuse: 15 AT (slow blow), 125 V
Typical power consumption: 1450 W, 12.1 A*
*Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Approvals
EU model
EU safety: EN 60335-1+A15, EN 62233
EU EMC: EN 61000-6-3
EU immunity: EN 61000-6-1
Australia/NZ (pending): RCM
US model
US safety: UL 998
CE ETL C US Intertek
Included Items
Fluid reservoir, 4 l: P/N 34300523
JEM ZR Series Integrated Digital Remote Control: P/N 92765048
Power input cable, EU, PowerCON TRUE 1, stripped ends, 3 m (9.8 ft.): P/N 11501043
Power input cable, US, 15A, PowerCON TRUE 1, molded NEMA 5-15P, 3 m (9.8 ft.): P/N 11501045
Accessories
JEM ZR35 Ducting System with 5 m (16.4 ft.) 4" flexible ducting: P/N 92625013
JEM External Fluid Reservoir Kit, 25 l: P/N 92620035
Approved Fluids*
JEM Pro-Fog Fluid, Quick Dissipating
JEM Pro-Fog Fluid
JEM Pro-Fog Fluid, High Density
RUSH & THRILL Fog Fluid
Martin Pro-Clean and Storage Fluid
Approved Discontinued Fluids*
Pro Smoke Studio (DX)
Pro Smoke Super (ZR)
Pro Smoke High Density (SP)
I-Fog Fluid
Regular DJ Fluid (DJ)
RUSH Fog Fluid
RUSH ELX Smoke Fluid
Martin Pro Clean Supreme
Installation hardware
Half-coupler clamp: P/N 91602005
G-clamp (vertical hanging suspension only): P/N 91602003
Quick trigger clamp (vertical hanging suspension only): P/N 91602007
Safety cable, SWL 60 kg, BGV C1/ DGUV 17, black: P/N 91604006
Service tools
Epsilon 5 AVR Programmer: P/N 50502004
Temperature Calibration Box: P/N 92620005
*Various sizes available - contact your dealer or see 'Fluids' product pages for details
|
