Physical
Length: 565 mm (22.3 in.)
Width: 271 mm (10.7 in.)
Height: 298 mm (11.8 in.)
Height with rigging kit: 294 mm (11.6 in.)
Dry weight: 15 kg (33.1 lbs.)
Filled weight: 17.5 kg (38.6 lbs.)
Performance
Coverage volume: 5500 m3 (194,231 ft3) per minute
Operating time with 2.5 l fluid (minimum/maximum): 10.5/65 hours
Operating time: Continuous
Ready time: 6-minutes
Ambient noise: Silent mode
Control and Programming

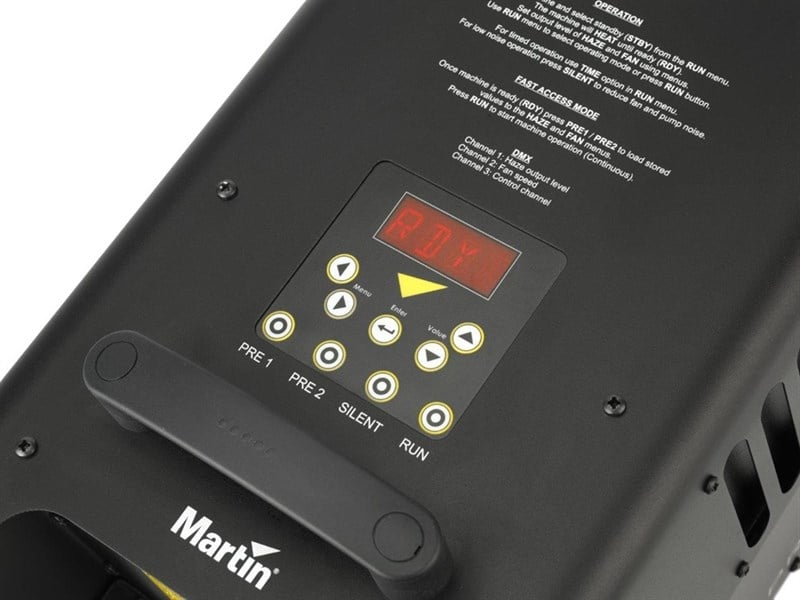

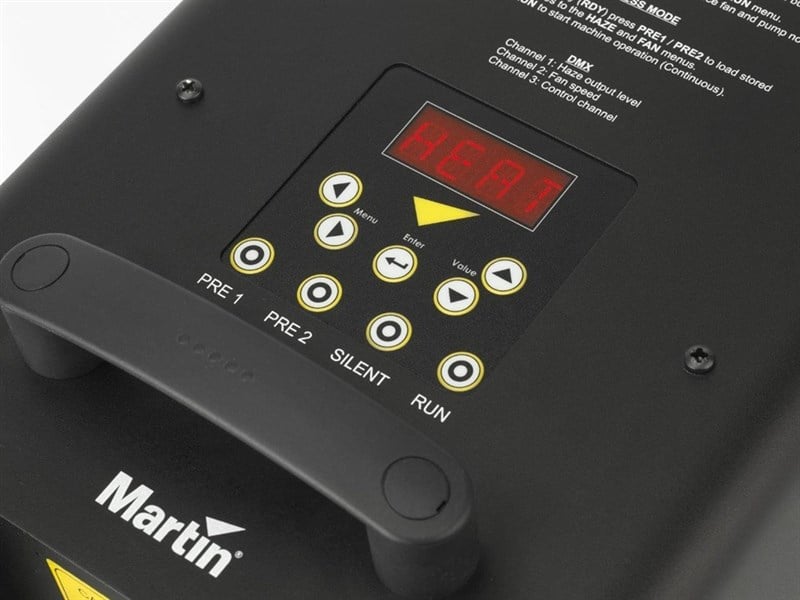

Control options: Digital control panel, programmable fast access keys, DMX, optional digital remote control,
master/slave link mode
Control parameters: Continuous or timer-controlled output
Haze and fan: Independent variable output, 0-100%
DMX channels: 3 (Haze, Fan, Control)
Self cleaning cycle: Battery powered automatic shutdown, manually engaged, or DMX trigger
DMX compliance: ANSI E1.11 - USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM
Construction
Housing: Steel and aluminum
Color: Black
Heat exchanger: 600 W trackless heat exchanger, thermally protected
Blower fan: Integrated, 200-2500 RPM
Fluid pump: Oscillating piston, high pressure
Fluid management: Fluid out sensing, sealed for transportation

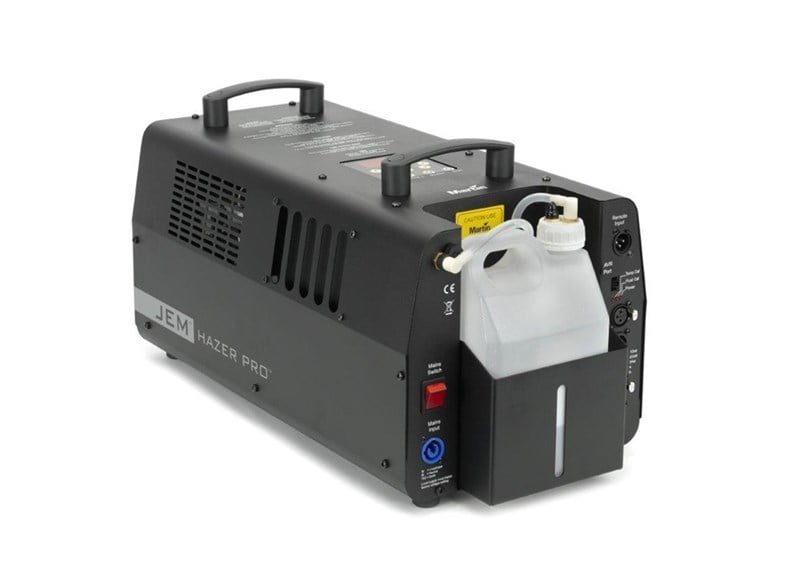

Fluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting
Installation
Mounting: Standing or optional flying kit
Orientation: Up to +/- 30° from horizontal
Clearance around machine: 100 mm (4.0 in.)

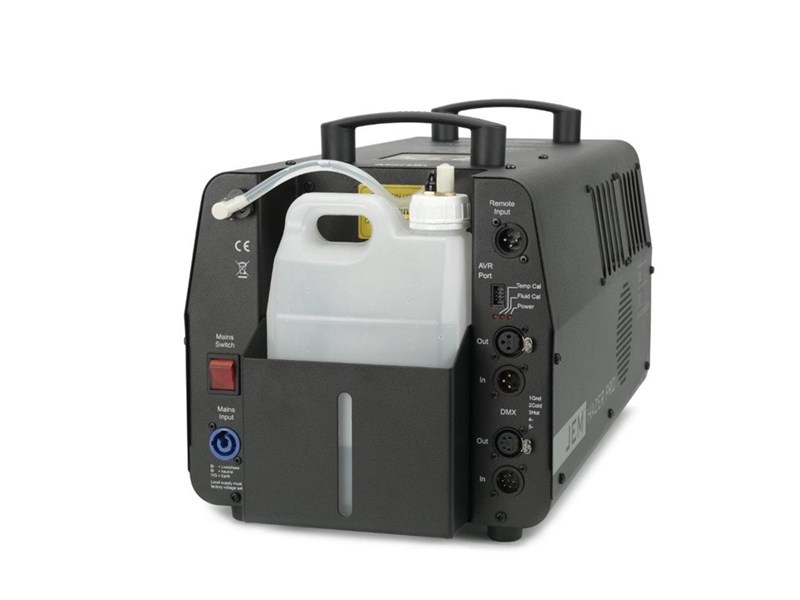

Connections
AC power: Neutrik powerCon
DMX, link mode in/out: 3- and 5-pin locking XLR
Remote control: 3-pin locking XLR
Firmware: AVR socket |
Electrical
EU Model
AC power: 220-240 V, 50/60 Hz
Main fuse: 6.3 AT (slow blow), 250 V
Typical power and current: 675 W, 3.1 A*
US Model
AC power: 100-130 V, 50/60 Hz
Main fuse: 10 AT (slow blow), 125 V
Typical power and current: 675 W, 6 A*
*Measurements made at nominal voltage. Allow for a deviation of +/- 10%
Thermal
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min): 5° C (41° F)
Exterior surface temperature, steady state: 30° C (86° F)
Maximum nozzle temperature: 290° C (554° F)
Approvals
EU EMC: EN 61000-6-3
EU safety: EN 60 335-1+A15, EN 62233
EU Immunity: EN 61000-6-1
US safety (pending): UL 998
Canadian Safety (pending): CSA C22.2 No. 104-01
Australia/NZ (pending): RCM
Calibration factors have been developed and approved by the Actors’ Equity Association and
the Broadway League for use in measuring theatrical haze with the JEM Hazer Pro and JEM C-Plus Haze Fluid:
Included Items
Fluid reservoir 2.5 l: P/N 34300521
Power input cable, EU, powerCON, stripped ends, 2.5 m (8.2 ft.): P/N 11501041
Power input cable, US, powerCON, molded NEMA 5-15P, 2.5 m (8.2 ft.): P/N 11501042
Accessories
JEM Hazer Pro, Digital Remote Control: P/N 92765042
JEM Hazer Pro, Flying Kit: P/N 92610002
JEM External Fluid Reservoir Kit, 25 l: P/N 92620035
Approved Fluids*
JEM C-Plus Haze Fluid
Martin Pro Clean and Storage Fluid
Approved Discontinued Fluids*
Martin Pro Clean Supreme
Service Tools
Epsilon 5 AVR Programmer: P/N 50502004
Temperature Calibration Box: P/N 92620005
*Contact your dealer or see 'Fluids' product pages for details
Ordering Information
JEM Hazer Pro, US: P/N 92225945
JEM Hazer Pro, EU: P/N 92225940
|
