Marka : Martin
Fiyat : $0.00(KDV Dahil)

Black powder-coated steel adapter and three long 150 mm (6 in.) x 5 m (16.4 ft.)



Martin JEM Ducting Kit 3 Yollu Havalandırma Kiti

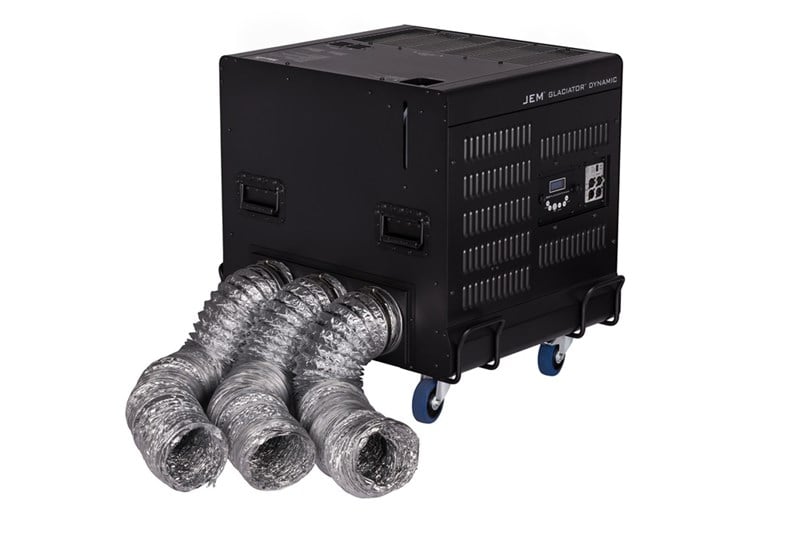

The Glaciator Ducting Kit is a 3-way low-fog diverter kit that handily affixes to the fog outlet of the Glaciator. The included ducting adaptor is made of steel and finished in a matte black powder coating. The Ducting Kit includes three 150 mm (6 in.) x 5 m (16.4 ft.) flexible ducting hoses and allows the Glaciator to be located off-stage and for low-fog to be transported to the performance area and evenly distributed. If desired, individual outlet ports on the adaptor can be sealed off and low-fog can be ducted to any or all three of the ports, up to a maximum distance of 10 m (32.8 ft.). The optional Fog Blade system (available separately) can be employed for even more control and dispersion of the low-fog effect.



Smaller, quieter, and capable of taking low-fog to more locations—the live event industry’s leading low-fog machine returns with its most significant upgrade in over a decade. Martin JEM Glaciator Dynamic is your complete solution for creating dense, billowy clouds of low-lying fog in any venue without the use of industrial gases or ice. Achieve lush fog on stage with longer-lasting effects. Reduce noise with near-silent operation, perfect for theatrical applications. Enjoy more room backstage with an all-new, more compact design. And tour the world with an updated universal power supply. With a full range of premium accessories, three low-fog fluid types to choose from, and streamlined user controls, you can create dramatic atmospheric effects for your production in moments. Just plug in, set the stage, and amaze.



*Ürün görselinde bulunan aksesuarlar opsiyoneldir.



Completely self-contained low-fog system—no industrial gases or ice

Closed-loop refrigeration for colder, dense, longer-lasting low-fog

Ultra-quiet operation, including low ambient noise in standby



Features

All-in-one, self-contained solution without the need for external fans, industrial gas tanks, or ice

All-new Electronic Inverter Drive for improved effects and lower ambient noise

Fill your stage with low-fog thanks to continuous 80 m³ (2825 ft³) per-minute output

Even smaller, compact service-friendly design: 785 x 648 x 769 mm (30.9 x 25.5 x 30.2 in.)

World touring capabilities via a universal power supply that operates at 208-250 V, 50/60 Hz

Onboard industry standard DMX connectivity (both 3- and 5- pin) for control and integration

Intuitive user interface with Fast Access Keypad for fast, easy manipulation of low-fog output

180° Low-fog outlet engineered for a smooth, consistent low-fog field

Achieve diverse effects with three premium fluid options

Simple, one-touch fluid priming

5 l internal fluid reservoir provides an hour of continual consistent low-fog output

(Optional Accessory) JEM Glaciator Dynamic Ducting Kit for 3-way low-fog diversion

(Optional Accessory) JEM Glaciator Dynamic Fog Blade for creative output points and waterfall-like low-fog effects

(Optional Accessory) JEM External Fluid Reservoir—25 l low-fog fluid reservoir for hours of uninterrupted use

(Optional Accessory) Softcover—custom made of reinforced ballistic nylon protects the machine in transit








JEM Glaciator Dynamic Ducting Kit.
Transport low-fog to greater distances within your performance area with the JEM Glaciator Dynamic Triple Ducting Kit. The ducting kit includes a black powder-coated steel adapter and three long 150 mm (6 in.) x 5 m (16.4 ft.) flexible ducting hoses that let you evenly distribute low-lying fog directly to your desired output point. Simply place the JEM Glaciator Dynamic in a convenient off-stage location and attach the 3-way adapter to the low-fog outlet. Add one or more of the ducting hoses and transport an even sheet of dense low-fog to your scene. Available separately.

JEM Glaciator Dynamic Fog Blade.
Discretely channel low-fog and create waterfall-like low-fog effects with the JEM Glaciator Fog Blade. The Fog Blade is a wedge-shaped extension for the Glaciator Ducting Kit that fits out of sight beneath stage sets, drapery, or mounts under floors. A convenient carrying handle makes it easy to quickly reposition during scene changes, while rubberized non-slip feet protect delicate surfaces. You can even suspend the Fog Blade overhead to create a smooth waterfall of low-fog that pours down onto the stage. With the Fog Blade, you get more precision control over the look and placement of your low-fog effects. Available separately.


Tech Specs

Physical

Length: 785 mm (30.91 in.)

Width: 648 mm (25.52 in.)

Height: 769 mm (30.29 in.)

Height without castors: 636 mm (25.06 in.)

Weight, dry: 124 kg (274 lb.)

Weight, filled: 129 kg (285 lb.)



Performance

Coverage volume: 80 m3 (2825 ft3) minute

Fluid consumption, continuous maximum output: 70 ml minute



Control and Programming

Control options: Integrated digital remote control, fast access keypad, DMX/RDM, master/slave

Control parameters: Continuous or timer-controlled output

Low-Fog/Fan: Proportionally controlled output, 0-100%

Setting and addressing: Control panel with backlit LCD display and 6-button user interface or via RDM

DMX Channels: 1/2

DMX Compliance: ANSI E1.11 - USITT DMX512-A

RDM Compliance: ANSI/ESTA E1.20 RDM



Construction

Housing: Steel

Color: Black

Portability: Removable castors

Protection rating: IP20

Heat exchanger: 2500 W, thermally protected

Fluid pump, low-fog fluid: Oscillating piston, high-pressure

Fluid pump, waste condensate: Peristaltic pump, low-pressure

Fluid management, low-fog fluid: Fluid out sensing, sealed for transportation

Fluid management, waste condensate: Visual sight gauge, LED illuminated reservoir

Fluid reservoir, low-fog fluid: 5 l drop-in reservoir w/ quick connect fitting or external source

Fluid reservoir, waste condensate: 0.5 l drop in reservoir w/ quick connect fitting or external source

Refrigeration: Closed loop system, variable speed condenser fans, electronic expansion valve

Refrigeration control: PWM electronic control

Remote control: Integrated digital remote with 5 m (16.4 ft.) cable, 3-pin XLR

Remote control cable length (max.): 25 m (82 ft.)

Optional Ducting Kit: Black, steel, triple ducting adaptor with 3x 5 m (16.4 ft.) 150 mm (6 in.)

OD flexible ducting hoses and includes 3x stainless steel duct clamps, worm drive, hex screw

Optional Fog Blade: Black, steel, 150 mm (6 in.) outlet, includes 1x stainless steel duct clamp, worm drive, hex screw

Optional External Fluid Kit: 25 l sealed fluid reservoir, 1.5 m (4.9 ft.) 8 mm OD, 6 mm ID, silicone tubing, pipetta fitting

Optional Softcover: Black, heavy duty PVC external, brushed nylon padding interior,

hook and loop fastener system, 5 in. x 8 in. transparent PAL transit pocket



Installation

Orientation: Horizontal Only

Location: Dry location only

Clearance around machine: 60 cm (24 in.)

Ducting: Optional, max length 10 m (32.8 ft.)



Connections

AC Power: Hardwired flexible mains cable, 3 x 4.0 mm2 (6 AWG), 3.3 m (10.8 ft.)

DMX/RDM in/out: 3- and 5-pin locking XLR

Remote control: 3-pin locking XLR

Firmware: AVR socket

Fluid inlet, low-fog fluid: Brass barbed hose tail, 6 mm

Fluid outlet, waste: Brass barbed hose tail, 6 mm

Electrical

AC power: 208 - 250 V single phase, 50/60 Hz

Typical power consumption, standby: 10 W

Typical power consumption, maximum: 3500 W

Power supply unit: Auto-ranging electronic switch-mode

Integrated resettable circuit breaker: 25 A, 240 V max., 50/60 Hz

Half-cycle RMS inrush current at 230 V, 50 Hz: 20 A



Typical Power and Current

208 V, 60 Hz: 3350 W, 17.8 A, PF 0.96*

220 V, 50 Hz: 3350 W, 16.9 A, PF 0.96*

230 V, 50 Hz: 3350 W, 15.6 A, PF 0.96*

240 V, 50 Hz: 3350 W, 15.2 A, PF 0.96*

*Figures are typical, not maximum. Measurements made at nominal voltage, allow for a deviation of +/- 10%.

PF = Power Factor



Thermal

Cooling: Forced air, low noise

Maximum ambient temperature (Ta max.): 35° C (95° F)

Minimum ambient temperature (Ta min.): 5° C (41° F)

Exterior surface temperature, steady state: 30° C (86° F)

Total heat dissipation, idle (calculated, +/- 10%): 2241 BTU/hr.

Total heat dissipation, full load (calculated, +/- 10%): 11430 BTU/hr.



Acoustic

Noise level average, maximum low-fog output: 62.76 dBa

Noise level average, standby: 40.47 dBa



Approvals

EU Safety: EN 60335-1+A11

EU EMC: EN 61000-6-1, EN 62233

EU Immunity: EN 61000-6-1+A1



Included Items

Fluid reservoir 5 l: P/N 34300506

Fluid reservoir 0.5 l: P/N 34300515

JEM Glaciator Digital Remote Control: P/N 92765050



Accessories

JEM Glaciator Dynamic, Ducting Kit: P/N 92625020

JEM Glaciator Dynamic, Fog Blade: P/N 92625025

JEM Glaciator Dynamic, Softcover: P/N 92625030

JEM External Fluid Reservoir Kit, 25 l: P/N 92620035



Approved Fluids

JEM™ Low-Fog Fluid, Quick Dissipating

JEM™ Low-Fog Fluid

JEM™ Low-Fog Fluid, High Density

Martin® Pro-Clean and Storage Fluid

Various sizes available - contact your dealer or see 'Fluids' product pages for details



Service Tools

Epsilon 5 AVR Programmer: P/N 50502004

Temperature Calibration Box: P/N 92620005



Continuous effect output

Ready time (minimum): 5-minutes

Ready time (optimal): 7-minutes



Ordering Information

JEM™ Glaciator™ Dynamic: P/N 92210525
