| Physical
Length: 532 mm (21 in.)
Width: 224 mm (8.9 in.)
Height: 278 mm (11 in.)
Height with hanging bracket: 296 mm (11.7 in.)
Weight, dry: 8.5 kg (18.8 lbs.)
Weight, filled: 11 kg (24.3 lb.)
Performance
Coverage volume: 3800 m3 (134,196 ft3) per minute
Operating time with 2.5 l of fluid (min/max): 20/70 Hours
Continuous effect output
Ready time: 1-minute
Control and Programming
Control options: Digital control panel, DMX, optional digital remote control,
master/slave link mode
Control parameters: Continuous or timer-controlled output
Haze and fan: Independent variable output, 0-100%
DMX channels: 3 (Haze, Fan, Control)
Self-cleaning cycle: Manually engaged or DMX trigger
DMX compliance: ANSI E1.11 - USITT DMX512-A
Construction
Housing: Steel & aluminum
Color: Black
Heat exchanger: 900 W, thermally protected
Blower fan: Integrated, 200-2500 RPM
Airflow control: Optional Air Director
Fluid pump: Oscillating piston, high pressure
Fluid management: Fluid out sensing, sealed for transportation
Fluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting
Installation
Mounting: Standing or optional hanging kit
Orientation: Up to +/- 30° from horizontal
Clearance around machine: 100 mm (4 in.)
Connections
AC Power: Neutrik PowerCON
DMX, link mode in/out: 5-pin locking XLR
Remote control: 3-pin locking XLR
Firmware: AVR socket
Service Tools
Epsilon 5 AVR Programmer: P/N 50502004
Temperature Calibration Box: P/N 92620005
*Various sizes available - contact your dealer or see 'Fluids' product pages for details
Ordering Information

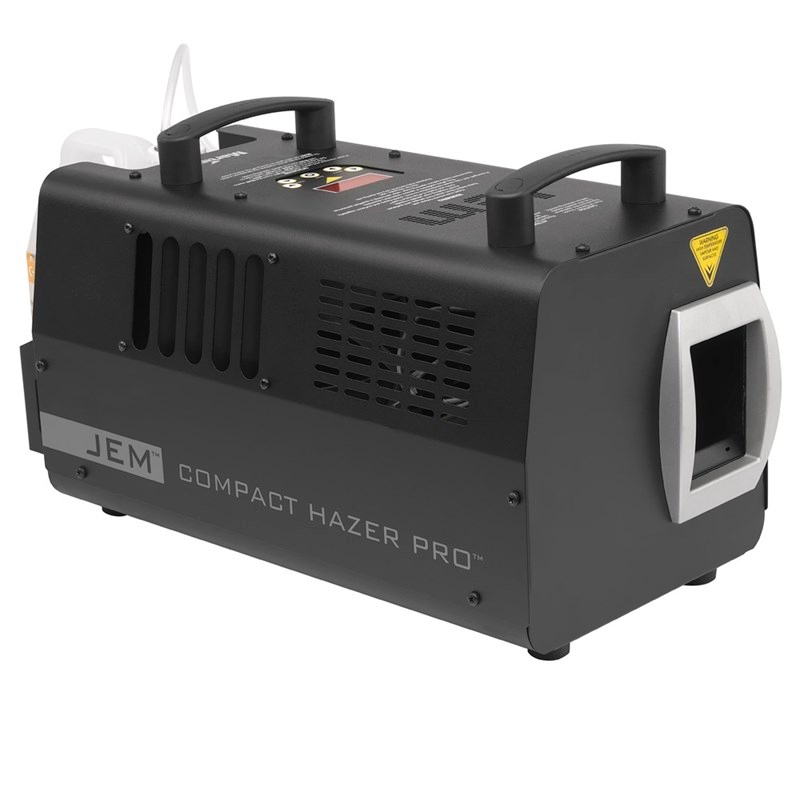

JEM Compact Hazer Pro, EU: P/N 92225950
JEM Compact Hazer Pro, US: P/N 92225960
|
Electrical
EU model
AC Power : 220-240 V, 50/60 Hz
Main fuse: 6.3 AT (slow-blow), 250 V
Typical power and current: 1010 W, 4.4 A*
US model
AC Power: 110-120 V, 50/60 Hz
Main fuse: 10 AT (slow-blow), 125 V
Typical power and current: 1042 W, 8.68 A*
*Measurements made at nominal voltage. Allow for a deviation of +/- 10%:
Thermal
Minimum ambient temperature (Ta min): 5° C (41° F)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Exterior surface temperature, steady state: 30° C (86° F)
Maximum nozzle temperature: 290° C (554° F)
Approvals
EU model
EU safety: EN 60335-1+A15, EN 62233
EU EMC: EN 61000-6-3
EU Immunity: EN 61000-6-1
Australia/NZ (pending): RCM
US model
US Safety (pending): UL 998
Canada safety (pending): CSA C22.2 No 104-01
Calibration factors have been developed and approved by the Actors’ Equity Association and
the Broadway League for use in measuring theatrical haze with the JEM Compact Hazer Pro and JEM C-Plus Haze Fluid
Included Items
Fluid reservoir, 2.5 l: P/N 34300521
Power input cable, EU, powerCON, stripped ends, 2.5 m (8.2 ft): P/N 11501041
Power input cable, US, powerCON, molded NEMA 5-15P, 2.5 m (8.2 ft): P/N 11501042
Accessories
JEM Compact Hazer Pro, Air Director: P/N 92625011
JEM Compact Hazer Pro, Digital Remote Control: P/N 92765040
JEM Compact Hazer Pro, Flying Kit: P/N 92610003
JEM External Fluid Reservoir Kit, 25 l: P/N 92620035
Approved fluids*
JEM C-Plus Haze Fluid
Martin Pro Clean and Storage Fluid
Approved Discontinued Fluids*
Martin Pro Clean Supreme
Installation Accessories
Half-coupler clamp: P/N 91602005
G-clamp (vertical hanging suspension only): P/N 91602003
Quick trigger clamp (vertical hanging suspension only): P/N 91602007
Safety cable, SWL 60 kg (132 lb.), BGV C1/ DGUV 17, black: P/N 91604006
|
