VC Grid Led Video Modülü

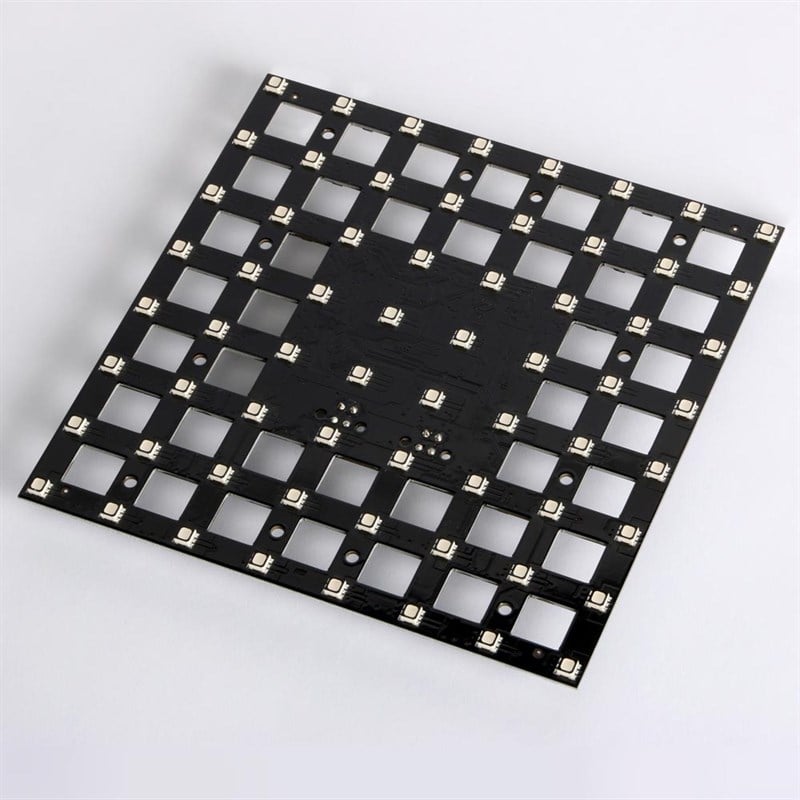

The VC-Grid is a small, 200 x 200 mm LED video module with a 25 mm pixel pitch. Useful in creating customized LED video solutions with maximum artistic flexibility and a minimum of effort, the VC-Grid’s compact size makes it extremely suitable for integration into stage designs, set elements, creative ceilings, lobbies and much more. Used with or without a front diffuser, multiple VC-Grids can be combined in a countless variety of ways for ultimate design freedom. A combined power/data cable allows VC-Grids to be daisy-chained for easy setup and less cabling.
Wide range of pixel pitches to suit every application Easy cabling, mapping and configuration Bright and fully calibrated for optimal consistency
Özellikler
64 individually controllable pixels 4000 nits of brightness High-quality 16-bit per color image processing technology Pixel-level brightness and color calibration for optimal image quality P3/DMX controllable (automatic protocol detection) Intuitive mapping and addressing via P3 System Controller Combined power/data input (single cable for power and data input) Combined power/data thru (to daisy-chain multiple VC-Grids) Available in RGB, cool white, medium white and warm white Supported by integrated power and data processor (P3 PowerPort 1500) and simple cabling system Custom designs available on request (pixel pitch and module dimensions)
Specifications
Physical
Length: 200 mm (7.9 in.)* Width: 200 mm (7.9 in.)* Height: 18 mm (0.7 in.) Weight: 140 g (0.3 lbs.) *Including 15 mm board-to-board gap
Control/Programming/User
Control options: Martin P3 System Controller™ via Martin P3 PowerPort 1500™ and/or DMX Control modes: Pixel and module Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color Protocol detection: Automatic Setting and addressing: P3 System Controller or RDM-compliant controller DMX channels (RGB): 192 (pixel mode) or 3 (module mode) Color and intensity calibration: Pixel-level Firmware update: Via P3 System Controller DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Device status: Multi-color visual indication Device test and reset: Pushbutton to call up local test patterns and reset device
Video Processing / Photometric Data
Brightness control Gamma correction and control Color temperature control Color gamut control Calibration processing Synchronization Pixels: 64 per module Luminous intensity, calibrated mode: 4000 Nit Viewing angle: 120° x 120°
Optics
Minimum LED lifetime: 50,000 hours (to >70% luminous output)* *Figure obtained under manufacturer´s test conditions
Installation
Mounting: Mounting holes in module Orientation: Any Maximum number of VC-Grid™ 8x8 25 modules per daisy-chain: 12
Electrical
Nominal input voltage: 48 VDC from Martin P3 PowerPort 1500™ or external PSU Peak power consumption (at full intensity, full white): 30 W Typical power consumption (with typical video content): 10 W Figures for typical video content are indicative only and will vary.
Thermal
Cooling: Convection Maximum ambient temperature (Ta max.): 45° C Minimum ambient temperature (Ta min.): -20° C Peak heat dissipation (calculated, at full intensity, full white): 105 BTU/hr. Typical heat dissipation (calculated, with typical video content): 35 BTU/hr. Figures for typical video content are indicative only and will vary.
Accessories
VC-Grid™/Strip™ 25 Mounting Frames, set of 10: P/N 91611370 VC-Grid™/Strip™ 25 Lens Arrays, Narrow, set of 8: P/N 91611540
Ordering Information
VC-Grid™ 8x8 25 RGB: P/N 90357010
