Martin ERA 500 Hybrid IP 370 W Açık Hava Işığı
Etkili performansı, yüksek kalitesi ve en uygun fiyatıyla medumuzikmarket.com'da

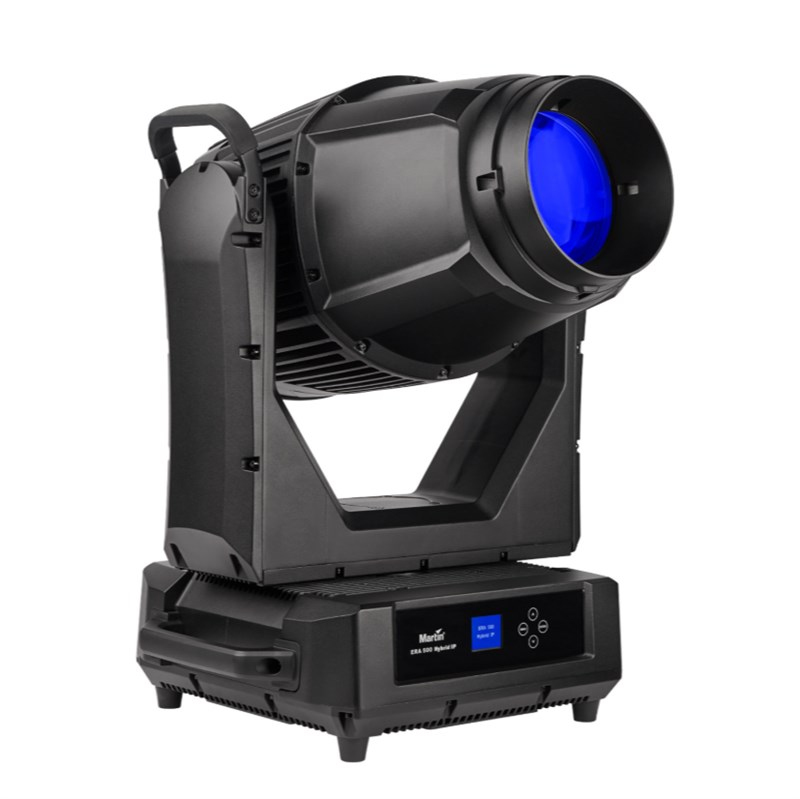

The Martin ERA 500 Hybrid IP is a super versatile, high performance, full featured, outdoor IP65-rated moving head work horse fixture that combines a beam, spot, and wash in a single fixture. It features high output, 1:20 zoom range, CMY color mixing, overlaying prism effects, and a compact design.
With durable engineering and serviceability, it is an ideal fixture to support the rigors of today’s rental market. It’s outdoor-rating makes it perfect for just about any outdoor weather conditions, even music festivals where it can be sitting outside temporarily for extended periods of time.
The ERA 500 Hybrid IP is ideal for supporting any size production such as concerts, tours, festivals and corporate events.
FEATURES
IP65 Outdoor Rated Hybrid Moving Head
Bright short-arc 370W lamp with 6000 Hour Lamp Life
Full CMY Color Mixing System
Color Wheel including CTO, ½ CTO, ¼ CTO
Rotating and indexing gobo wheel with 9 gobos plus open
Static gobo wheel with 15 gobos plus open
2 Rotating/Indexing prisms with overlaying effect
Extensive 1:20 Zoom with Beam, Spot and Wash modes
Motorized Focus
Outdoor rated PowerCON and DMX connection
SPECIFICATIONS
PHYSICAL
Length: 492 mm (19.4in.)
Width: 360 mm (14.2in.)
Height: 774 mm (30.5in)
Weight: 46 kg (101.4lbs)
DYNAMIC EFFECTS
Mechanical shutter effect: Strobe effect, pulse effects, instant open and blackout
Mechanical dimming: 0 - 100%, four dimming curve options
Color mixing: CMY, independently variable 0-100%
Color wheel: 9 color filters plus open
Rotating gobo wheel: 9 gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel: 15 gobos plus open, wheel indexing, rotation and shake
Zoom: Motorized
Focus: Motorized
Prism: 2 rotating/indexing prisms (overlaying)
Frost filter: Wash effect
Beam smoother: Flat field projection for spot mode
Pan: 540°, coarse & fine control and speed
Tilt: 260°, coarse & fine control and speed
CONTROL AND PROGRAMMING
Control options: DMX
16-bit control: Dimming, pan and tilt
Setting and addressing: Control panel with backlit LCD display and via RDM
DMX channels: 24
DMX compliance: USITT DMX512/1990
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485
OPTICS
Front lens diameter: 143 mm
Light source: 370W Philips MSD Platinum 18 R LL
Zoom range - Beam: 2° - 40°
Maximum lifetime: 6000hrs
PHOTOMETRIC DATA
Light engine luminous output: 22000 lumens
CRI (Color Rendering Index) : >70
CCT: 6500 Kelvin
CONSTRUCTION
Housing: Diecast aluminium alloy, High-impact flame-retardant thermoplastic
Color: Black
Effective Projected Area (EPA): 0.1 m²
Ingress protection: IP 65
Impact resistance: IK07
Corrosion resistance: C3 medium (ISO 12944)
RoHS compliant
GOBOS
Gobo diameter: 15.8 mm +0/- 0.2 mm (0.62 in. +0/- 0.008 in.)
Maximum image diameter: 10.0 mm (0.39in.)
Gobo thickness, maximum: 1.1mm borosilicate glass
INSTALLATION
Mounting points: Two quarter-turn brackets for rigging clamps
Orientation: Any
CONNECTIONS
AC Power in: Neutrik powerCON TRUE1 (IP65)
DMX data in/out: 5-pin locking XLR (IP65)
ELECTRICAL
AC power: 100-240V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Fuse: T 10A
TYPICAL POWER AND CURRENT
120 V, 60 Hz: 4.7A, 564W, PF 0.99
230 V, 50 Hz: 2.419A, 548W, PF 0.98
Measurements made at nominal voltage. Allow for a deviation of +/- 10%. PF = power factor.
THERMAL
Cooling: Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): -20° C
Maximum surface temperature, steady state, at 40° C ambient: 70° C (158° F)
Total heat dissipation (calculated, +/- 10%): 1930 BTU/hr
*Power must be maintained below 0° C (32° F)
APPROVALS
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM
Global CB Certification/IECEE: EC 60598-2-17 (IEC 60598-1)
INCLUDED ITEMS
2 x Omega brackets for rigging clamp attachment
RELATED ITEMS
Martin™ RDM 5.5 Splitter: P/N 90758150
Martin Companion Cable: P/N 91616091
Martin Companion Software Suite (including firmware uploader)
ORDERING INFORMATION
Martin ERA 500 Hybrid IP in cardboard box: P/N 9025122033
Flightcase, two unit for ERA 500 Hybrid IP: P/N 901512203
