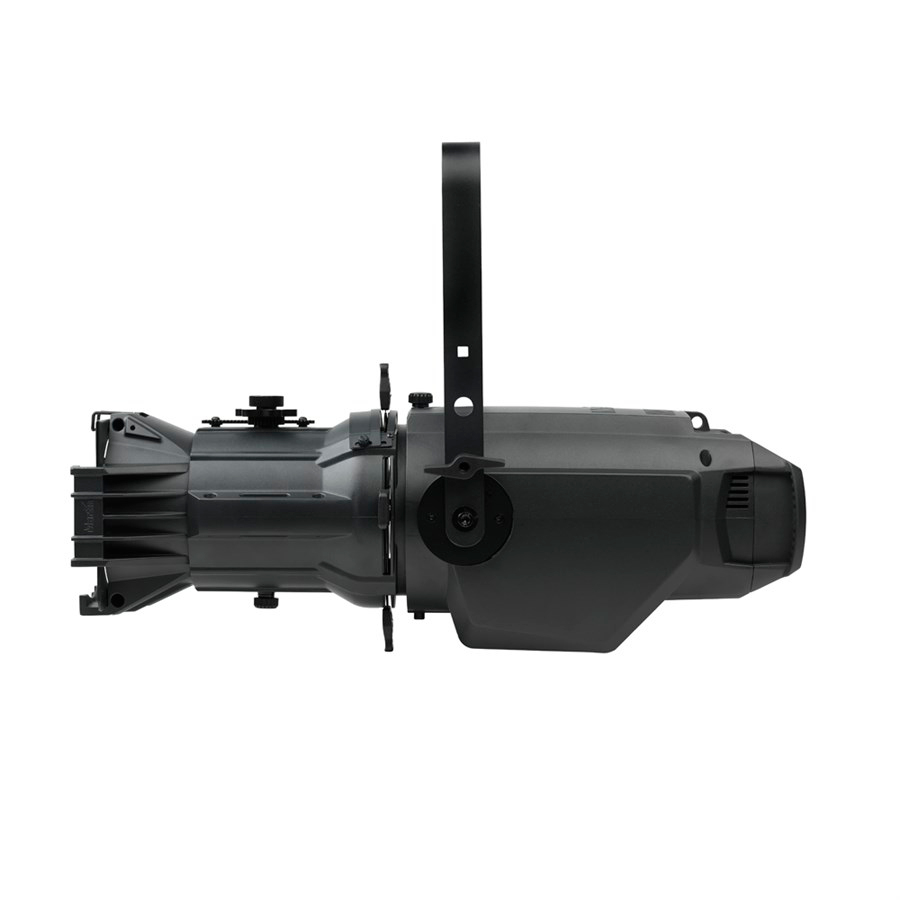

Martin ELP WW Beyaz Profil Led Spot
Benzersiz kullanım kolaylığı ve rahatlık ile birleştiğinde, Martin
ELP WW'yi sınıfının lider Sıcak Beyaz LED Işığı mükemmler yansımalar
yapmaktadır Bu ürünü hızlı kargo avantajı
ile medumuzikmarket.com adresi üzerinden satın alabilirsiniz.
Teknik Özellikler
PHYSICAL
Length: 648 mm (25.5 in.)
Width: 259 mm (10.2 in.)
Height: 254 mm (10 in.), 427 mm (16.8 in.) with bracket
Weight: 7.7 kg (17 lbs) body only
DYNAMIC EFFECTS
Electronic shutter effect: Instant open and blackout
Electronic dimming: 0 - 100%, four dimming curve options
Strobe and pulse effects: Variable speed and action, random strobe
CONTROL AND PROGRAMMING
Control options: DMX, stand-alone
16-bit control: Intensity
Setting and addressing: Control panel with OLED display or via RDM
DMX channels: 1/2/4
PWM: 600-2400 Hz
Standalone programming: Control panel with OLED display
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485
OPTICS
Light source: 91 X 3W warm white LEDs
Color temperature: 3000K
Lens tube options: 19°, 26°, 36°, 50°
Minimum LED lifetime: 30,000 hours (to >70% luminous output)*
Zoom Lens Tube Options: 15–30° and 25–50°
*Figure obtained under manufacturer's test conditions
PHOTOMETRIC DATA
Light engine luminous output: 16,000 lumen
Fixture luminous output: 7000 lumen
CRI (Color Rendering Index) : >97
CQS (Color Quality Scale): >93
TM-30 Rf (IES TM-30-15 Fidelity Index): >93
TM-30 Rg (IES TM-30-15 Gamut Index): >101
TLCI (Television Lighting Consistency Index): >96
CONSTRUCTION
Housing: Die-cast aluminum
Color: Black or white variant
Protection rating: IP20
GOBOS AND COLOR FRAME
Gobo size : A size, 100 mm OD, 75 mm image*, B size, 86 mm OD, 64.5 mm image*
Color frame size: 159 X 159 mm (6.25 X 6.25 in.)
*Gobo holder not included
INSTALLATION
Mounting: Adjustable bracket
Location: Indoor use only
Orientation: Any
Minimum distance to combustible materials: 0.2 m (0.7 ft.)
Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)
