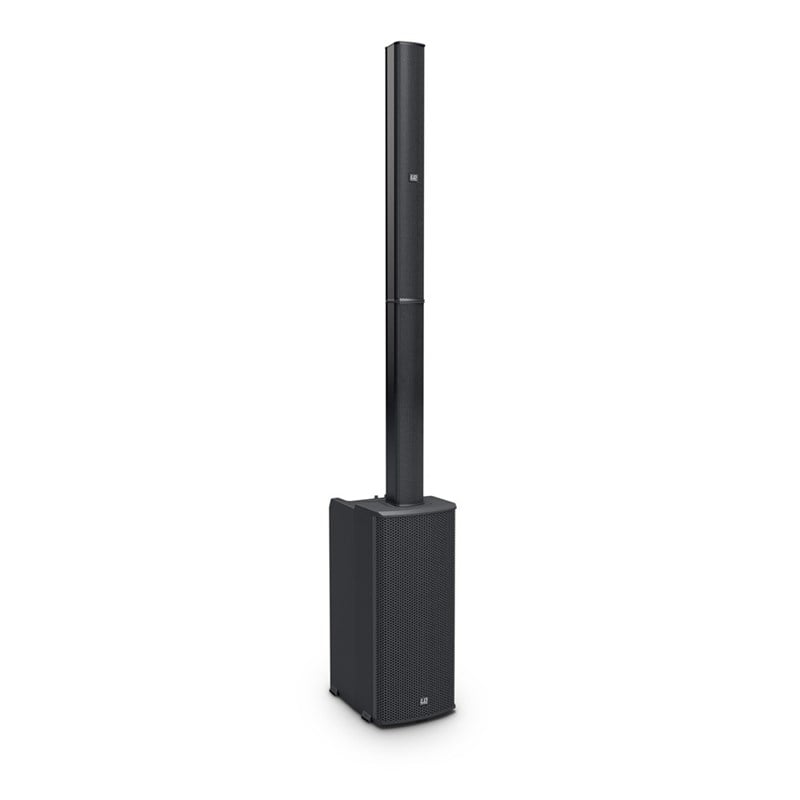

LD Systems Maui 11 Aktif Line Array Kabin
Product type: PA Complete Systems
Type: active
Colour: Black
Max. SPL (peak): 124dB
Frequency response: 50 - 20000Hz
Dispersion (H x V): 120° x 20°
Overall height: 2030mm
Weight: 24,9kg
Woofer characteristics
Low/mid driver dimensions: 3 x 6.5"
Woofer size: 3 x 165.1mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 1.5"
Woofer voice coil (mm): 38.1mm
Cabinet construction: vented
Cabinet material: 15 mm Plywood
Cabinet surface: texture paint
Subwoofer width: 285mm
Subwoofer height: 650mm
Subwoofer depth: 373mm
Subwoofer weight: 16.9kg
Mid/Hi System
Midrange size: 8 x 3"
Midrange size: 8 x 76.2mm
Midrange magnet: Ferrite
Midrange brand: Custom-made
Midrange voice coil: 1"
Midrange voice coil: 25.4mm
Horn: Waveguide
Tweeter dimensions: 2 x1"
Tweeter dimensions (mm): 25.4mm
Tweeter magnet: Neodymium
Tweeter brand: Custom-made
Tweeter voice coil: 1"
Tweeter voice coil (mm): 25.4mm
Loudspeaker inputs: 1
Speaker input connections: Custom-made multipin
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: Aluminium
Mid/Hi system cabinet surface: HD coating
Mid/Hi system width: 96mm
Mid/Hi system height: 620 / 730mm
Mid/Hi system depth: 104mm
Mid/Hi system weight: 5.4 / 2.6kg
Amplifier module (integrated in subwoofer)
Amplifier: Class D
Amplifier output system (RMS): 500W
Amplifier output system (peak): 1000W
Protection circuits: Multiband limiter, short circuit, thermal overload, DC protection
Cooling: Convection
Operating Temperature: 0 - 40°C
Humidity Range: 10% to 80%, (non-condensing)

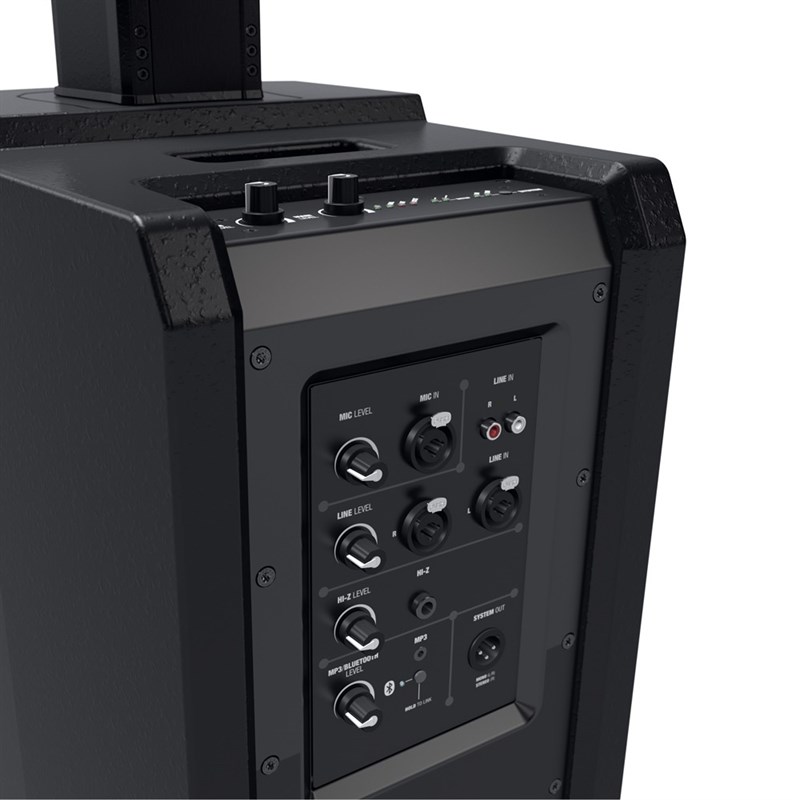

Controls: MP3/Bluetooth Level, Mono/stereo switch, Hi-Z Level, Main level, Line level, Sub level, Bluetooth switch, Power
Indicators: On, stereo, Signal, Setup, mono, Limit, Protect (protection circuit engaged)
Power connector: IEC power cable (included)
Operating voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
Power consumption Off / On / Max.: 0/11/600W
Line inputs: 2 x stereo
Line input connectors: RCA, XLR/6.3 mm jack
Line outputs: 1 x direct out
Line output connectors: XLR
Mic inputs: 1, XLR/6.3 mm jack
MP3 inputs: 1
MP3 input connectors: 3.5 mm jack
Hi-Z inputs: 1
Hi-Z input connectors: 6.3 mm jack
Loudspeaker outputs: 1
Speaker output connections: Custom-made multipin
DSP characteristics
Bit depth AD/DA converter: 24bit
Internal sampling frequency: 48kHz
Signal/noise ratio: 100dB
