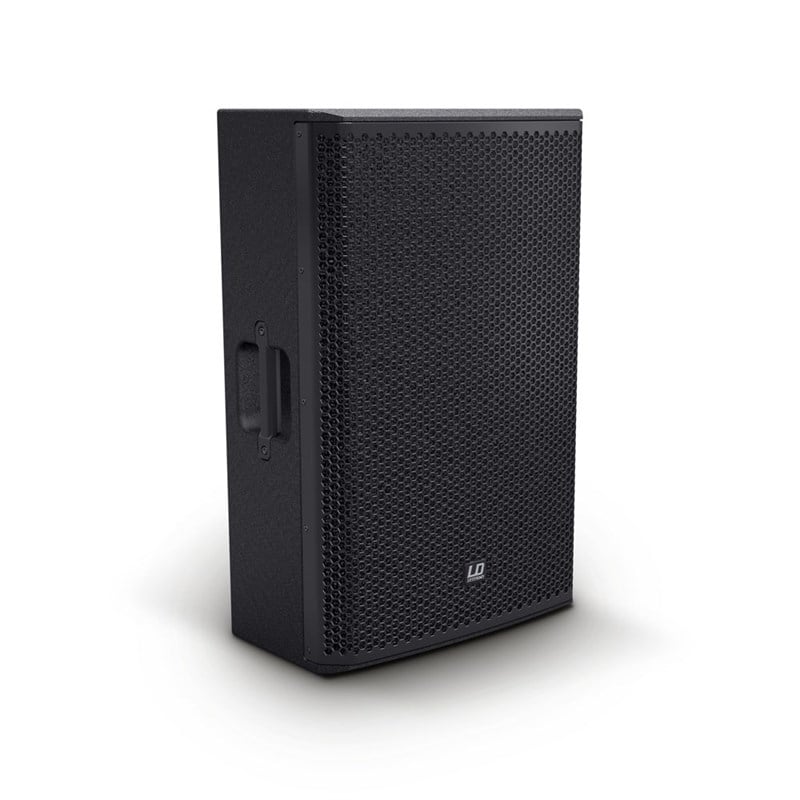

LD Systems LDE 152A - 15 inch 500 Watt Aktif Kabin Hoparlör
Product type: PA loudspeaker
Type: active
Low/mid driver dimensions: 15"
Woofer size: 381mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 3"
Woofer voice coil (mm): 76.2mm
Horn: BEM optimized CD Horn
HF driver dimensions: 1"
HF Driver Size: 25.4mm
HF driver magnet: Ferrite
HF driver brand: BMS
HF driver voice coil: 1"
HF Driver Voice Coil: 25.4mm
Amplifier: Class D
Dispersion (H x V): 90 x 50°
RMS: 500W
Peak power: 1000W
Frequency response: 50 - 20000Hz
Max. SPL (peak): 133dB
Protection circuits: thermal overload, over voltage, Multiband limiter, over-current
Input sensitivity: -5dBu
Controls: 2 x gain, 2 x Mic/Line, mode
Indicators: Limit, Mic, On, mode, Signal, Protect (protection circuit engaged)
Line inputs: 2
Line input connectors: 6.3 mm jack, XLR
Line outputs: 1
Line output connectors: XLR
Operating voltage: Switching power supply, 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
Operating Temperature: 0 - 40°C
Relative Humidity: < 80% (non-condensing)
Cabinet material: 15 mm Plywood
Cabinet surface: Polyurea
Cabinet construction: vented
Monitor angle: 54°
Width: 480mm
Height: 737mm
Depth: 455mm
Weight: 26,8kg
