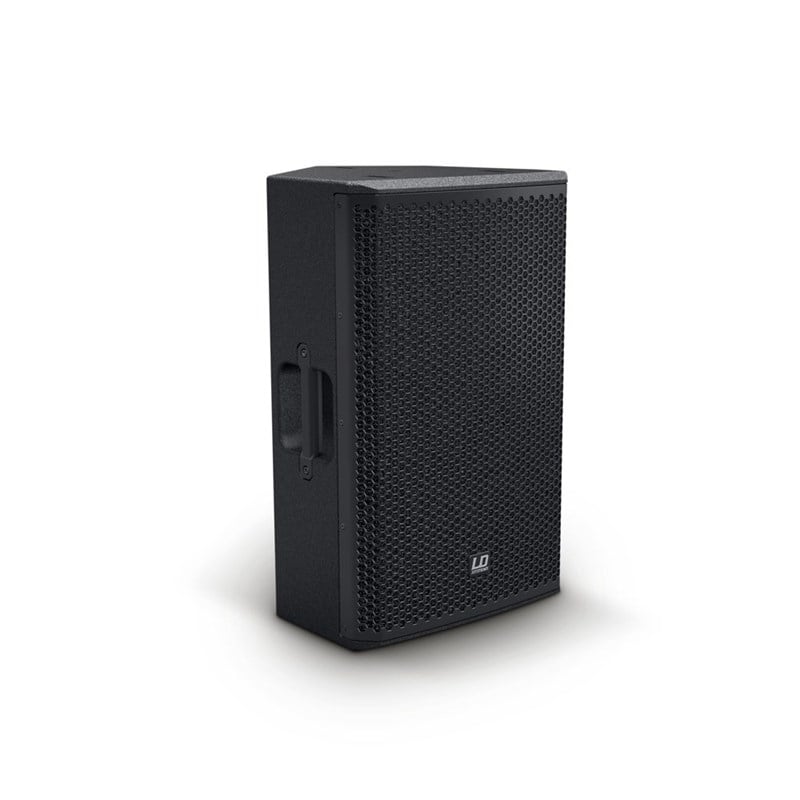

LD Systems LDE 122A - 12'' 500 Watt Aktif Kabin Hoparlör
Product type: PA loudspeaker
Type: active
Low/mid driver dimensions: 12"
Woofer size: 304.8mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 2.5"
Woofer voice coil (mm): 63.5mm
Horn: BEM optimized CD Horn
HF driver dimensions: 1"
HF Driver Size: 25.4mm
HF driver magnet: Ferrite
HF driver brand: BMS
HF driver voice coil: 1"
HF Driver Voice Coil: 25.4mm
Amplifier: Class D
Dispersion (H x V): 90 x 50°
RMS: 500W
Peak power: 1000W
Frequency response: 58 - 20000Hz
Max. SPL (peak): 131dB
Protection circuits: Multiband limiter, over voltage, over-current, thermal overload
Input sensitivity: -5dBu
Controls: 2 x Mic/Line, 2 x gain, mode
Indicators: Signal, Mic, mode, Limit, On, Protect (protection circuit engaged)
Line inputs: 2
Line input connectors: XLR, 6.3 mm jack
Line outputs: 1
Line output connectors: XLR
Operating voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
Operating Temperature: 0 - 40°C
Relative Humidity: < 80% (non-condensing)
Cabinet material: 15 mm Plywood
Cabinet surface: Polyurea
Cabinet construction: vented
Monitor angle: 54°
Width: 390mm
Height: 627mm
Depth: 377mm
Weight: 20,1kg
