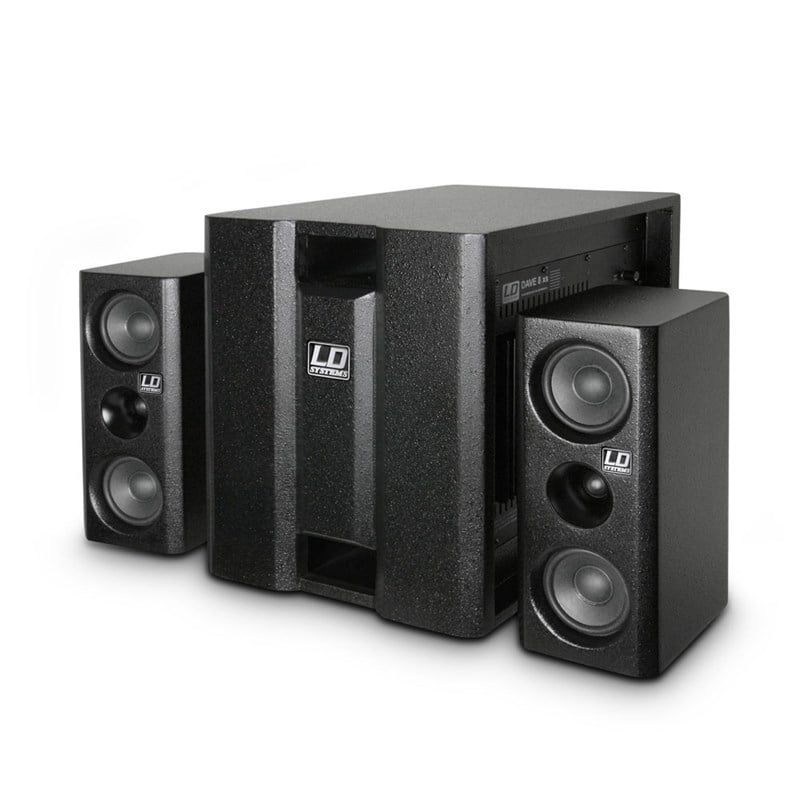

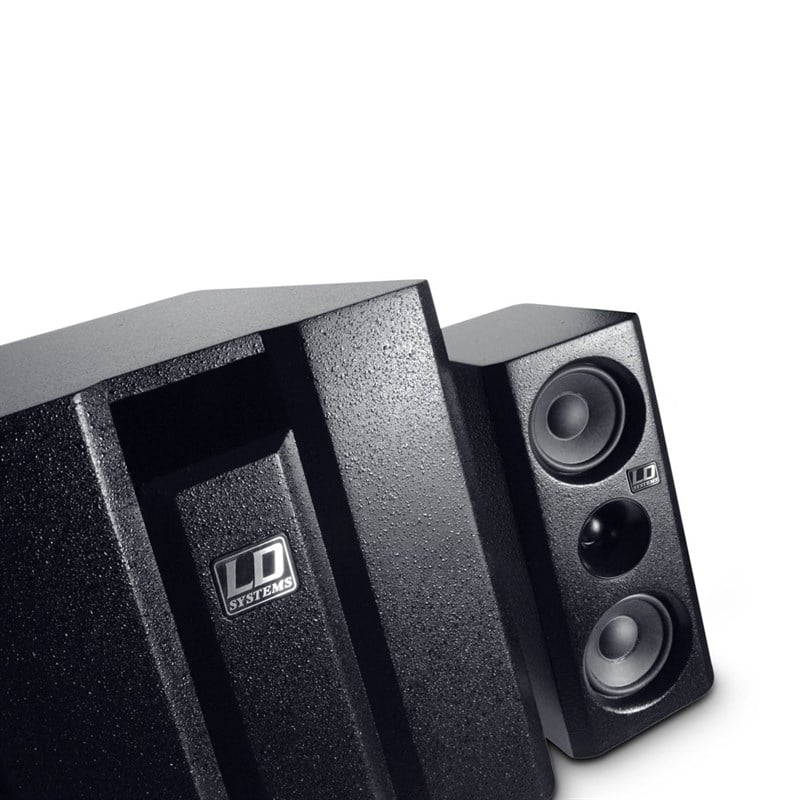

LD Systems DAVE8XS - 2.1 Hoparlör Sistemi
Product type: PA Complete Systems
Colour: Black
Max. SPL (continuous): 117dB
Frequency response: 45 - 19.000Hz
Dispersion (H x V): 60 x 60°
Weight: 29kg
Subwoofer
Low/mid driver dimensions: 8"
Woofer size: 203.2mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Cabinet construction: Bandpass
Cabinet material: 15 mm MDF
Cabinet surface: texture paint
Subwoofer width: 352mm
Subwoofer height: 430mm
Subwoofer depth: 434mm

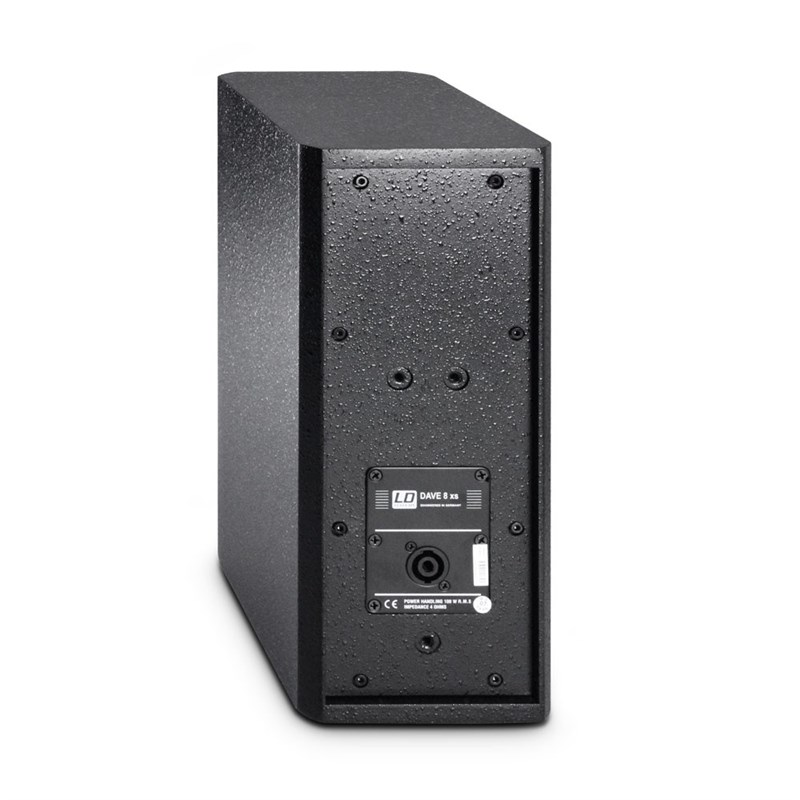

Mid/Hi System
Midrange size: 2 x 4"
Midrange size: 2 x 101.6mm
Midrange magnet: Ferrite
Midrange brand: Custom-made
Tweeter dimensions: 1"
Tweeter dimensions (mm): 25.4mm
Tweeter magnet: Ferrite
Tweeter brand: Custom-made
Mid/Hi system impedance: 4Ohm(s)
Loudspeaker inputs: 1
Speaker input connections: Speakon compatible
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: 12 mm MDF
Mid/Hi system cabinet surface: texture paint
Mid/Hi system width: 144mm
Mid/Hi system height: 350mm
Mid/Hi system depth: 170mm
Mid/Hi system features: 2 x M6 mounting points for wall mounting, 16 mm flange
Amplifier module (integrated in subwoofer)
Amplifier: Class A/B (Bi-amp)
Amplifier output system (RMS): 350W
Amplifier output system (peak): 1400W
Protection circuits: overload, short circuit, limiter
Cooling: Aluminium heat sink
Controls: mains switch (on/off), Subwoofer Phase Reverse, Subwoofer Volume, volume
Indicators: Power
Operating voltage: transformer, 220 V AC - 240 V AC, 50-60 Hz
Line inputs: 2 (Left/Right)
Line input connectors: XLR, RCA, 6.3 mm jack
Loudspeaker outputs: 2 (Left/Right)
Speaker output connections: Speakon compatible
