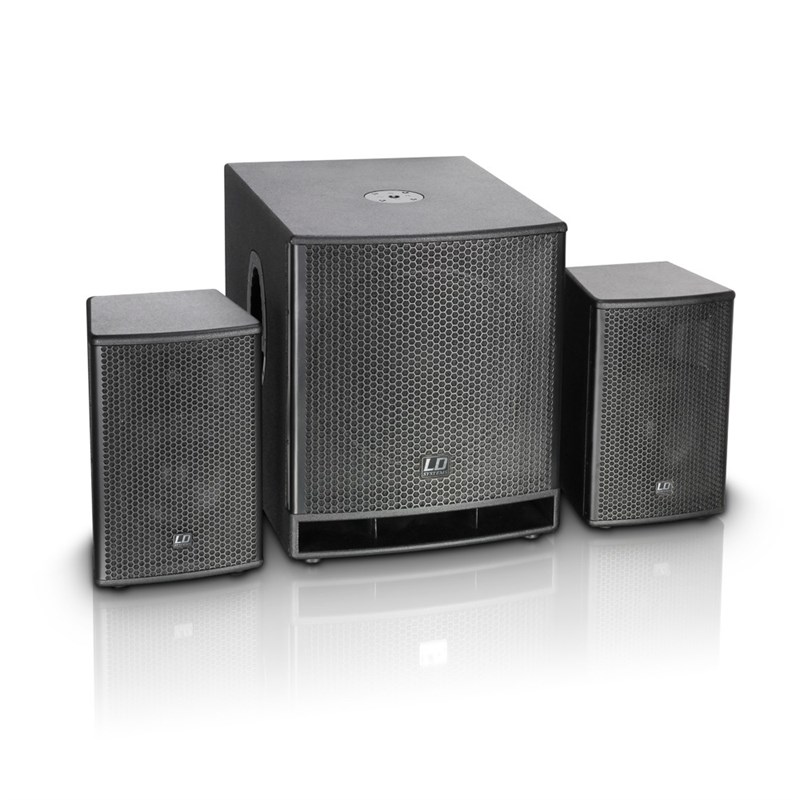

LD Systems DAVE15G3 - 2.1 Ses Sistemi
Product number: LDDAVE15G3
Product type: PA Complete Systems
Colour: Black
Max. SPL (continuous): 121dB
Max. SPL (peak): 132dB
Frequency response: 35 - 19000Hz
Dispersion (H x V): 90 x 40°
Weight: 60,9kg
Subwoofer
Low/mid driver dimensions: 15"
Woofer size: 381mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 3"
Woofer voice coil (mm): 76.2mm
Cabinet construction: vented
Cabinet material: 18 mm Plywood
Cabinet surface: texture paint
Subwoofer width: 480mm
Subwoofer height: 570mm
Subwoofer depth: 635mm
Subwoofer features: LD Systems "Evolutive" handles, threaded flange M20
Mid/Hi System
Midrange size: 8"
Midrange size: 203.2mm
Midrange magnet: Ferrite
Midrange brand: Custom-made
Midrange voice coil: 1.5"
Midrange voice coil: 38.1mm
Horn: CD horn
Tweeter dimensions: 1"
Tweeter dimensions (mm): 25.4mm
Tweeter magnet: Ferrite
Tweeter brand: Custom-made
Tweeter voice coil: 1"
Tweeter voice coil (mm): 25.4mm
Mid/Hi system impedance: 4Ohm(s)
Loudspeaker inputs: 1
Speaker input connections: Speakon compatible
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: 15 mm Plywood
Mid/Hi system cabinet surface: texture paint
Mid/Hi system width: 275mm
Mid/Hi system height: 430mm
Mid/Hi system depth: 260mm
Mid/Hi system features: ergonomically shaped insert handles, SM707 stand mount 36 mm
Amplifier module (integrated in subwoofer)
Amplifier: Class A/B
Amplifier output system (RMS): 700W
Amplifier output system (peak): 2800W
Protection circuits: overload, limiter, short circuit
Cooling: volume-controlled fan
Controls: Power, volume, Sub level, Subwoofer Phase Reverse
Indicators: Signal, on/off, Protect (protection circuit engaged), Limit
Operating voltage: transformer, 220 V AC - 240 V AC
Power consumption: 1000VA
Line inputs: 2
Line input connectors: 6.3 mm jack, XLR, RCA
Line output connectors: XLR
Loudspeaker outputs: 2
Speaker output connections: Speakon compatible
