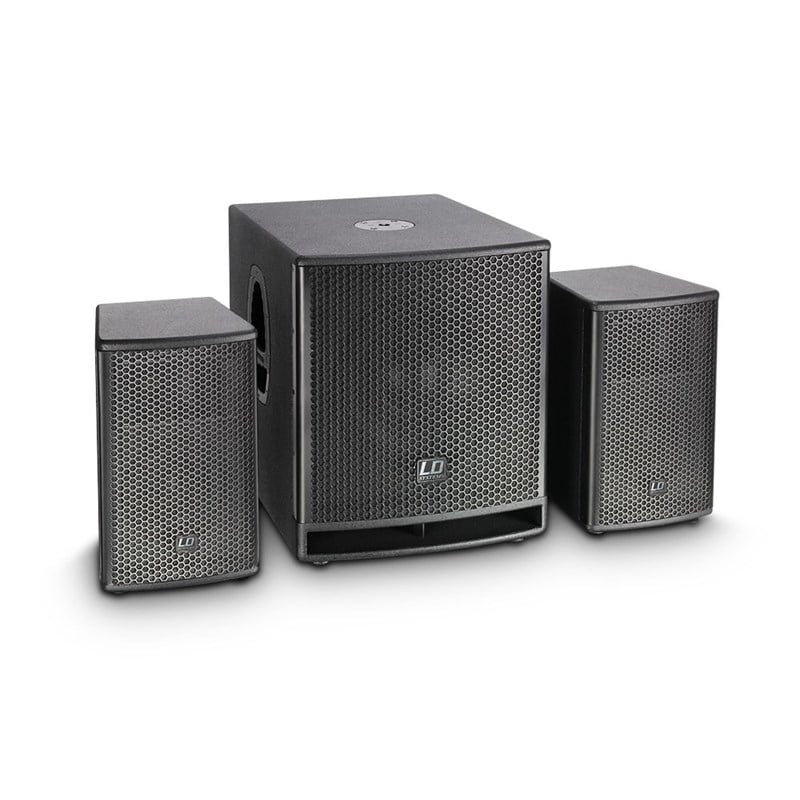

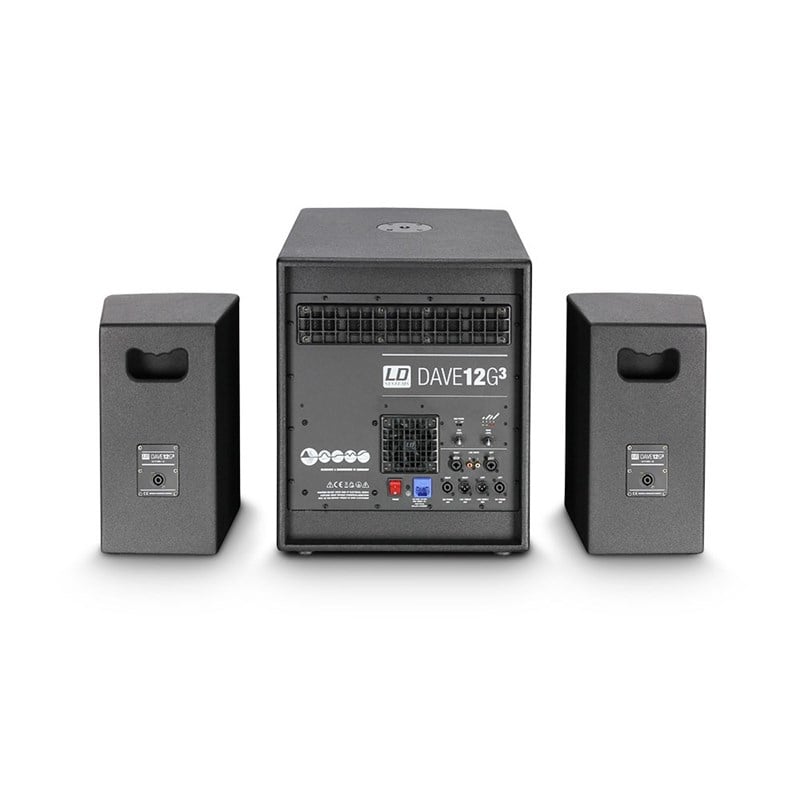

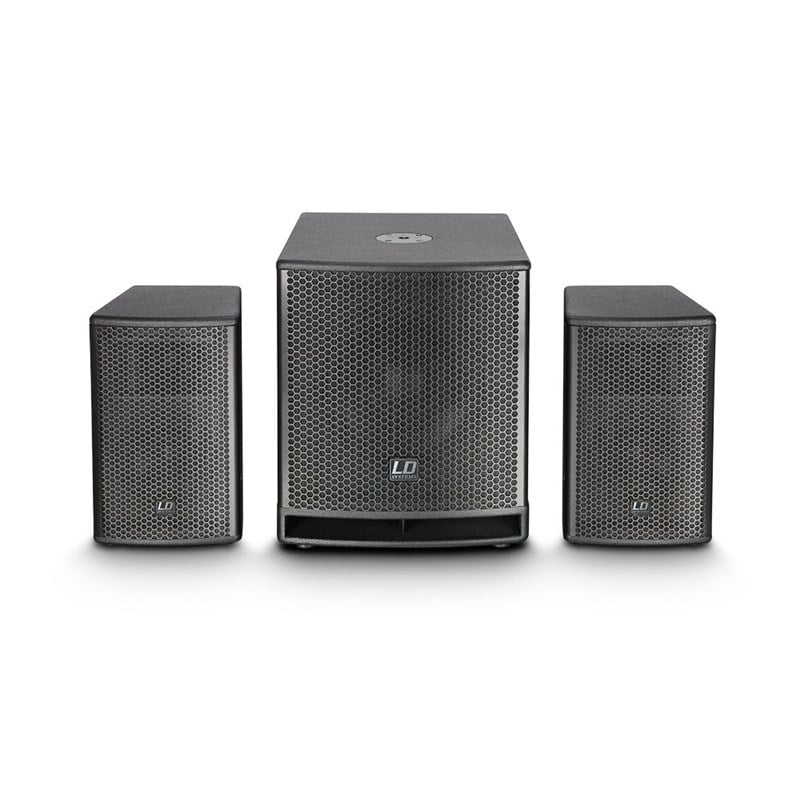

LD Systems DAVE12G3 Hi-Fi Hoparlör Sistemi
Product type: PA Complete Systems
Colour: Black
Max. SPL (continuous): 119dB
Max. SPL (peak): 130dB
Frequency response: 40 - 19000Hz
Dispersion (H x V): 90 x 40°
Weight: 48,5kg

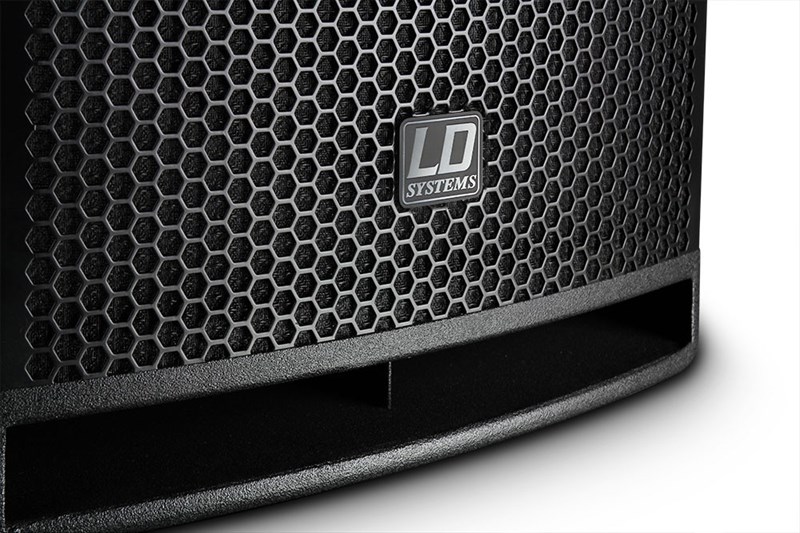

Subwoofer
Low/mid driver dimensions: 12"
Woofer size: 304.8mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 2.5"
Woofer voice coil (mm): 63.5mm
Cabinet construction: vented
Cabinet material: 15 mm Plywood
Cabinet surface: texture paint
Subwoofer width: 435mm
Subwoofer height: 500mm
Subwoofer depth: 540mm

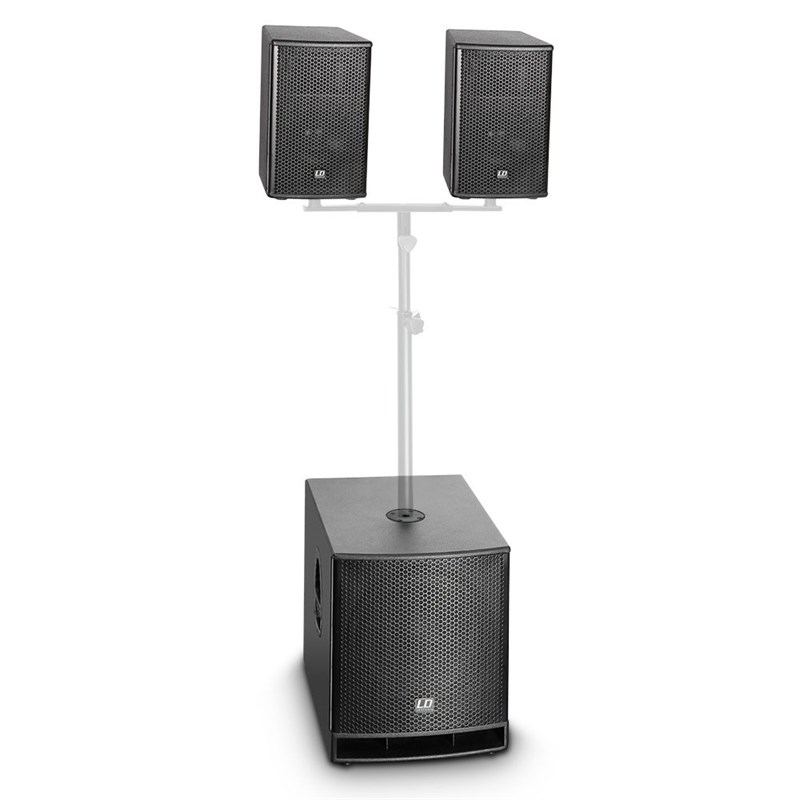

Subwoofer features: LD Systems "Evolutive" handles, threaded flange M20
Mid/Hi System
Midrange size: 6.5"
Midrange size: 165.1mm
Midrange magnet: Ferrite
Midrange brand: Custom-made
Midrange voice coil: 1.75"
Midrange voice coil: 44.5mm
Horn: CD horn
Tweeter dimensions: 1"
Tweeter dimensions (mm): 25.4mm
Tweeter magnet: Ferrite
Tweeter brand: Custom-made
Tweeter voice coil: 1"
Tweeter voice coil (mm): 25.4mm
Mid/Hi system impedance: 4Ohm(s)

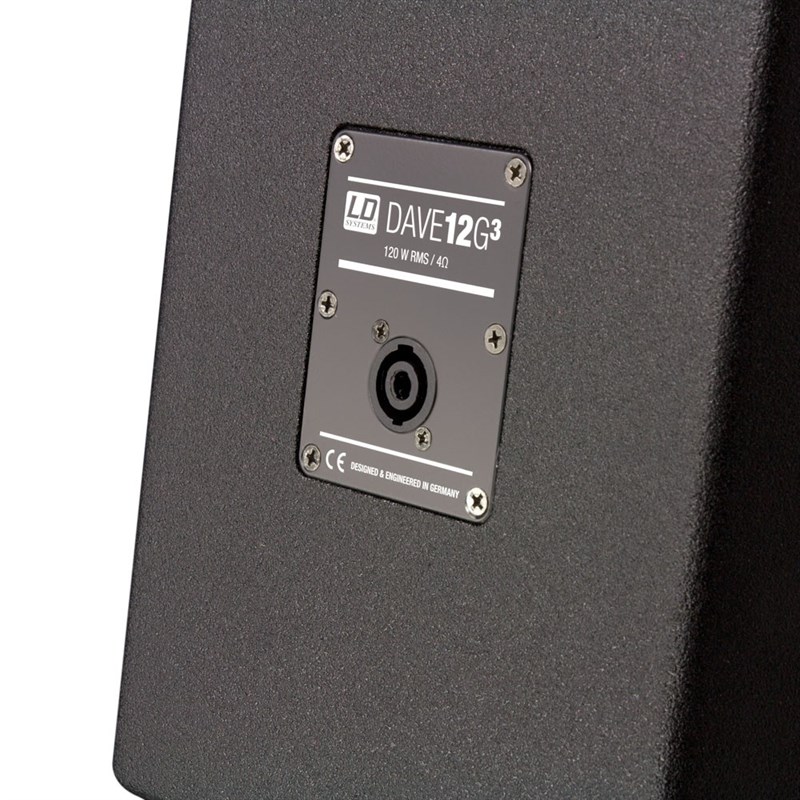

Loudspeaker inputs: 1
Speaker input connections: Speakon compatible
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: 15 mm Plywood
Mid/Hi system cabinet surface: texture paint
Mid/Hi system width: 250mm
Mid/Hi system height: 400mm
Mid/Hi system depth: 250mm

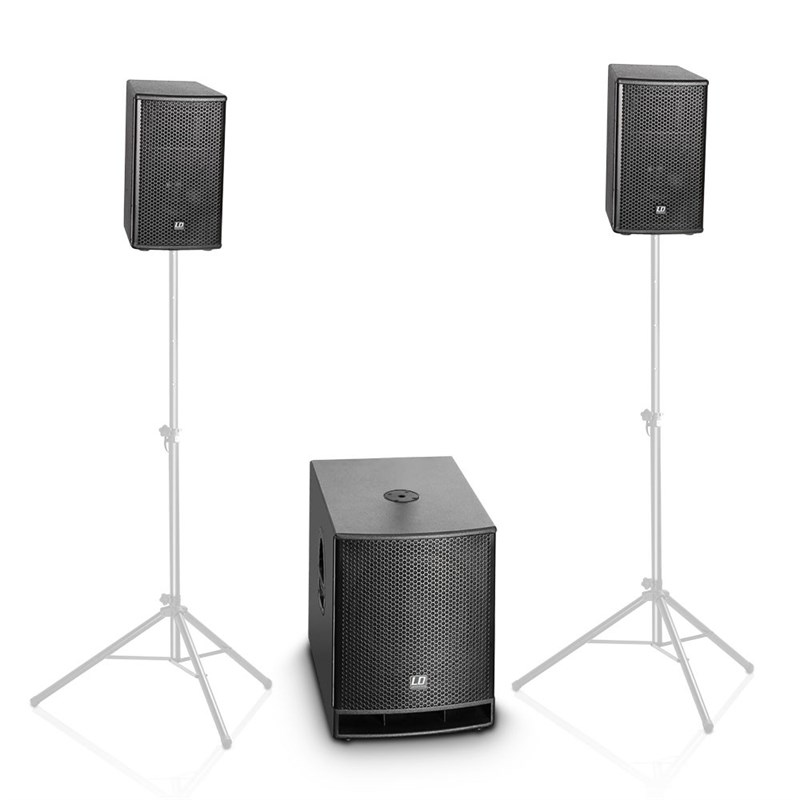

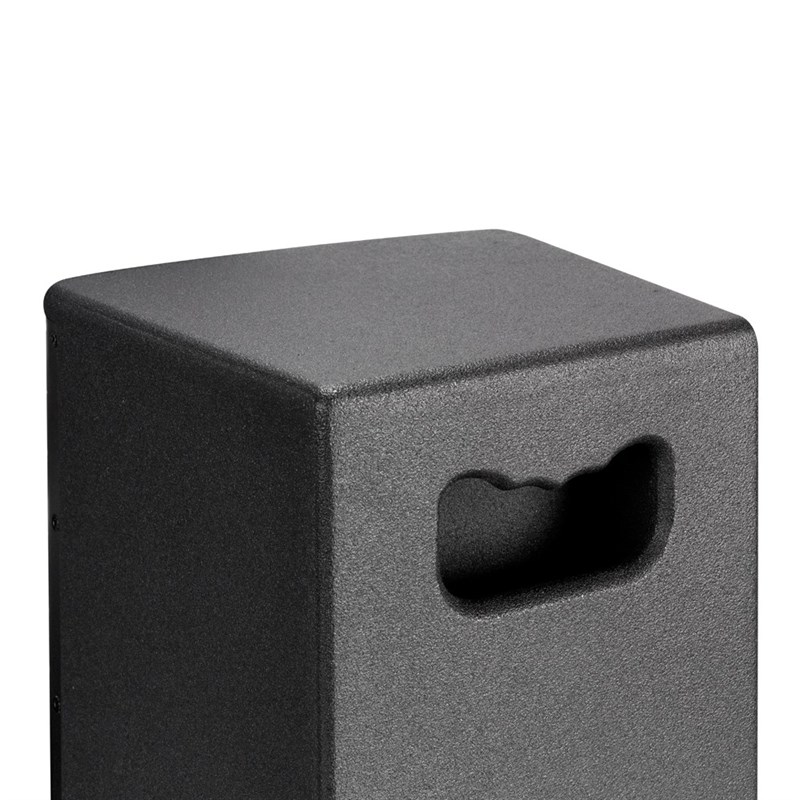

Mid/Hi system features: ergonomically shaped insert handles, SM707 stand mount 36 mm

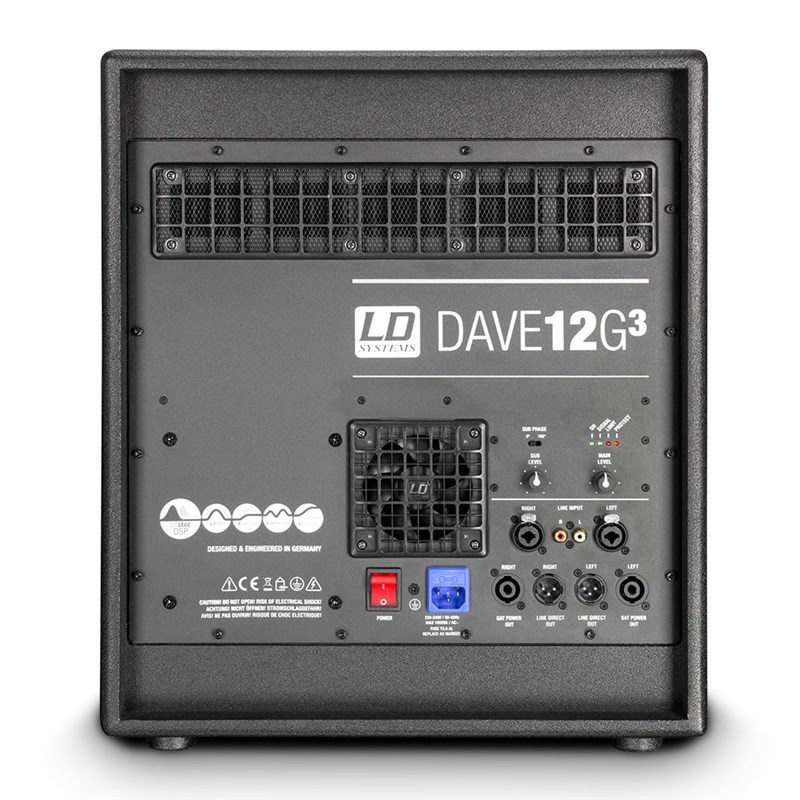

Amplifier module (integrated in subwoofer)
Amplifier: Class A/B
Amplifier output system (RMS): 500W
Amplifier output system (peak): 2000W
Protection circuits: overload, limiter, short circuit
Cooling: volume-controlled fan
Controls: Subwoofer Phase Reverse, Sub level, Power, volume
Indicators: Signal, Protect (protection circuit engaged), on/off, Limit
Operating voltage: transformer, 220 V AC - 240 V AC
Line inputs: 2
Line input connectors: RCA, 6.3 mm jack, XLR
Line output connectors: XLR
Loudspeaker outputs: 2
Speaker output connections: Speakon compatible
Internal sampling frequency: 1000kHz
