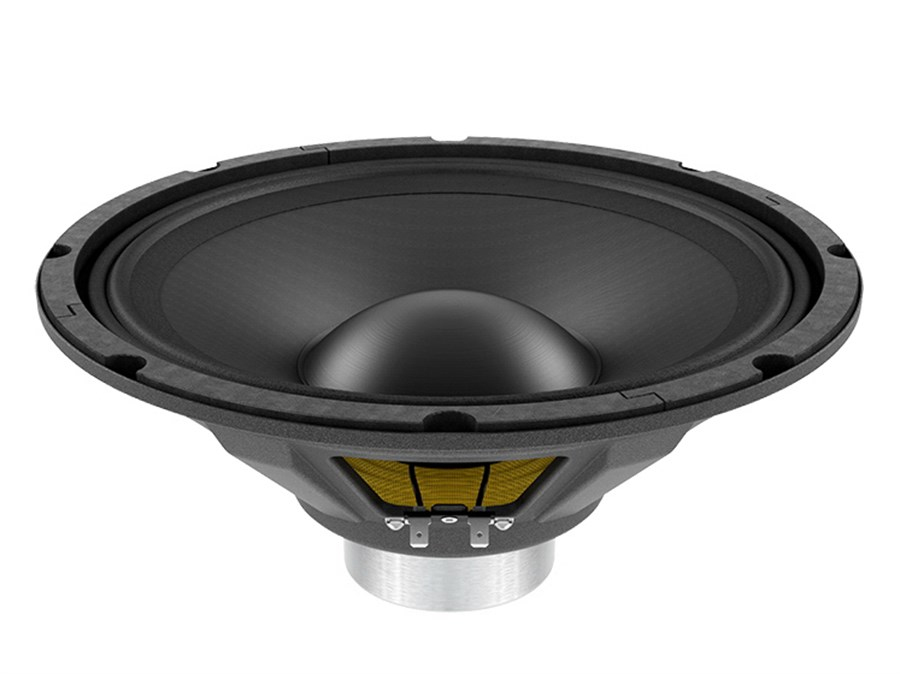

Lavoce WSN122.50 12 inç 500W Hoparlör
Lavoce WSN122.50 12 inç 500W Hoparlör
Lavoce WSN122.50 12 inç 500W Hoparlör

Lavoce WSN122.50 12 inç 500W Hoparlör

Marka : Lavoce
Fiyat : $288.00(KDV Dahil)

Lavoce WSN122.50 12 inç 500W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WSN122.50 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WSN122.50'i www.medumuzikmarket.com'dan satın alabilirsiniz.

2.5 INCH COPPER VOICE COIL
97,5 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 300 (12)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,3
Program power W 500
AES Power rating W 250
Sensitivity dB 97,5
Frequency range Hz 50 ÷ 3000
Voice coil diameter mm (in) 65 (2.5)
Chassis material   Steel
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 64 x 8 (2.52 x 0.31)
Coil material   Copper
Former material   Glass Fiber
Cone material Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material   Polycotton
Xmax mm (in) 4,7 (0.19)
Xmech mm (in) 8,8 (0.35)
Gap height mm (in) 8,2 (0.32)
Voice coil winding height mm (in) 13,4 (0.53)
Driver displacement volume l (ft³) 1,6 (0.06)
Recommended Enclosure l (ft³) 39,6 (1.4)
Recommended Tuning Hz 55
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,7
Resonance frequency (Fs) Hz 53
Moving mass (Mms) g (oz) 38,52 (1.36)
Compliance (Cms) mm/N 0,174
Force factor (Bxl) N/A 15,85
Mechanical Q-factor (Qms)   4,31
Electrical Q-factor (Qes)   0,39
Total Q-factor (Qts)   0,36
Equivalent air volume (Vas) l (ft3) 69,42 (2.45)
Voice coil inductance (Le) mH 0,77
Diaphragm area (Sd) cm2 (in.2) 530,9 (82.3)
Reference efficiency (Eta 0)   2,49 %
Efficiency bandwidth product (EBP) Hz 136
SHIPPING INFORMATION
Net weight kg (lb) 2,1 (4.6)
Multipack size W x D x H mm x mm x mm (in x in x in) 364 x 364 x 186 (14.3 x 14.3 x 7.3)
Multipack weight kg (lb) 3,4 (7.6)
