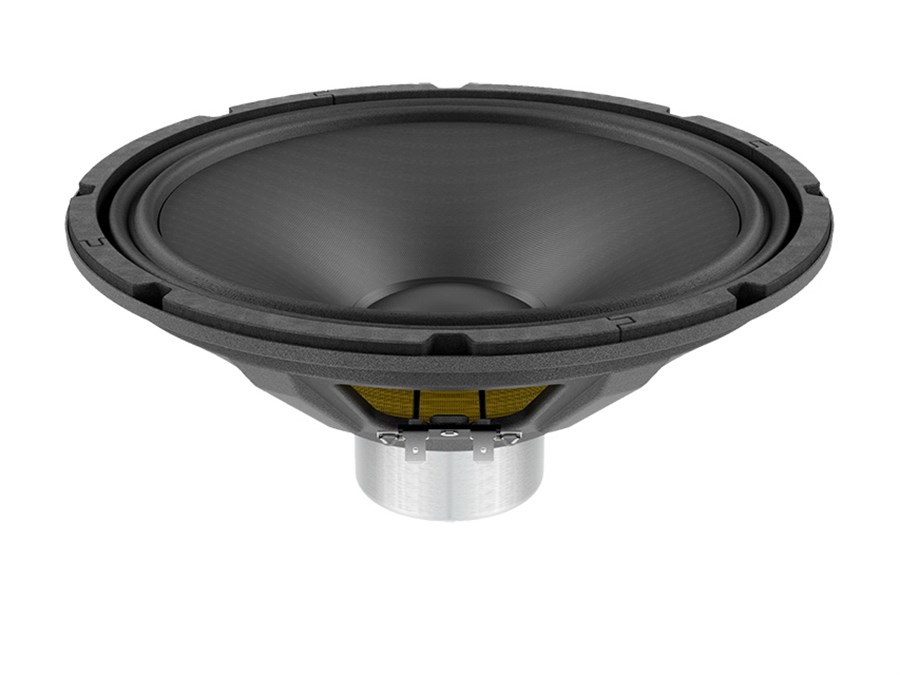

Lavoce WSN102.00 10 inç 300W Hoparlör
Lavoce WSN102.00 10 inç 300W Hoparlör
Lavoce WSN102.00 10 inç 300W Hoparlör

Lavoce WSN102.00 10 inç 300W Hoparlör

Marka : Lavoce
Fiyat : $225.60(KDV Dahil)

Lavoce WSN102.00 10 inç 300W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WSN102.00 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WSN102.00'ı www.medumuzikmarket.com'dan satın alabilirsiniz.

2 INCH CCAW VOICE COIL
96 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 250 (10)
Nominal Impedance Ohm 8
Minimum impedance Ohm 5,7
Program power W 300
AES Power rating W 150
Sensitivity dB 96
Frequency range Hz 60 ÷ 4000
Voice coil diameter mm (in) 51 (2)
Chassis material   Steel
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 51 x 9 (2 x 0.35)
Coil material   CCAW
Former material   Glass Fiber
Cone material   Water Resistant Treated Paper
Surround material   Polycotton
Xmax mm (in) 5,3 (0.21)
Xmech mm (in) 9,4 (0.37)
Gap height mm (in) 8,2 (0.32)
Voice coil winding height mm (in) 14,6 (0.57)
Driver displacement volume l (ft³) 0,9 (0.03)
Recommended Enclosure l (ft³) 33,4 (1.18)
Recommended Tuning Hz 65
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,1
Resonance frequency (Fs) Hz 65
Moving mass (Mms) g (oz) 35,22 (1.24)
Compliance (Cms) mm/N 0,202
Force factor (Bxl) N/A 12.04
Mechanical Q-factor (Qms)   4,34
Electrical Q-factor (Qes)   0,47
Total Q-factor (Qts)   0,42
Equivalent air volume (Vas) l (ft3) 36,36 (1.28)
Voice coil inductance (Le) mH 0,62
Diaphragm area (Sd) cm2 (in.2) 356,3 (55.2)
Reference efficiency (Eta 0)   1,58 %
Efficiency bandwidth product (EBP) Hz 128
SHIPPING INFORMATION
Net weight kg (lb) 1,3 (2.9)
Multipack size W x D x H mm x mm x mm (in x in x in) 300 x 300 x 148 (11.8 x 11.8 x 5.8)
Multipack weight kg (lb) 2,3 (5)
