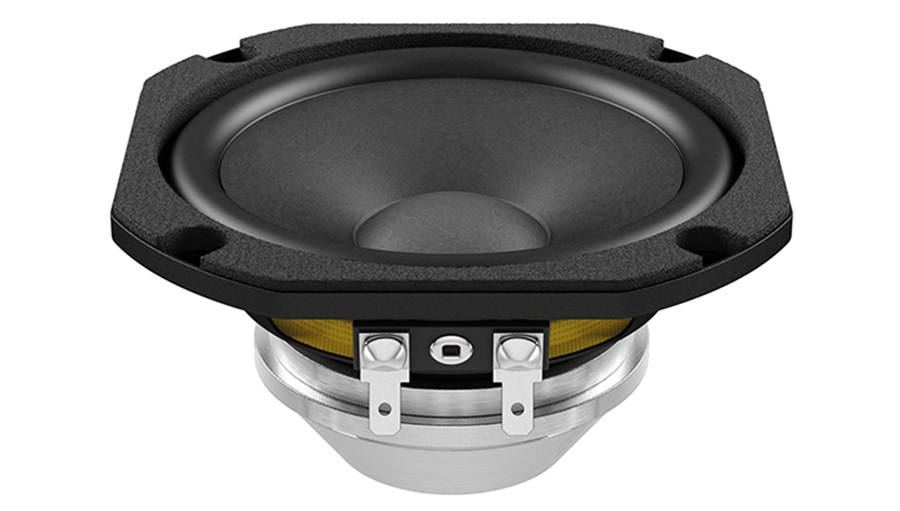

Lavoce WSN041.00 4 inç 80W Hoparlör
Lavoce WSN041.00 4 inç 80W Hoparlör
Lavoce WSN041.00 4 inç 80W Hoparlör

Lavoce WSN041.00 4 inç 80W Hoparlör

Marka : Lavoce
Fiyat : $112.80(KDV Dahil)



Lavoce WSN041.00 4 inç 80W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WSN041 fiyat performans olarak on plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce wsn41'i www.medumuzikmarket.com'dan satın alabilirsiniz

1 INCH COPPER VOICE COIL
91 dB/SPL SENSITIVITY





GENERAL SPECIFICATIONS
Nominal diameter mm (in) 100 (4)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,5
Program power W 80
AES Power rating W 40
Sensitivity dB 91
Frequency range Hz 100 ÷ 12000
Voice coil diameter mm (in) 25 (1)
Chassis material   Steel
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 65 x 32 x 4 (2.56 x 1.26 x 0.16)
Coil material   Copper
Former material   Polyimide
Cone material   Water Resistant Treated Paper
Surround material Rubber
Xmax mm (in) 4 (0.16)
Xmech mm (in) 5,8 (0.23)
Gap height mm (in) 5 (0.2)
Voice coil winding height mm (in) 10,5 (0.41)
Driver displacement volume l (ft³) 0,125 (0.004)
Recommended Enclosure l (ft³) 2 (0.071)
Recommended Tuning Hz 165
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,6
Resonance frequency (Fs) Hz 104
Moving mass (Mms) g (oz) 5,9 (0.21)
Compliance (Cms) mm/N 0,403
Force factor (Bxl) N/A 8,3
Mechanical Q-factor (Qms)   7,06
Electrical Q-factor (Qes)   0,32
Total Q-factor (Qts)   0,30
Equivalent air volume (Vas) l (ft3) 1,67 (0.059)
Voice coil inductance (Le) mH 0,28
Diaphragm area (Sd) cm2 (in.2) 54,1 (8.39)
Reference efficiency (Eta 0)   0,57 %
Efficiency bandwidth product (EBP) Hz 325
SHIPPING INFORMATION
Net weight kg (lb) 0,5 (1.1)
Multipack size W x D x H mm x mm x mm (in x in x in) 385 x 340 x 149 (15.2 x 13.4 x 5.9)
Multipack weight kg (lb) 11 (24.3)
