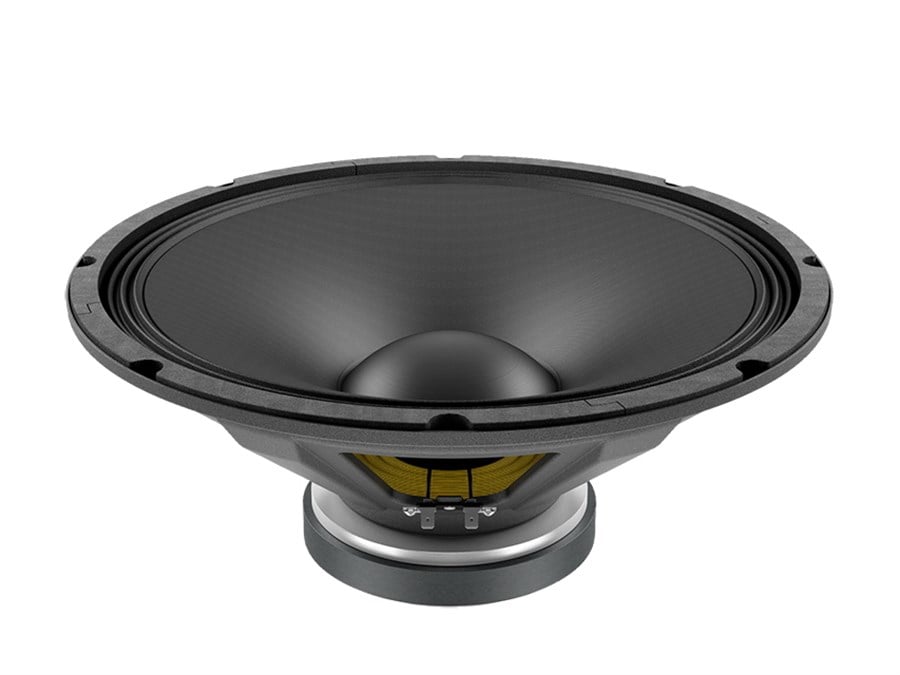

Lavoce WSF152.50 15 inç 500W Hoparlör
Lavoce WSF152.50 15 inç 500W Hoparlör
Lavoce WSF152.50 15 inç 500W Hoparlör

Lavoce WSF152.50 15 inç 500W Hoparlör

Marka : Lavoce
Fiyat : $258.00(KDV Dahil)

Lavoce WSF152.50 15 inç 500W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WSF152.50 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WSF152.50'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

2.5 INCH COPPER VOICE COIL
97,5 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 380 (15)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,3
Program power W 500
AES Power rating W 250
Sensitivity dB 97,5
Frequency range Hz 45 ÷ 3000
Voice coil diameter mm (in) 65 (2.5)
Chassis material   Steel
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 160 x 70 x 20 (6.3 x 2.76 x 0.79)
Coil material   Copper
Former material   Glass Fiber
Cone material Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material   Polycotton
Xmax mm (in) 4,7 (0.19)
Xmech mm (in) 8,8 (0.35)
Gap height mm (in) 8,2 (0.32)
Voice coil winding height mm (in) 13,4 (0.53)
Driver displacement volume l (ft³) 3,8 (0.13)
Recommended Enclosure l (ft³) 86,3 (3.4)
Recommended Tuning Hz 50
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,6
Resonance frequency (Fs) Hz 46
Moving mass (Mms) g (oz) 90,3 (3.19)
Compliance (Cms) mm/N 0,133
Force factor (Bxl) N/A 16,16
Mechanical Q-factor (Qms)   5,12
Electrical Q-factor (Qes)   0,56
Total Q-factor (Qts)   0,50
Equivalent air volume (Vas) l (ft3) 137,9 (4.87)
Voice coil inductance (Le) mH 0,77
Diaphragm area (Sd) cm2 (in.2) 855 (132.5)
Reference efficiency (Eta 0)   2,29%
SHIPPING INFORMATION
Net weight kg (lb) 5,4 (11.8)4,1 (9)
Multipack size W x D x H mm x mm x mm (in x in x in) 438 x 438 x 204 (17.2 x 17.2 x 8)
Multipack weight kg (lb) 7,5 (16.6)
