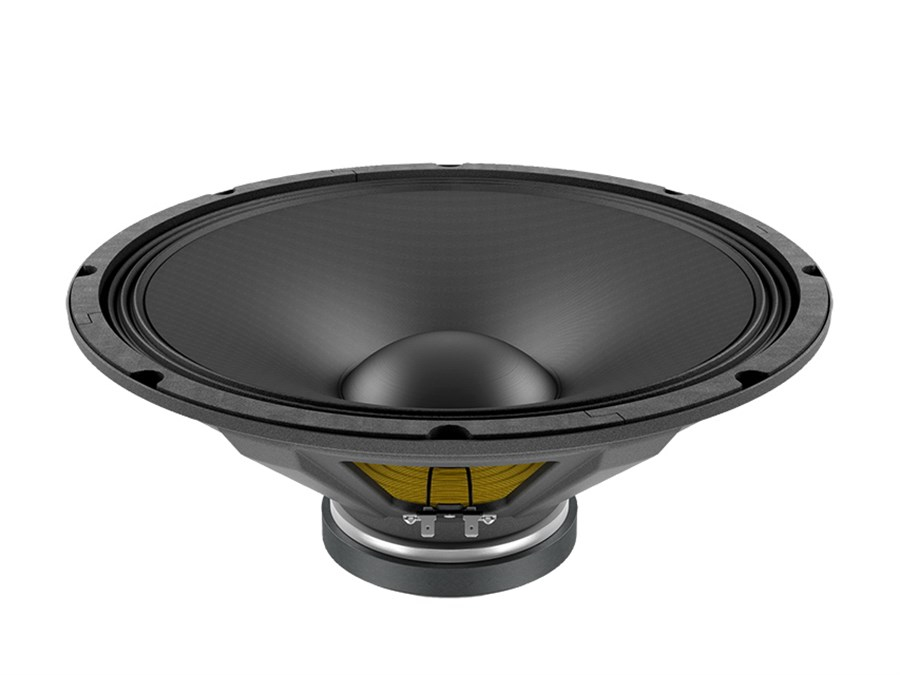

Lavoce WSF152.02 15 inç 400W Hoparlör
Lavoce WSF152.02 15 inç 400W Hoparlör
Lavoce WSF152.02 15 inç 400W Hoparlör

Lavoce WSF152.02 15 inç 400W Hoparlör

Marka : Lavoce
Fiyat : $209.34(KDV Dahil)

Lavoce WSF152.02 15 inç 400W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WSF152.02 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WSF152.02'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

2 INCH COPPER VOICE COIL
98 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 380 (15)
Nominal Impedance Ohm 8
Minimum impedance Ohm 5,9
Program power W 400
AES Power rating W 200
Sensitivity dB 98
Frequency range Hz 40 ÷ 3000
Voice coil diameter mm (in) 51 (2)
Chassis material   Steel
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 140 x 60 x 17 (5.5 x 2.36 x 0.7)
Coil material   Copper
Former material   Glass Fiber
Cone material   Water Proof Treated Paper
Surround material   Polycotton
Xmax mm (in) 4,3 (0.17)
Xmech mm (in) 8,3 (0.31)
Gap height mm (in) 8 (0.31)
Voice coil winding height mm (in) 12,6 (0.5)
Driver displacement volume l (ft³) 3,6 (0.12)
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,3
Resonance frequency (Fs) Hz 43
Moving mass (Mms) g (oz) 69,2 (2.44)
Compliance (Cms) mm/N 4,9
Force factor (Bxl) N/A 12,8
Mechanical Q-factor (Qms)   4,9
Electrical Q-factor (Qes)   0,59
Total Q-factor (Qts)   0,53
Equivalent air volume (Vas) l (ft3) 210 (7.42)
Voice coil inductance (Le) mH 0,63
Diaphragm area (Sd) cm2 (in.2) 855 (132.53)
Reference efficiency (Eta 0)   2,60%
SHIPPING INFORMATION
Net weight kg (lb) 4,1 (9)
Multipack size W x D x H mm x mm x mm (in x in x in) 438 x 438 x 204 (17.2 x 17.2 x 8)
Multipack weight kg (lb) 6,3 (13.8)
