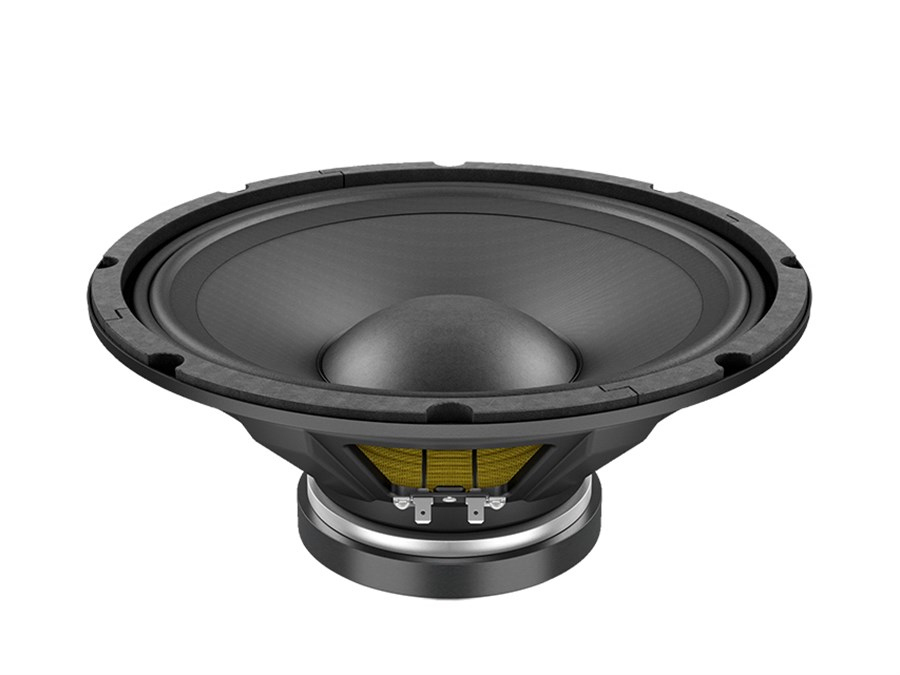

Lavoce WSF122.02 12 inç 400W Hoparlör
Lavoce WSF122.02 12 inç 400W Hoparlör
Lavoce WSF122.02 12 inç 400W Hoparlör

Lavoce WSF122.02 12 inç 400W Hoparlör

Marka : Lavoce
Fiyat : $171.60(KDV Dahil)

Lavoce WSF122.02 12 inç 400W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WSF122.02 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WSF122.02'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

2 INCH COPPER VOICE COIL
98 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 300 (12)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6
Program power W 400
AES Power rating W 200
Sensitivity dB 98
Frequency range Hz 50 ÷ 3000
Voice coil diameter mm (in) 51 (2)
Chassis material   Steel
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 140 x 60 x 17 (5.51 x 2.36 x 0.67)
Coil material   Copper
Former material   Glass Fiber
Cone material   Water Resistant Treated Paper
Surround material   Polycotton
Xmax mm (in) 4,3 (0.17)
Xmech mm (in) 8,3 (0.33)
Gap height mm (in) 8 (0.31)
Voice coil winding height mm (in) 12,6 (0.5)
Driver displacement volume l (ft³) 1,9 (0.07)
Recommended Enclosure l (ft³) 59,8 (2.11)
Recommended Tuning Hz 55
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,2
Resonance frequency (Fs) Hz 51
Moving mass (Mms) g (oz) 44,8 (1.58)
Compliance (Cms) mm/N 0,222
Force factor (Bxl) N/A 12,81
Mechanical Q-factor (Qms)   4,02
Electrical Q-factor (Qes)   0,45
Total Q-factor (Qts)   0,41
Equivalent air volume (Vas) l (ft3) 88 (3.11)
Voice coil inductance (Le) mH 0,53
Diaphragm area (Sd) cm2 (in.2) 530,9 (82.3)
Reference efficiency (Eta 0)   2,42%
Efficiency bandwidth product (EBP)  Hz 113
SHIPPING INFORMATION
Net weight kg (lb) 3,5 (7.6)
Multipack size W x D x H mm x mm x mm (in x in x in) 356 x 356 x 173 (14 x 14 x 6.8)
Multipack weight kg (lb) 4,8 (10.5)
