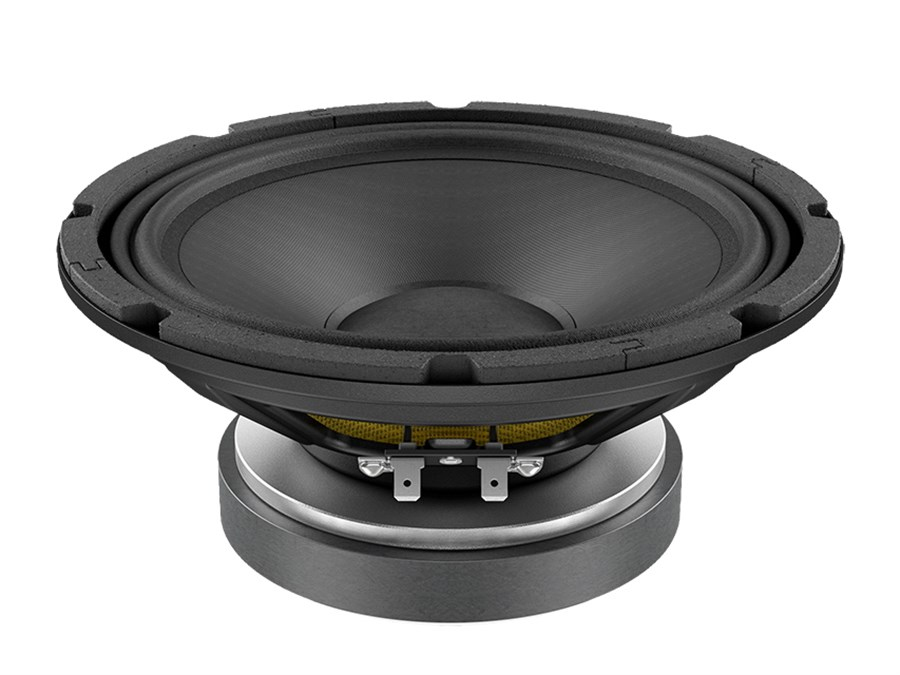

Lavoce WSF081.82 8 inç 300W Hoparlör
Lavoce WSF081.82 8 inç 300W Hoparlör
Lavoce WSF081.82 8 inç 300W Hoparlör

Lavoce WSF081.82 8 inç 300W Hoparlör

Marka : Lavoce
Fiyat : $105.60(KDV Dahil)

Lavoce WSF081.82 8 inç 300W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WSF081.82 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WSF081.82'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

1.8 INCH COPPER VOICE COIL
96 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 200 (8)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,5
Program power W 300
AES Power rating W 150
Sensitivity dB 96
Frequency range Hz 80 ÷ 5000
Voice coil diameter mm (in) 45 (1.8)
Chassis material   Steel
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 130 x 60 x 18 (5.12 x 2.36 x 0.71)
Coil material   Copper
Former material   Glass Fiber
Cone material   Water Proof Treated Paper
Surround material   Polycotton
Xmax mm (in) 4,6 (0.18)
Xmech mm (in) 7,1 (0.28)
Gap height mm (in) 6 (0.24)
Voice coil winding height mm (in) 12,2 (0.48)
Driver displacement volume l (ft³) 0,8 (0.03)
Recommended Enclosure l (ft³) 23 (0.97)
Recommended Tuning Hz 80
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,7
Resonance frequency (Fs) Hz 79
Moving mass (Mms) g (oz) 19,4 (0.68)
Compliance (Cms) mm/N 0,209
Force factor (Bxl) N/A 11,25
Mechanical Q-factor (Qms)   2,95
Electrical Q-factor (Qes)   0,43
Total Q-factor (Qts)   0,38
Equivalent air volume (Vas) l (ft3) 16,3 (0.58)
Voice coil inductance (Le) mH 0,49
Diaphragm area (Sd) cm2 (in.2) 235,1 (36.4)
Reference efficiency (Eta 0)   1,81 %
Efficiency bandwidth product (EBP) Hz 184
SHIPPING INFORMATION
Net weight kg (lb) 2,3 (5)
Multipack size W x D x H mm x mm x mm (in x in x in) 260 x 260 x 137 (10.2 x 10.2 x 5.4)
Multipack weight kg (lb) 3 (6.6)
