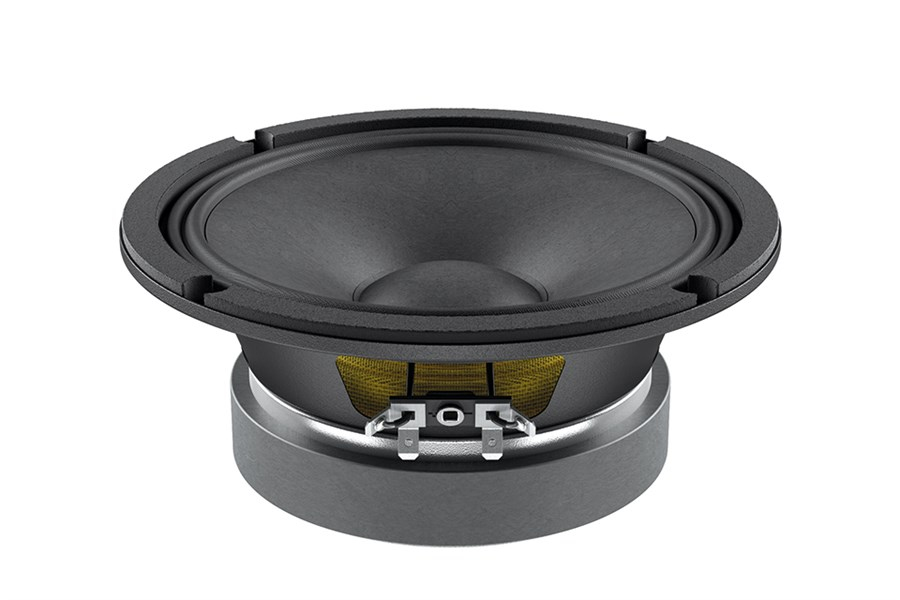

Lavoce WSF061.52 6.5 inç 250W Hoparlör
Lavoce WSF061.52 6.5 inç 250W Hoparlör
Lavoce WSF061.52 6.5 inç 250W Hoparlör

Lavoce WSF061.52 6.5 inç 250W Hoparlör

Marka : Lavoce
Fiyat : $81.60(KDV Dahil)

Lavoce WSF061.52 6.5 inç 250W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WSF061.52 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WSF061.52'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

1.5 INCH COPPER VOICE COIL
94 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 165 (6.5)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,4
Program power W 250
AES Power rating W 125
Sensitivity dB 94
Frequency range Hz 90 ÷ 5000
Voice coil diameter mm (in) 38 (1.5)
Chassis material   Steel
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 115 x 45 x 20 (4.5 x 1.77 x 0.79)
Coil material   Copper
Former material   Polyimide
Cone material   Water Proof Treated Paper
Surround material   Polycotton
Xmax mm (in) 3,8 (0.15)
Xmech mm (in) 6,3 (0.25)
Gap height mm (in) 6 (0.23)
Voice coil winding height mm (in) 10,6 (0.42)
Driver displacement volume l (ft³) 0,5 (0.02)
Recommended Enclosure l (ft³) 14,2 (0.5)
Recommended Tuning Hz 95
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,5
Resonance frequency (Fs) Hz 91
Moving mass (Mms) g (oz) 13,3 (0.47)
Compliance (Cms) mm/N 0,229
Force factor (Bxl) N/A 10,81
Mechanical Q-factor (Qms)   5,42
Electrical Q-factor (Qes)   0,36
Total Q-factor (Qts)   0,34
Equivalent air volume (Vas) l (ft3) 5,36 (019)
Voice coil inductance (Le) mH 0,42
Diaphragm area (Sd) cm2 (in.2) 128,7 (19.9)
Reference efficiency (Eta 0)   1,09 %
Efficiency bandwidth product (EBP) Hz 253
SHIPPING INFORMATION
Net weight kg (lb) 2 (4.4)
Multipack size W x D x H mm x mm x mm (in x in x in) 410 x 370 x 208 (16.1 x 14.6 x 8.2)
Multipack weight kg (lb) 19,5 (42.9)
