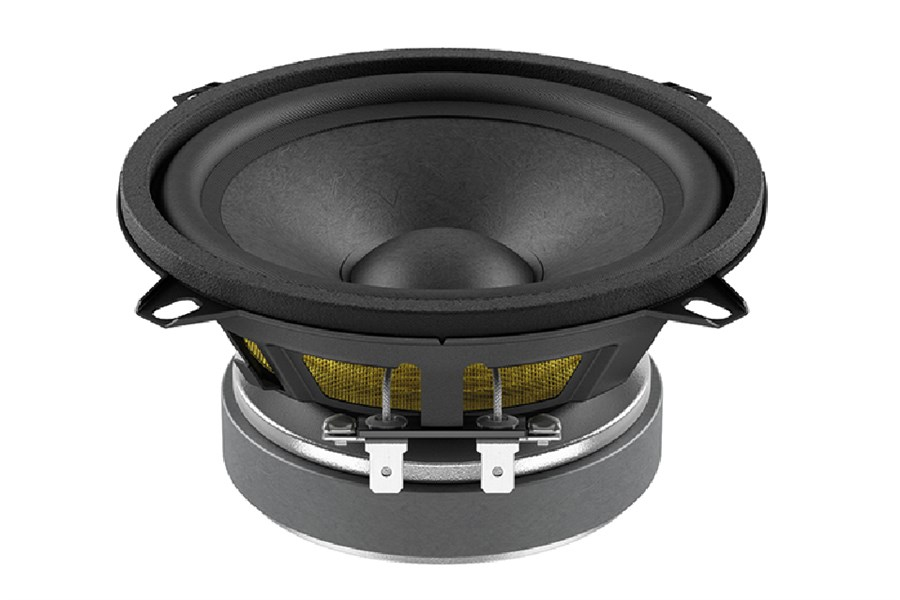

Lavoce WSF051.02 5 inç 120W Hoparlör
Lavoce WSF051.02 5 inç 120W Hoparlör
Lavoce WSF051.02 5 inç 120W Hoparlör

Lavoce WSF051.02 5 inç 120W Hoparlör

Marka : Lavoce
Fiyat : $45.60(KDV Dahil)

Lavoce WSF051.02 5 inç 120W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WSF051.02 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WSF051.02'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

1 INCH COPPER VOICE COIL
91,5 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 130 (5)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,1
Program power W 120
AES Power rating W 60
Sensitivity dB 91,5
Frequency range Hz 100 ÷ 5000
Voice coil diameter mm (in) 25 (1)
Chassis material   Steel
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 90 x 32 x 15 (3.54 x 1.26 x 0.59)
Coil material   Copper
Former material   Polyimide
Cone material   Water Resistant Treated Paper
Surround material   Rubber
Xmax mm (in) 3,1 (0.12)
Xmech mm (in) 4,9 (0.19)
Gap height mm (in) 5 (0.2)
Voice coil winding height mm (in) 8,7 (0.34)
Driver displacement volume l (ft³) 0,3 (0.01)
Recommended Enclosure l (ft³) 6,4 (0.23)
Recommended Tuning Hz 100
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,6
Resonance frequency (Fs) Hz 106
Moving mass (Mms) g (oz) 7,26 (0.25)
Compliance (Cms) mm/N 0,312
Force factor (Bxl) N/A 6,4
Mechanical Q-factor (Qms)   7,02
Electrical Q-factor (Qes)   0,66
Total Q-factor (Qts)   0,6
Equivalent air volume (Vas) l (ft3) 3,44 (0.12)
Voice coil inductance (Le) mH 0,27
Diaphragm area (Sd) cm2 (in.2) 88,25 (13.7)
Reference efficiency (Eta 0)   0,59%
Efficiency bandwidth product (EBP) Hz 161
SHIPPING INFORMATION
Net weight kg (lb) 0,9 (2.1)
Multipack size W x D x H mm x mm x mm (in x in x in) 494 x 350 x 195 (19.4 x 13.8 x 7.7)
Multipack weight kg (lb) 14,6 (32)
