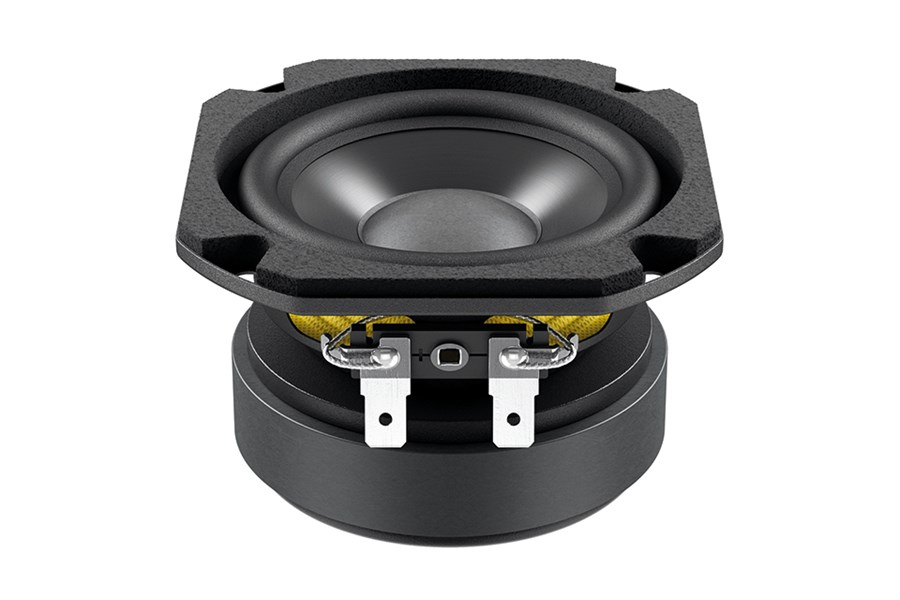

Lavoce WSF030.70 3 inç 60W Hoparlör

Marka : Lavoce
Fiyat : $32.40(KDV Dahil)

Lavoce WSF030.70 3 inç 60W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WSF030.70 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WSF030.70'u www.medumuzikmarket.com'dan satın alabilirsiniz.

0.75 INCH COPPER VOICE COIL
85,5 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 70 (3)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,9
Program power W 60
AES Power rating W 30
Sensitivity dB 85,5
Frequency range Hz 100 ÷ 2000
Voice coil diameter mm (in) 20 (0.75)
Chassis material   Steel
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 70 x 32 x 15 (2.76 x 1.26 x 0.59)
Coil material   Copper
Former material   Glass Fiber
Cone material   Aluminium
Surround material   Rubber
Xmax mm (in) 3,3 (0.13)
Xmech mm (in) 4,3 (0.17)
Gap height mm (in) 4 (0.16)
Voice coil winding height mm (in) 8,5 (0.33)
Driver displacement volume l (ft³) 0,111 (0.004)
Recommended Enclosure l (ft³) 0,068 (0.003)
Recommended Tuning Hz N/A
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 6,1
Resonance frequency (Fs) Hz 109
Moving mass (Mms) g (oz) 3,7 (0.13)
Compliance (Cms) mm/N 0,574
Force factor (Bxl) N/A 4,67
Mechanical Q-factor (Qms)   4,11
Electrical Q-factor (Qes)   0,71
Total Q-factor (Qts)   0,61
Equivalent air volume (Vas) l (ft3) 0,895 (0.03)
Voice coil inductance (Le) mH 0,35
Diaphragm area (Sd) cm2 (in.2) 33,18 (5.1)
Reference efficiency (Eta 0)   0,16 %
Efficiency bandwidth product (EBP) Hz 154
SHIPPING INFORMATION
Net weight kg (lb) 0,5 (1.1)
Multipack size W x D x H mm x mm x mm (in x in x in) 458 x 210 x 150 (18.3 x 8.3 x 5.9)
Multipack weight kg (lb) 11,4 (25.1)
