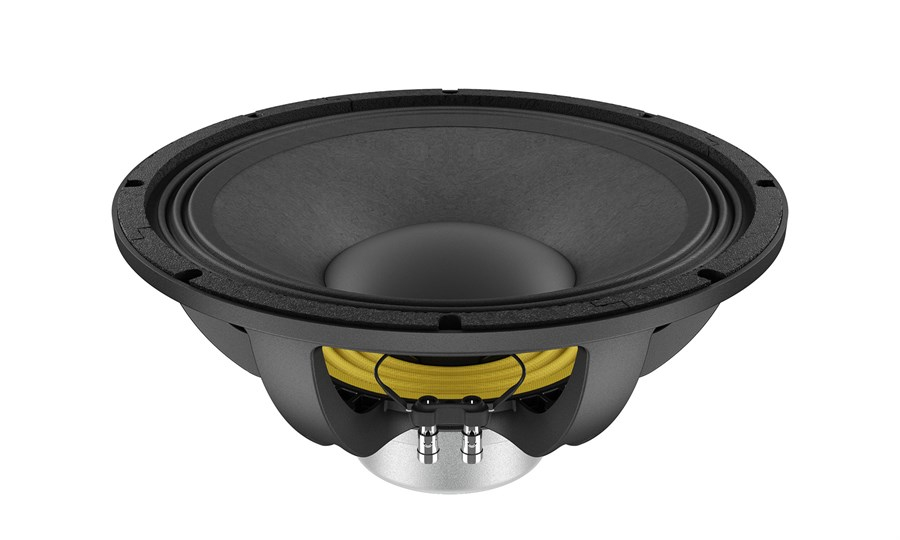

Lavoce WAN154.02 15 inç 1400W Hoparlör
Lavoce WAN154.02 15 inç 1400W Hoparlör
Lavoce WAN154.02 15 inç 1400W Hoparlör

Lavoce WAN154.02 15 inç 1400W Hoparlör

Marka : Lavoce
Fiyat : $616.80(KDV Dahil)

Lavoce WAN154.02 15 inç 1400W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WAN154.02 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WAN154.02 www.medumuzikmarket.com'dan satın alabilirsiniz.

4 INCH CCAW VOICE COIL
99 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 380 (15)
Nominal Impedance Ohm 8
Minimum impedance Ohm 7.3
Program power W 1400
AES Power rating W 700
Sensitivity dB 99
Frequency range Hz 40 ÷ 3000
Voice coil diameter mm (in) 100 (4)
Chassis material   Aluminium
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 97 x 9 (3.82 x 0.35)
Coil material   CCAW
Former material   Glass Fiber
Cone material   Water Proof Treated Paper
Surround material   Polycotton
Xmax mm (in) 7,95 (0.31)
Xmech mm (in) 14,95 (0.59)
Gap height mm (in) 12 (0.47)
Voice coil winding height mm (in) 21,9 (0.86)
Driver displacement volume l (ft³) 4 (0.14)
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,9
Resonance frequency (Fs) Hz 40
Moving mass (Mms) g (oz) 108 (3.81)
Compliance (Cms) mm/N 0,12
Force factor (Bxl) N/A 26,4
Mechanical Q-factor (Qms)   5,7
Electrical Q-factor (Qes)   0,25
Total Q-factor (Qts)   0,24
Equivalent air volume (Vas) l (ft3) 155 (5.47)
Voice coil inductance (Le) mH 1,10
Diaphragm area (Sd) cm2 (in.2) 810 (125.6)
Reference efficiency (Eta 0)   4,8 %
SHIPPING INFORMATION
Net weight kg (lb) 6,5 (14.3)
Multipack size W x D x H mm x mm x mm (in x in x in) 438 x 438 x 230 (17.2 x 17.2 x 9)
Multipack weight kg (lb) 8,7 (19.3)
