Marka : Lavoce
Fiyat : $750.00(KDV Dahil)

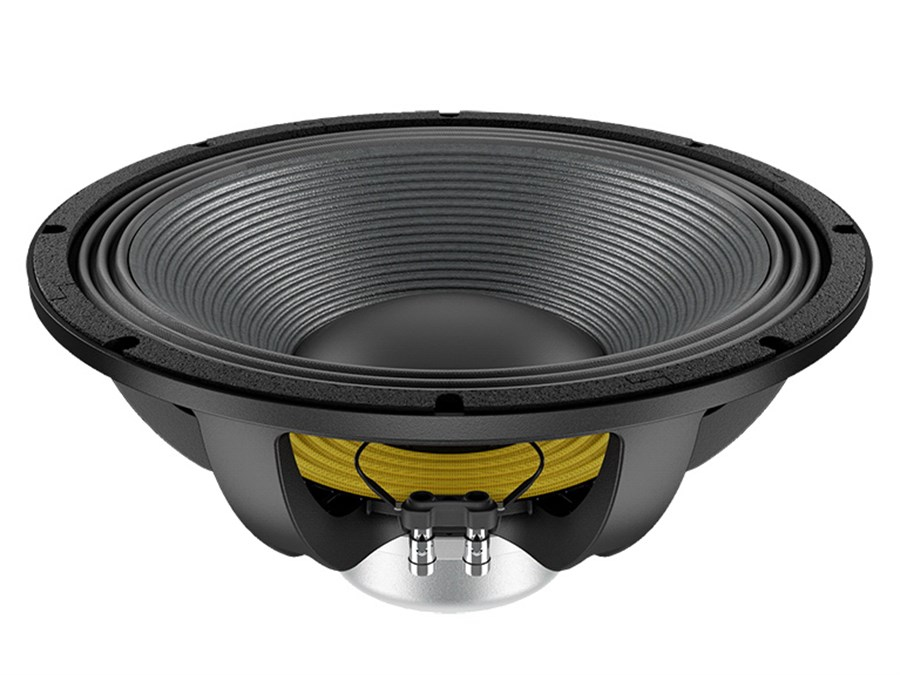

Lavoce WAN154.01 15 inç 2000W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WAN154.01 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WAN154.01'i www.medumuzikmarket.com'dan satın alabilirsiniz.

4 INCH COPPER VOICE COIL
98 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 380 (15)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6.3
Program power W 2000
AES Power rating W 1000
Sensitivity dB 98
Frequency range Hz 45 ÷ 1000
Voice coil diameter mm (in) 100 (4)
Chassis material   Aluminium
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 97 x 31 x 9 (3.82 x 1.22 x 0.35)
Coil material   Copper
Former material   Glass Fiber
Cone material Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material   Polycotton
Xmax mm (in) 8,8 (0.35)
Xmech mm (in) 17,3 (0.68)
Gap height mm (in) 14 (0.55)
Voice coil winding height mm (in) 24,5 (0.96)
Driver displacement volume l (ft³) 4,4 (0.16)
Recommended Enclosure l (ft³) 136,1 (4.81)
Recommended Tuning Hz 48
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,1
Resonance frequency (Fs) Hz 43
Moving mass (Mms) g (oz) 154,8 (5.46)
Compliance (Cms) mm/N 0,086
Force factor (Bxl) N/A 25,37
Mechanical Q-factor (Qms)   7,27
Electrical Q-factor (Qes)   0,34
Total Q-factor (Qts)   0,32
Equivalent air volume (Vas) l (ft3) 106,7 (3.77)
Voice coil inductance (Le) mH 1,69
Diaphragm area (Sd) cm2 (in.2) 934,8 (144.9)
Reference efficiency (Eta 0)   2,52 %
Efficiency bandwidth product (EBP) Hz 126
SHIPPING INFORMATION
Net weight kg (lb) 8,2 (18)
Multipack size W x D x H mm x mm x mm (in x in x in) 438 x 438 x 230 (17.2 x 17.2 x 9)
Multipack weight kg (lb) 10,4 (22.8)
